Chipboard Screws - Types, Sizes, Uses & Buying Guide

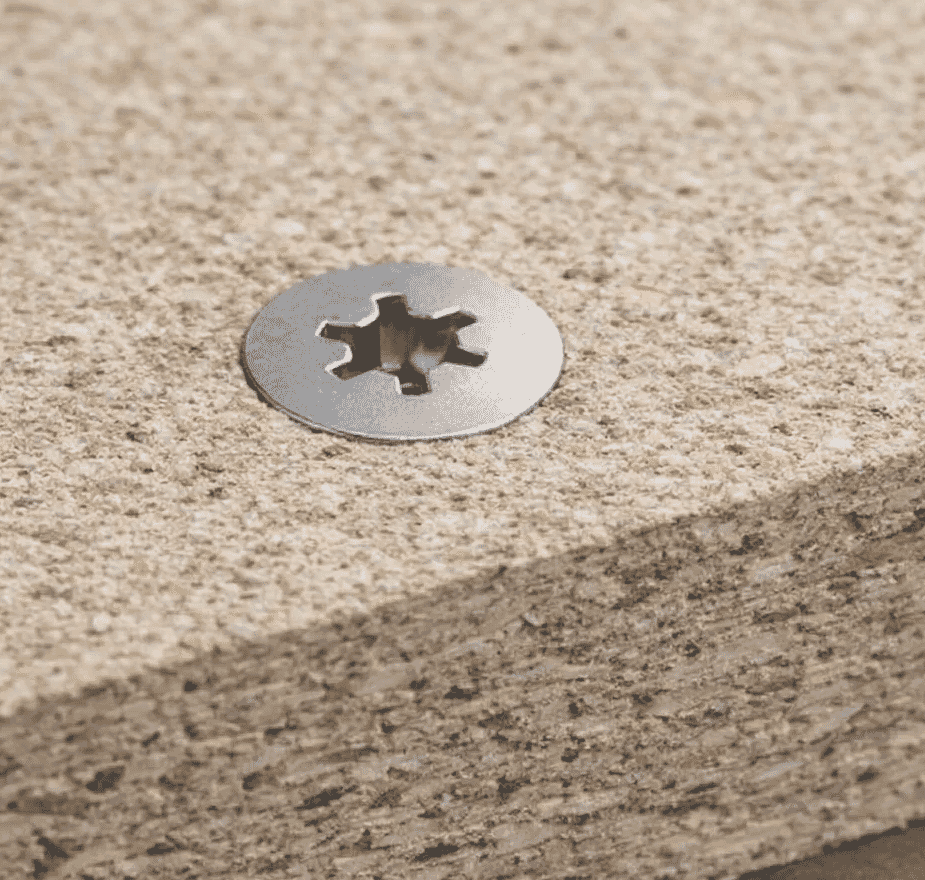

What are chipboard screws?
Chipboard screws are specially designed fasteners for timber-based materials such as chipboard, MDF, plywood and softwood. Their sharp threads and pointed tips allow for easy installation, strong holding power and reduced splitting, making them a reliable choice across construction, furniture manufacturing and general joinery applications throughout the UK.
Why use chipboard screws?
Compared to standard wood screws, chipboard screws offer improved grip, better clamping force and cleaner finishes. They are ideal for applications where strength, precision and appearance are important.
Part Threaded Countersunk
Provides strong clamping force by pulling materials tightly together. Ideal for structural joinery and timber connections.
Fully Threaded Countersunk
Offers maximum grip and pull-out strength across the entire length of the countersunk screw.
Pan Head Chipboard Screws
Designed for surface mounting where the head remains visible in chipboard, MDF and softwood.
Drive Options
Pozi Drive
Reduces cam-out and allows for fast, controlled installation using power tools.
Torx Drive
Provides superior torque transfer and grip, ideal for precision and repetitive use.
Material and Finish Options
BZP
Bright zinc plated for corrosion resistance in indoor environments.
Yellow Zinc
Improved rust resistance with a visible golden finish.
A2 Stainless Steel
Suitable for general outdoor use with good corrosion resistance.
A4 Stainless Steel
Marine grade option for harsh or coastal environments.
Chipboard Screw Size Guide
| Specification | Countersunk Chipboard Screws Part Threaded | Countersunk Chipboard Screws Fully Threaded | Pan Head Chipboard Screws |
|---|---|---|---|
| Thread Size | 3.0mm – 10.0mm | 2.5mm – 10mm | 3mm – 6mm |
| Length | 25mm – 400mm | 10mm – 140mm | 10mm – 120mm |
| Thread Length | 15mm – 240mm | — | — |
| Drive | Torx & Pozi | Pozi & Torx | Torx & Pozi |
| Material Options | Bright Zinc Plated Steel, Zinc Yellow Plated Steel, A2 & A4 Stainless Steel | Bright Zinc Plated Steel, Zinc Yellow Plated Steel, A2 & A4 Stainless Steel | Bright Zinc Plated Steel, A2 & A4 Stainless Steel |
Key Features
Sharp thread design for strong grip in timber materials
Countersunk or pan head options for different finishes
Part and fully threaded variants available
Compatible with manual and powered tools
Wide range of sizes and lengths available

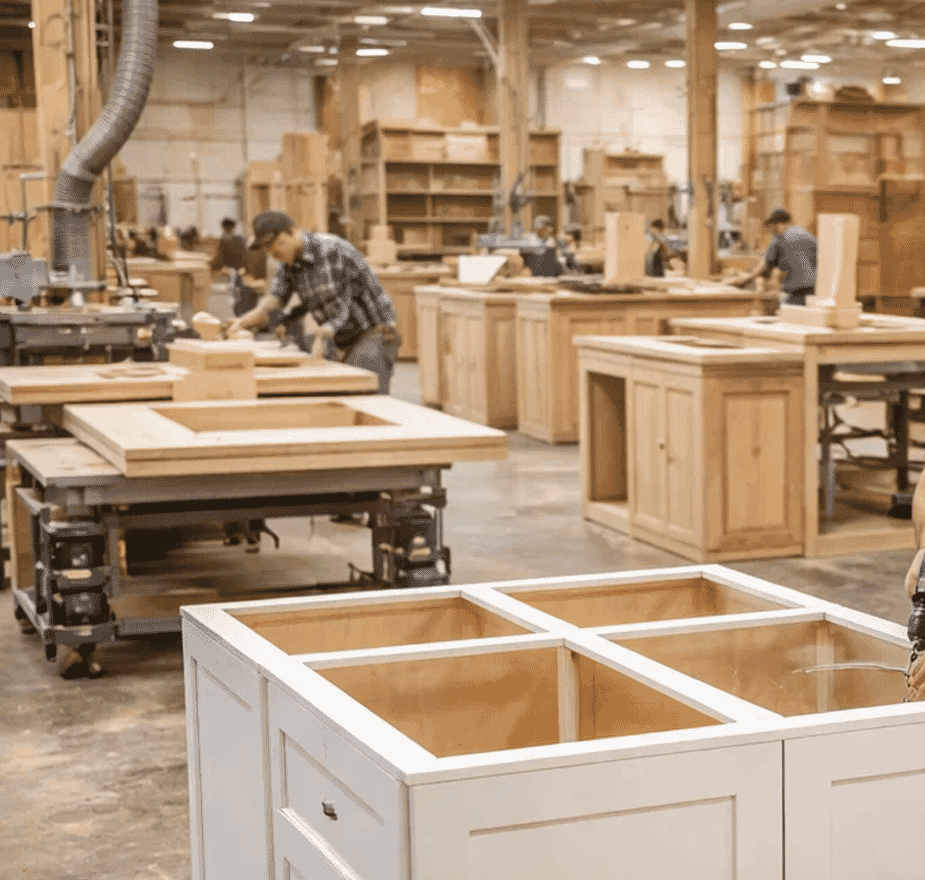

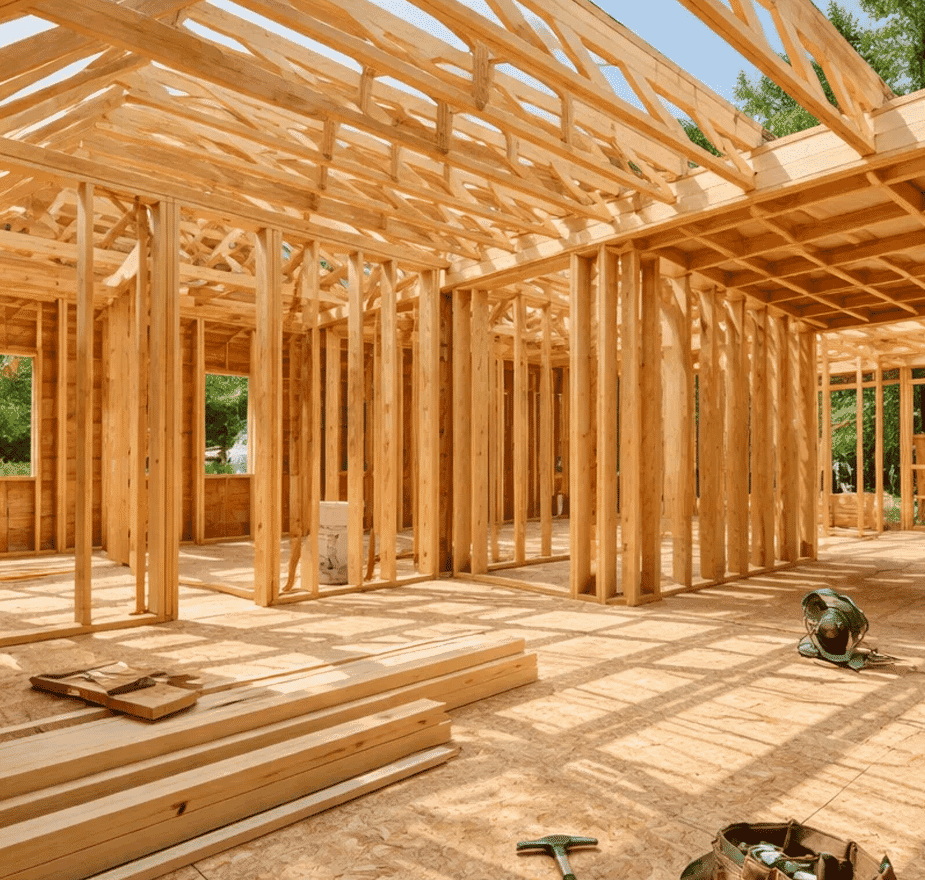

Common UK Applications
Engineer's Tip
Screw length should be 2 to 2.5 times the thickness of the material being fixed to ensure a strong, secure and long-lasting hold.
Choosing the Right Chipboard Screw
1. Choose the Right Length
As a general guide, choose a screw length around 2 to 2.5 times the width of the chipboard to achieve a secure fixing.
2. Choose the Right Thread Size
Select a thread size suitable for the board thickness and the strength needed for the application.
3. Choose the Right Head Type
Use countersunk heads for a flush finish or pan heads where the screw head will remain visible on the surface.
4. Choose the Correct Thread
Part-threaded screws are ideal for clamping materials together, while fully threaded screws provide consistent grip through the full length.
Related Parts
Wood Screws
Ideal for timber and joinery applications where strong grip and reliable fastening are required.
Self Tapping Screws
Designed to create their own thread during installation for fast and secure fixing into multiple materials.
Furniture Fixings
A practical range of fixings for furniture assembly, cabinetry and flat-pack installation applications.
Washers
Used to spread load, protect surfaces and improve the overall security of a fastening assembly.
Frequently Asked Questions
- Finer threads
- Sharper points
- Better grip in engineered wood
- Hardwood materials
- Larger diameter screws
- Precision work
