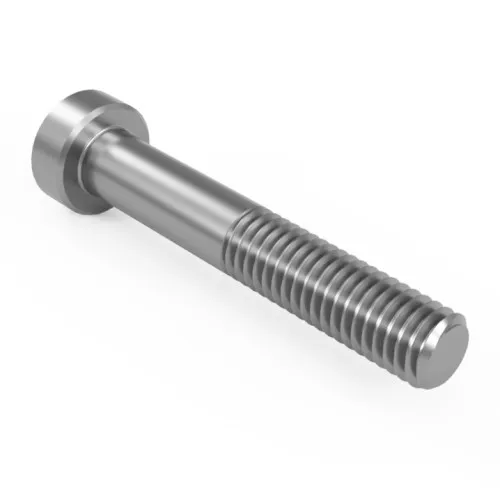

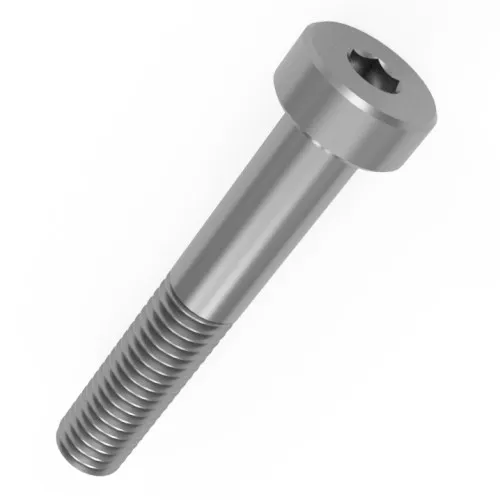

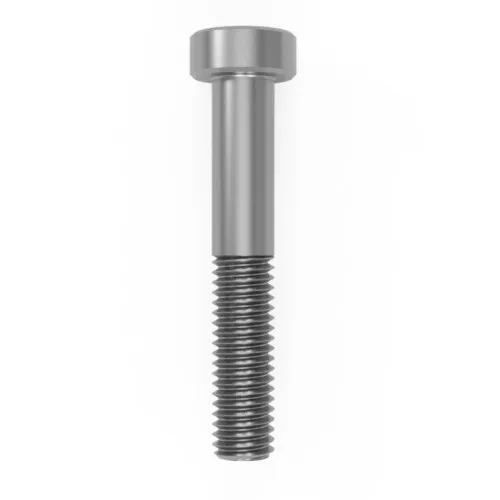

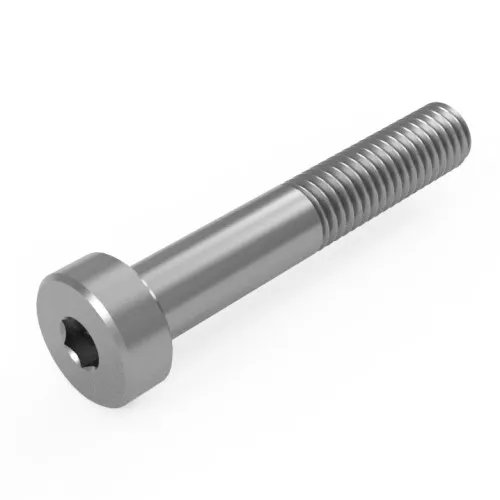

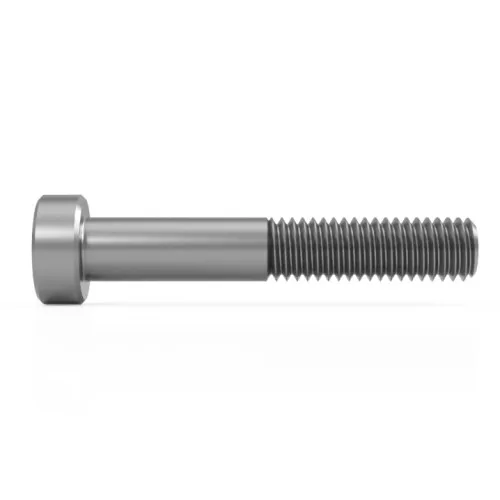

M10 x 45mm Low Head Hex Socket Cap DIN 7984 A4-70 Stainless Steel

Low Head Hex Socket Cap Screws DIN 7984 - M10 Thread Size x 45mm Length - A4-70 Stainless Steel | Vital Parts - LS C7984-M10-45-A4-70

Our Low Head Hex Socket Cap Screws, also known as Thin Allen Key Caps, are essential fasteners designed for high-strength applications where a low-profile head is required. These screws are widely used in engineering, automotive and machinery applications to securely join components while maintaining a flush and aesthetically pleasing finish.

It is manufactured to DIN 7984 standards from high-performance stainless steel, offering exceptional strength and corrosion resistance. The socket drive allows easy installation using an Allen or Hex Key, providing a secure and tight fit. Available in A2 (304) and A4 (316 Marine Grade) stainless steel, our Low Head Hex Socket Cap Screws come in metric sizes ranging from M3 x 3 to M24 x 150.

What are Low Head Hex Socket Cap Screws?

Low Head Hex Socket Cap Screws are a type of fastener featuring a cylindrical head with an internal hexagonal drive, allowing for a strong and reliable grip during installation. The "low head" design reduces the height of the screw head, making it ideal for applications where space is limited or a sleek appearance is required. These screws are particularly useful in assemblies where standard cap screws are too tall and might interfere with moving parts.

Key Features & Technical specifications :

• Low Head Hex Socket Cap Screw

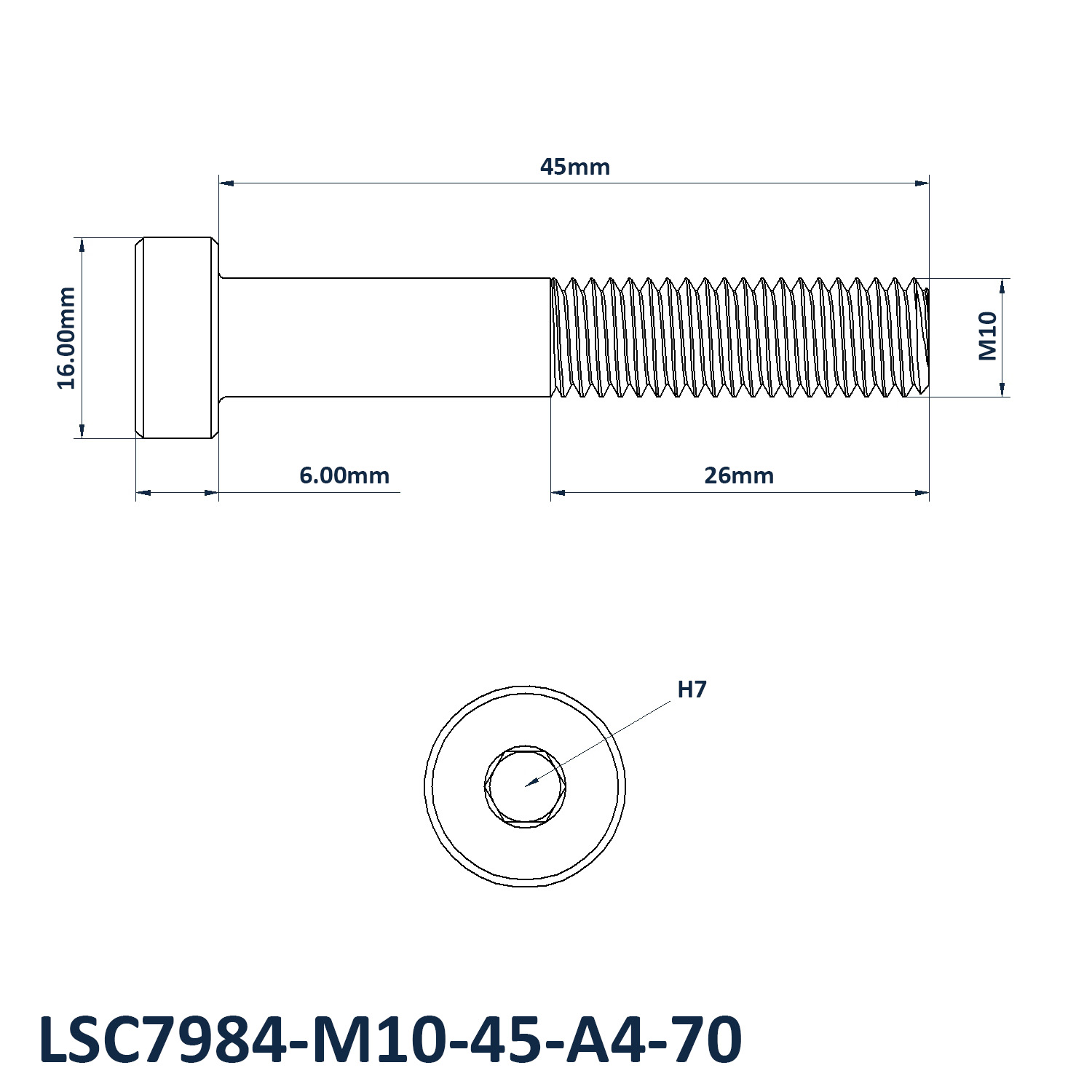

• Thread size: M10
• Head diameter: 16.00mm
• Head height: 6.00mm
• Manufactured from high-strength stainless steel
• Conforms to DIN 7984 standards for precision and durability
• Low-profile head allows for a flush finish in counterbored holes
• Internal hex drive for secure installation with Allen or Hex Keys
• Excellent resistance to corrosion, making it ideal for both indoor and outdoor use
• High tensile strength, capable of handling heavy loads and high torque applications
• Available in a range of metric sizes from M3 x 3 to M24 x 150

Applications:

Our Low Head Hex Socket Cap Screws are ideal for:

• High-torque applications where a secure hold is required
• Clamping components together in precision assemblies
• Machinery and equipment requiring a strong, reliable fastener
• Automotive, aerospace and industrial manufacturing industries
• Securing moving parts in mechanical assemblies without obstruction
• Applications where a low-profile screw head is needed for clearance or aesthetics

Benefits:

• Compact Design: The low-profile head minimizes protrusion, making it ideal for tight spaces.
• High Strength: Provides superior clamping force compared to standard screws.
• Corrosion Resistance: A2 and A4 stainless steel options ensure durability in various environments.
• Easy Installation: Hex socket drive allows for quick and efficient fastening using standard tools.
• Versatile Use: Suitable for a wide range of industrial, mechanical and engineering applications.
• Aesthetic Finish: Provides a neat, flush appearance when installed in counterbored holes.

Conclusion

Our Low Head Hex Socket Cap Screws are the perfect solution for engineers, mechanics and manufacturers who require a reliable, high-strength fastener with a minimal head profile. Whether you're working on high-torque applications, precision machinery or automotive assemblies, these screws deliver outstanding performance and durability. Available in multiple sizes and material grades, they provide flexibility to meet various project requirements. Browse our full selection or contact us at 01233 713581 for expert assistance in selecting the right fastener for your needs.
