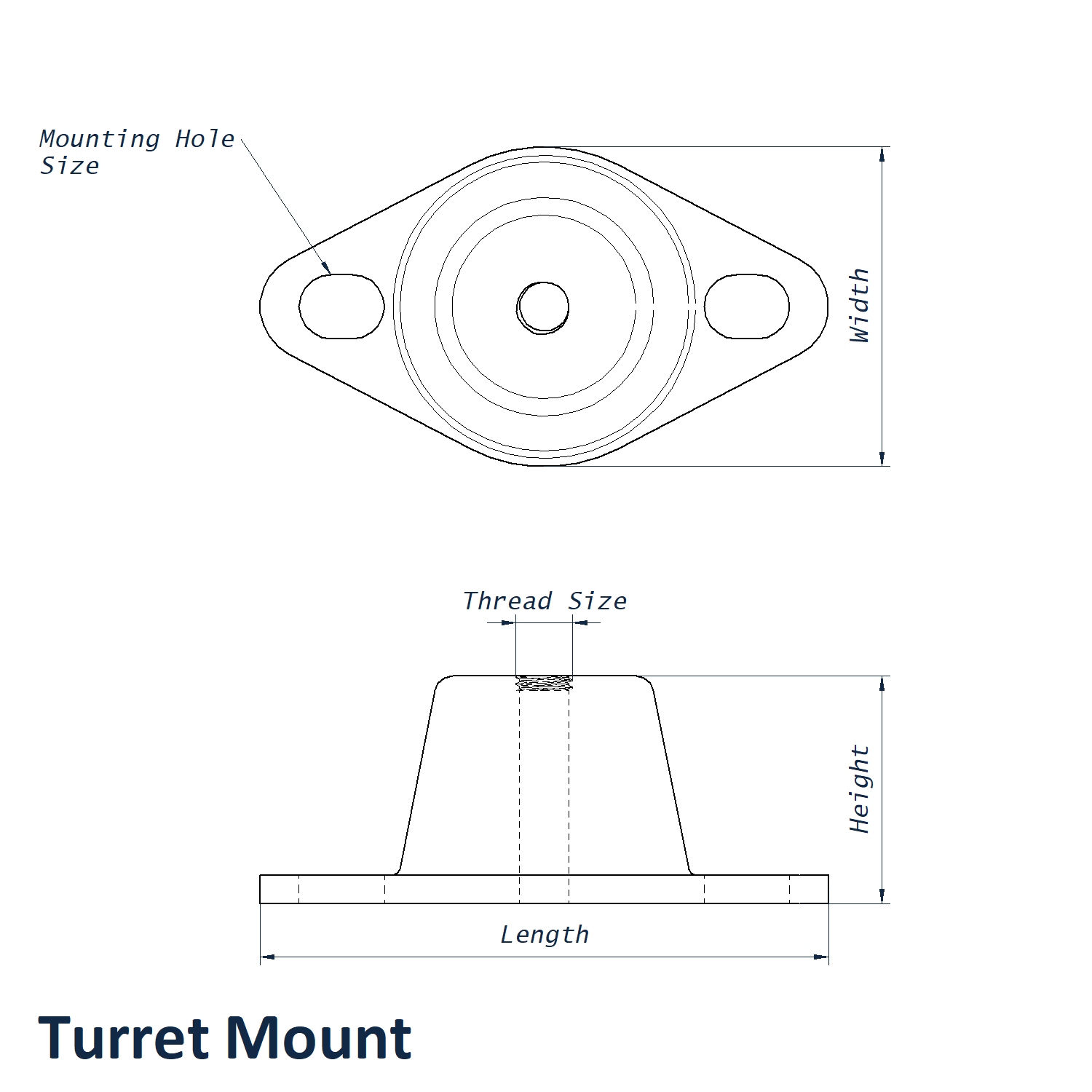

Anti Vibration Turret Mounts
Our Anti Vibration Turret Mounts are engineered from highly resilient materials including zinc plated steel and natural rubber to provide effective vibration isolation. Designed primarily for HVAC (heating, ventilation and air conditioning) applications such as static air conditioning units, these mounts help to reduce transmitted vibration and noise while extending the service life of equipment.
Each turret mount incorporates an encapsulated rubber design that protects the internal steel elements from exposure and prevents the risk of corrosion during outdoor use. With good levels of deflection, they greatly reduce the effects of vibration under both static and dynamic loads, ensuring a stable and reliable installation in demanding environments.
We stock turret mounts in a variety of mounting hole sizes and with shore hardness values from 45 to 65 to cover typical industry requirements. This range ensures suitable options for fans, pumps, compressors and other HVAC or industrial machinery. Where specialist requirements exist, we can also provide customised solutions tailored to your application.
Key Product Features:
- Manufactured from resilient zinc plated steel and natural rubber
- Encapsulated rubber design protects against corrosion
- Excellent deflection properties for vibration and noise reduction
- Suitable for HVAC, fans, pumps and compressors
Common Uses:
- As mounts in HVAC systems to minimise excess vibration
- As supports for fixed machinery and equipment
Need help with our range of Anti Vibration Turret Mounts? Call our expert team today on 01233 713581.
Frequently Asked Questions (FAQ)
- What are Anti Vibration Turret Mounts used for? They are widely used in HVAC systems, pumps, fans and compressors to absorb vibration and reduce noise transmission.
- How do Turret Mounts work? The natural rubber element deflects under load to absorb kinetic energy, while the zinc plated steel base provides strength and secure mounting.
- Can they be used outdoors? Yes. The encapsulated rubber design helps protect against corrosion, making them suitable for external HVAC and static unit installations.
- What hardness options are available? We supply turret mounts with shore hardness values between 45 and 65 to suit light, medium and heavy duty applications.
- Are custom versions available? Yes. We can supply custom material combinations, including stainless steel fittings or specialist rubbers, to meet unique application requirements.
We also offer Anti Vibration Levelling Feet as part of our wider vibration control range.
