Grub Screws

Grub screws, also known as set screws, are headless threaded fasteners used to secure components onto shafts, rods and other threaded assemblies. Their compact design allows the screw to sit flush or below the surface, making them widely used in machinery, engineering, automotive and manufacturing applications.

Our range of grub screws includes socket and slotted designs with flat point, cone point, cup point and dog point options. Available in a selection of metric thread sizes and DIN standards, including stainless steel options for applications requiring strength and corrosion resistance.

Different point styles provide different levels of grip and contact with the mating component. Cup point grub screws are commonly used for general-purpose fastening, while cone, flat and dog point designs suit applications requiring different levels of location, holding force or surface contact.

What style of Stainless Steel grub screw do I need? (Grub Screw Types)

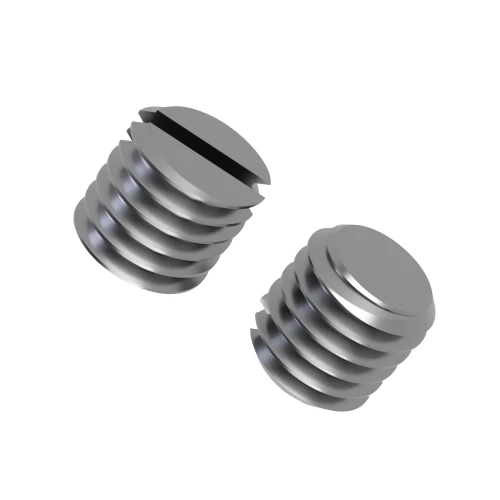

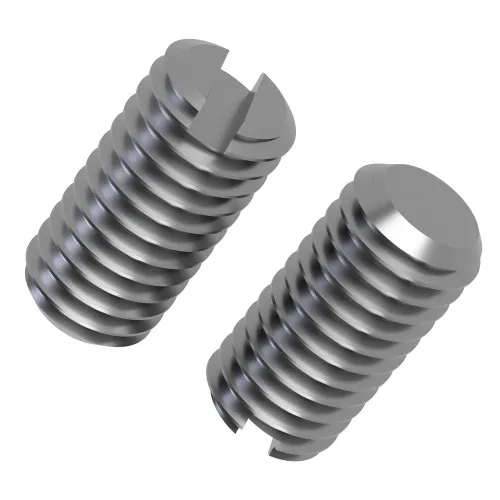

Flat End Grub Screws are used when a large pressure area is needed and are commonly used when applying pressure onto a flat surface.

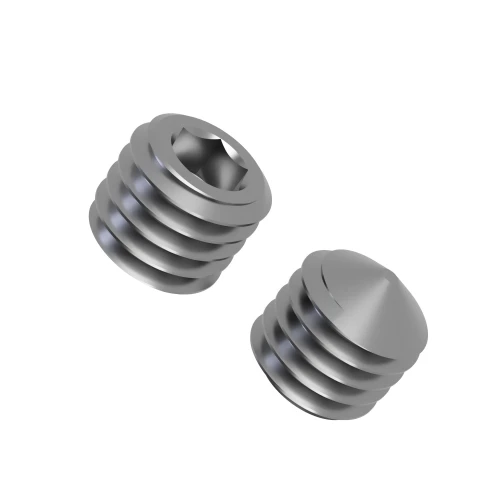

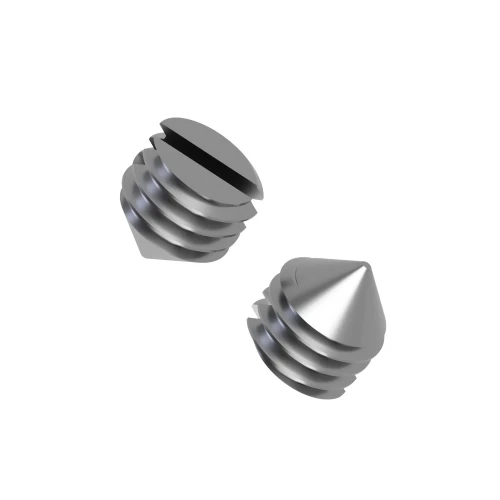

Cone Point Grub Screws taper down to a single point and can create an indentation in softer materials, providing improved holding power.

Set Grub Screws apply pressure around the rim of the screw rather than at a single point. For applications requiring a slotted drive, these provide a secure fastening solution for locating and securing shafts.

Dog Point Grub Screws have a narrower shaft protruding from the end of the screw which can be used as a spindle or pivot, allowing components to rotate around them. Alternatively, they can also be used as temporary locators instead of dowel pins.

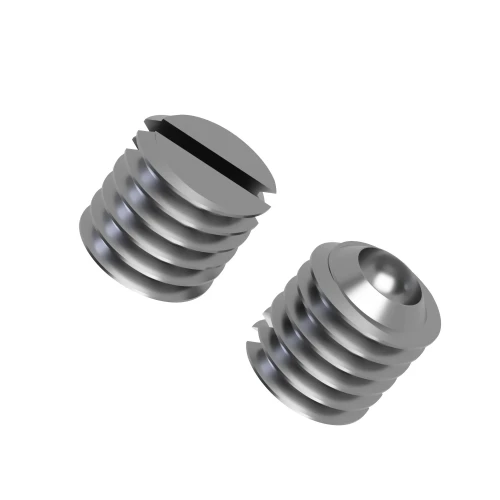

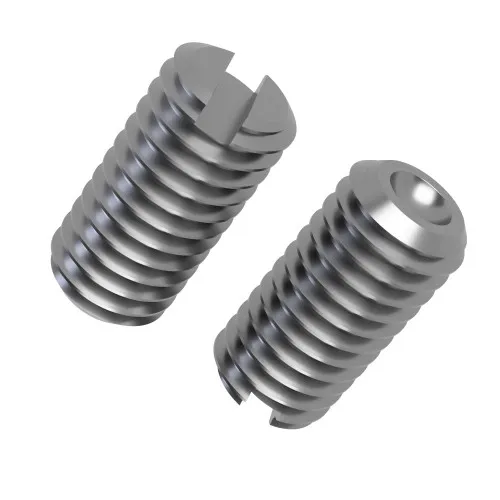

Cup Point Grub Screws provide a similar function to cone point screws, but pressure is applied around the rim of the screw rather than a single point. These are particularly useful when holding rounded objects in place.

Need Stainless Steel Grub Screws for Your Application?

Whether you are securing gears and pulleys to shafts, locating components or need a discreet headless fixing for machinery and assemblies, our team can help you select the correct Stainless Steel Grub Screws. With A2 and A4 stainless steel options and Flat End, Cone Point, Dog Point and Cup Point styles available, we can help match the right thread size, length and point type to your application.

Call 01233 713 581 for technical guidance, product samples or volume quotations. Manufacturers, engineers, fabricators and trade customers with regular fastener requirements can also apply for a Vital Parts Business Account for trade pricing, credit account options and dedicated account support.

read more...

Frequently Asked Questions

A grub screw is a headless threaded fastener used to secure one component against another, commonly onto a shaft, spindle or rod. Also known as a set screw, it is typically driven using a hex socket or slotted drive and can sit flush with or below the surface of the component.

Stainless grub screws are typically differentiated by the shape of the drive that is present on the head of the screw. The most common variety is the hex socket grub screw, this can be tightened using a hex key or Allen key. We also sell a slotted grub screws, also known as flat head grub screws. These are designed to be tightened using a flat-blade screwdriver.

Stainless steel grub screws are named after their shape, which loosely resembles that of a grub insect. While this has become the most commonly used term to describe them in the UK markets, they are also often called stainless steel set screws. Additionally, like most products in the fastener category, their DIN standard numbers are used to refer to grub screws. In the case of our product offering, these would be din 913 and din914. The drive or recess that is present on the head of the grub screw can be another way for customers to explain their requirements, with Allen key grub screws being another popular search term.

One potential disadvantage of using grub screws is that once they have been fully installed into an application they can be difficult to remove. Although stainless steel offers an excellent combination of strength, durability and corrosion resistance, a disadvantage can be found in the increased cost of this premium material. Stainless steel will also conduct electricity, though to a lesser extent than metals such as copper and aluminium, this could be undesirable in some electrical applications. Finally, stainless steel is not as strong as alloy steel and stainless steel grub screws may provide insufficient torque and clamping force if used in high-torque applications.

Stainless grub screws are primarily used in applications where space is restrained. These are often scenarios where it isn't possible to use a standard bolt or screw due the protrusion of its head. In contrast to this, the stainless steel grub screw will provide a flush finish to the application's surface. For this reason, they are also the preferred fastening solution for any applications involving rotation. This is due to grub screws having no protrusions that could catch against objects as the application rotates. Some specific examples of common applications that require set screws include the assembly of door handles and the installation of knobs and levers. You may see grub screws being used in various automotive components and fastening transmissions, engines and suspension systems together in a car. Stainless steel grub screws are also a common choice for the installation of furniture and cabinetry. They are favoured for their ability to secure handles, knobs and decorative elements in an aesthetically pleasing manner, without exposed bolt or screw heads.

Insert the correct size hex key (Allen key) into the grub screw and turn it clockwise until it is securely tightened against the shaft or surface. Do not overtighten, as this can strip the thread or damage the component.

Grub screws work by tightening directly against a shaft or surface to hold a component in place. When turned with a hex key, the threaded body advances and applies pressure, creating friction that prevents movement or rotation.

Apply penetrating oil and allow it to soak in, then use the correct size hex key to turn it anti-clockwise. If it is still stuck, gently apply heat to expand the surrounding metal or use a screw extractor if the hex socket is damaged.

Measure the thread diameter (for example M6 grub screw), then measure the overall length from end to end, as grub screws are fully threaded with no head. Use calipers for accuracy and confirm the thread pitch if needed.
