Slotted Countersunk Nylon Screw - THUM0528
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 0 - 1 | £0.11 | £0.13 |
| 2 - 99 | £0.11 | £0.13 |
| 100 - 499 | £0.09 | £0.11 |
| 500 - 999 | £0.08 | £0.10 |
| 1000 - 4999 | £0.06 | £0.07 |
| 5000 + | £0.05 | £0.06 |
Product Stock
| Product Specifications | THUM0528 |
|---|---|
| Thread Size | M3 |
| Thread Length | 6mm |
| Head Diameter | 5.6mm |
| Head Height | 1.65mm |
| Standard | DIN 963 |
| Colour | Natural |
| Material | Nylon |
Same Day Dispatch Available
Order by 4pm (UK) for same day dispatch (Monday – Thursday, 2pm Friday). Next Day or Standard Delivery available via DHL or Royal Mail.
Product Description

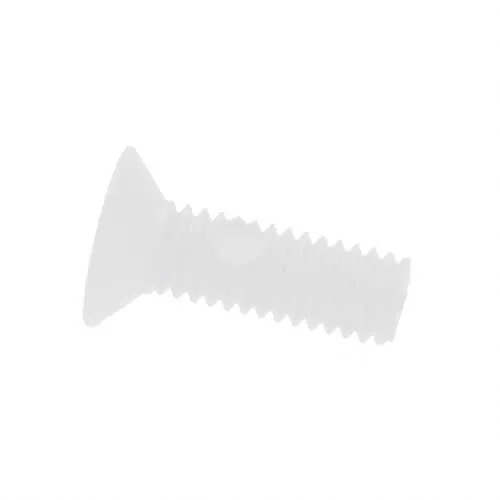

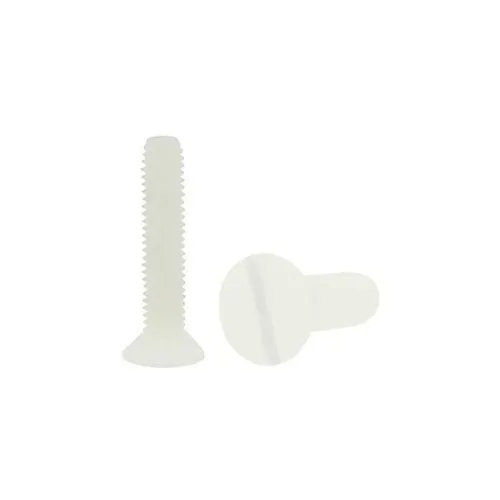

M3 Slotted Countersunk Nylon Screws DIN 963 – 6mm Thread Length – 5.6mm Head Diameter | Vital Parts – THUM0528
Our Slotted Countersunk Screws are moulded from lightweight nylon to the DIN 963 specification. The slotted head accepts a flat screwdriver or can be turned carefully by hand which makes these one of the most cost efficient and widely used screw types for a flush fitting finish.

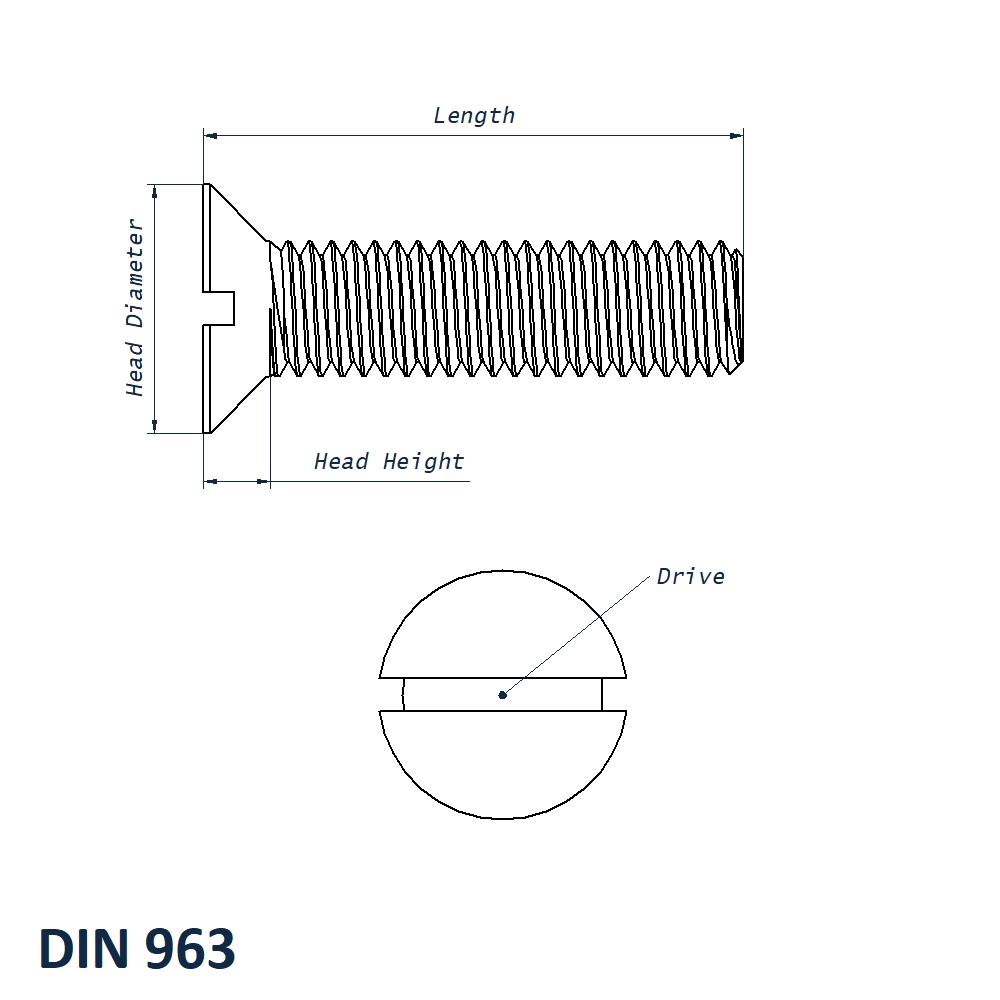

What are DIN 963 slotted countersunk nylon screws?
DIN 963 screws feature a single slot drive with a countersunk head that sits level with the surface after installation. Nylon provides electrical insulation, low weight and rust proof performance which is ideal where metal fasteners may corrode or add unnecessary mass.
Key features
- Manufactured from quality nylon to DIN 963
- Slotted head for flat screwdriver drive
- Countersunk head for a neat flush finish
- Lightweight, non conductive and rust proof
- Supplied in a clean natural finish
Typical applications
- Weight sensitive assemblies and portable equipment
- Electrical and electronic builds requiring insulation
- Laboratory, chemical and damp environments
- General purpose fixings where a flush surface is needed
Technical specifications
- Thread Size: M3
- Thread Length: 6mm
- Head Diameter: 5.6mm
- Head Height: 1.65mm
- Standard: DIN 963
- Material: Nylon thermoplastic
- Head type: Countersunk, slotted
- Drive: Flat screwdriver
- Lengths: Wide range available
- Finish: Natural (colours on request)
- Properties: Non conductive, corrosion resistant, lightweight
Benefits
- Flush fit protects against snagging and improves aesthetics
- Corrosion resistance for long service life
- Electrical insulation without extra sleeves or washers
- Easy installation with common flat screwdrivers
Why buy from Vital Parts?
We stock a broad range of DIN 963 nylon screws with consistent quality to simplify specification and assembly.
- Large choice of sizes and lengths
- Fast UK delivery
- Advice on sizing and material selection
If you need a specific colour, length or bulk quantity call our expert team on 01233 713581.
