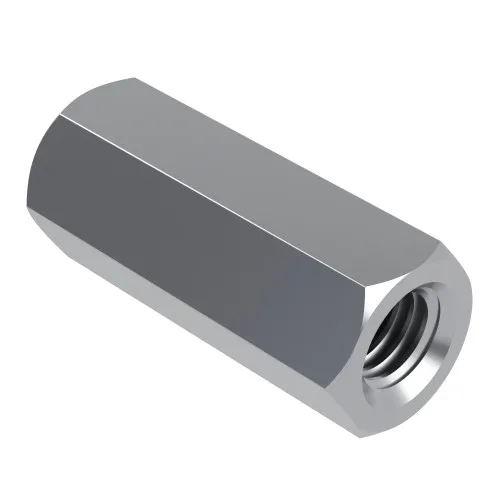

M2.5 x 30mm Hexagonal Female/Female Standoff, 5mm Flats - Zinc Plated Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 2 - 99 | £0.59 | £0.71 |
| 100 - 249 | £0.52 | £0.62 |
| 250 - 499 | £0.44 | £0.53 |
| 500 - 999 | £0.37 | £0.44 |
| 1000 - 9999 | £0.30 | £0.36 |
| 10000 + | £0.26 | £0.31 |
£0.71 / each
Product Specification
| Thread Size | M2.5 |
| Height | 30mm |
| Material | Steel BZP |
| Across Flats | 5.0mm |
| Female Thread Length | 10mm |
Frequently Bought Together
Total Price: £0.00
M2.5 x 30mm Female/Female Hex Standoff | 5mm A/F | 10mm Female Thread Length | Zinc Plated Steel
Providing 30mm of separation for general engineering assemblies requiring controlled component spacing, this M2.5 hex spacer gives a practical way to mount boards, panels or components above a base surface. The 5.0mm hex body provides tool access while the female threaded ends accept compatible metric fasteners. This version is not listed as through-threaded. A defined female thread length is specified for the product, so the description does not treat the bore as a continuous through thread. The zinc plated steel construction provides a robust option for general indoor and suitably protected mechanical assemblies.
What Are Female/Female Hex Standoffs?
Female Threaded Spacers are commonly used to create clearance between electronic or mechanical components. The fixed body height determines the spacing while the internal threads allow compatible fasteners to connect adjoining parts from both ends.
Common Applications
- Automation Equipment: Separates controllers, interfaces and internal panels while providing threaded fixing points.
- Electrical Enclosures: Supports boards and mounting plates away from enclosure walls to create clearance for components and wiring.
- Machine Panels: Provides controlled separation between panels, covers and mounted equipment in suitable machinery.
- Prototype Builds: Allows components to be positioned and repositioned during development of electronic or mechanical assemblies.

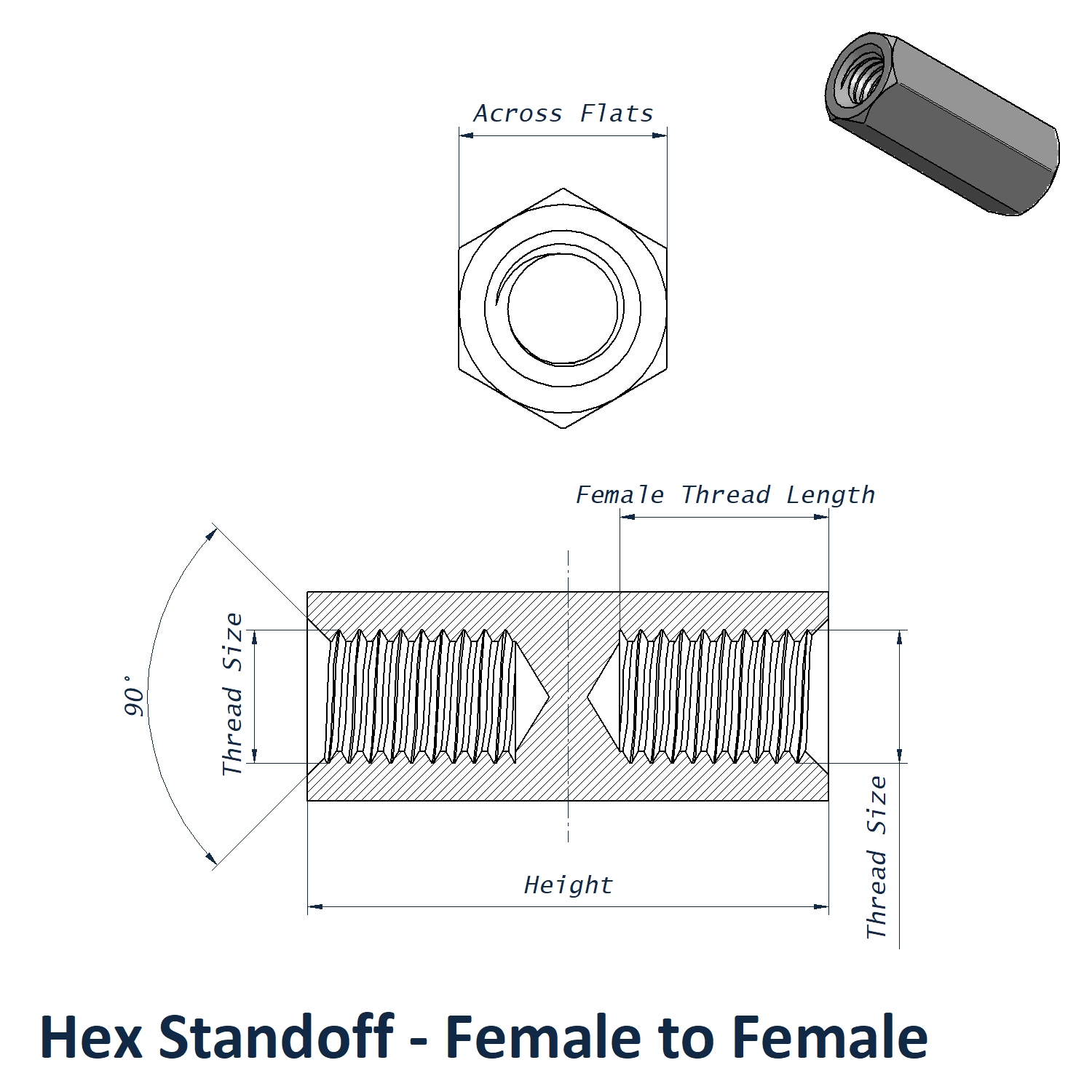

M2.5 x 30mm Female/Female Hex Standoff Dimensions
- Thread Size: M2.5
- Height: 30mm
- Across Flats: 5.0mm
- Female Thread Length: 10mm
- Material: Steel BZP
Key Benefits
- Suitable for PCB, enclosure, instrumentation and general engineering assemblies.
- M2.5 female thread size accepts compatible metric screws or bolts.
- 10mm female thread specification identifies whether the product is through-threaded or uses a defined thread length.
- Female threaded fixing points at both ends support reusable mechanical assembly.
Browse the complete Threaded Hex Standoffs Female/Female range for other metric threads, spacer heights and materials. We can help you choose the correct option on 01233 713581.
