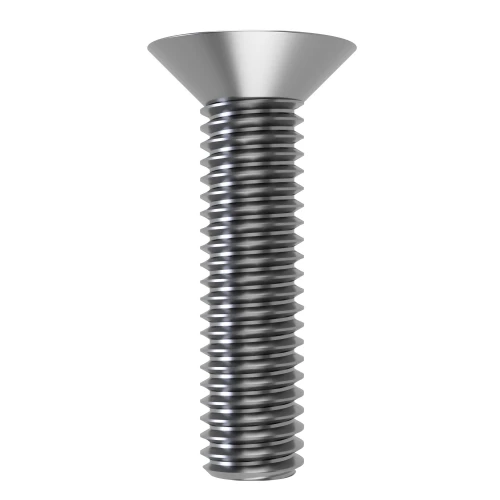

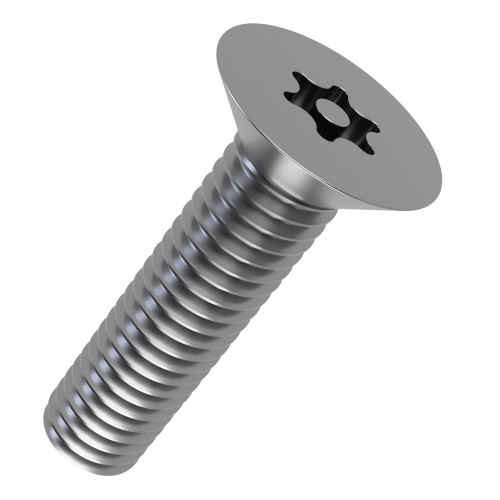

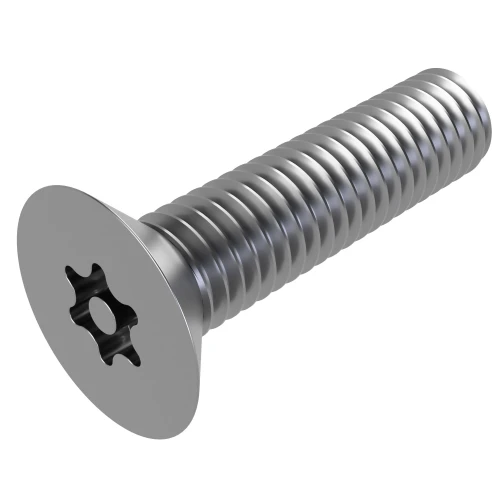

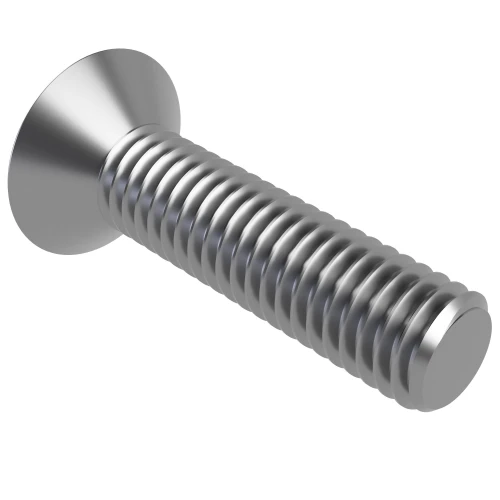

M6 x 50mm Pin Torx Countersunk Screw DIN 7991 A2 Stainless Steel

M6 x 50mm - Pin Torx Countersunk Screws DIN 7991- A2 Stainless Steel | Vital Parts - PTCS7991-M6-50-A2

Our Pin Torx Countersunk Screws, also known as Security Hexalobular or Security Torx Countersunk Screws, provide a high-strength, tamper-resistant fastening solution for applications requiring enhanced security. Manufactured to DIN 7991 standards from premium materials, these screws offer excellent resistance to corrosion and mechanical stress, ensuring durability in demanding environments.

The security pin within the Torx drive prevents the use of standard Torx tools, requiring a specialized security Torx driver for installation and removal. This makes them ideal for applications where unauthorized access must be restricted. The countersunk head allows the screw to sit flush within a pre-countersunk recess, reducing the risk of snagging wires, fabrics, or moving parts.

What Are Pin Torx Countersunk Screws?

Pin Torx Countersunk Screws are precision-engineered security fasteners designed to prevent tampering and unauthorized removal. They feature a six-lobe Torx (hexalobular) drive with a central security pin, which requires a corresponding security Torx driver. This design makes them an essential component in public-facing and high-security applications.

The countersunk head provides a smooth and flush finish, improving both aesthetics and functionality. These screws are often used with washers and nuts to securely join multiple components while maintaining a tamper-resistant fastening solution.

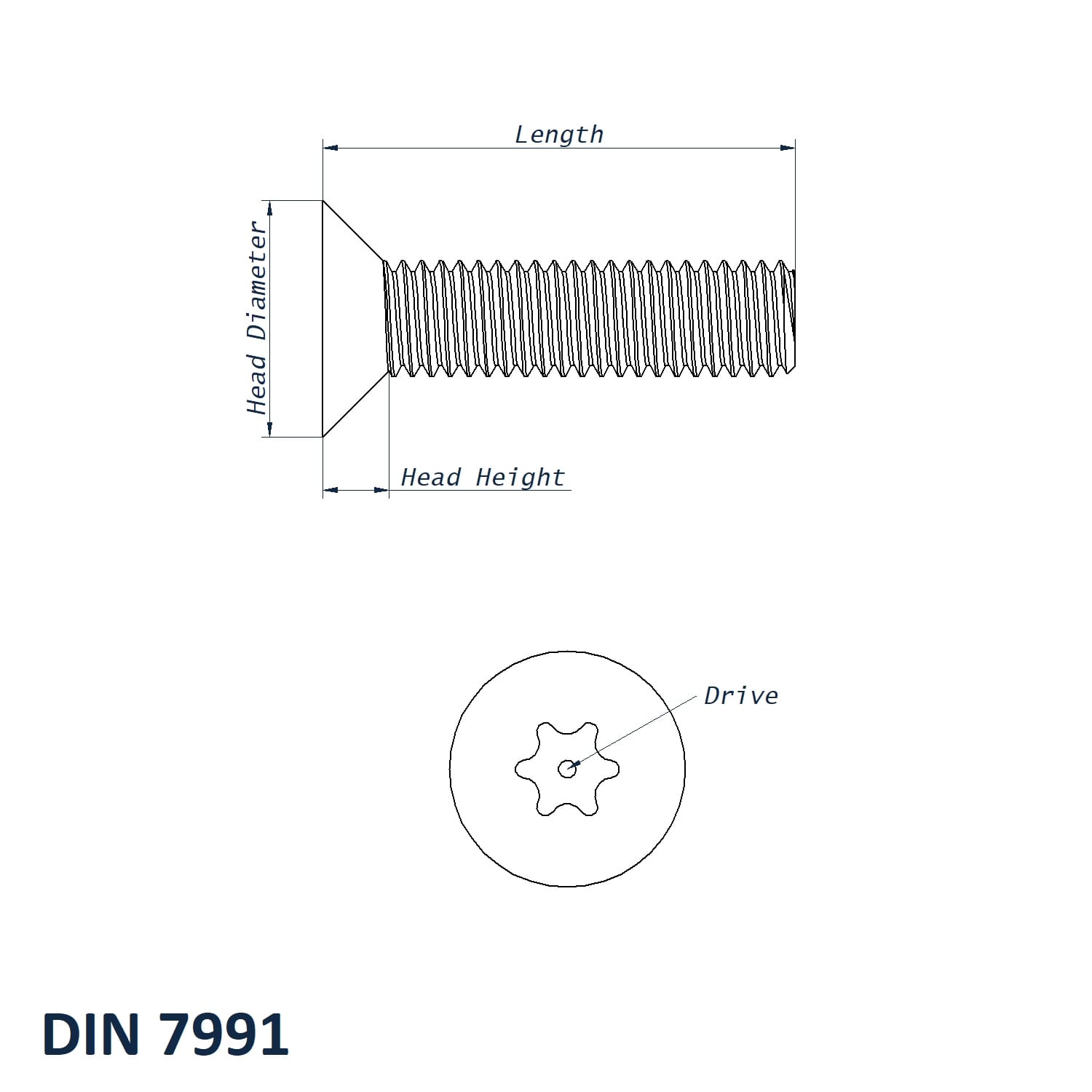

Key Features & Technical Specifications:

• Thread Size -M6
• Length -50mm
• Pitch -1mm
• Head Diameter -12.00mm
• Head Height -3.3mm
• Drive -Security T30
• Manufactured to DIN 7991 standards for precision and reliability
• Pin Torx (hexalobular) security drive prevents unauthorized access
• Flush countersunk head design for a seamless finish
• High-strength material ensures durability under medium to heavy loads
• Available in metric sizes from M3 x 6mm to M12 x 100mm

Applications:

Our Pin Torx Countersunk Screws are ideal for:

• Public infrastructure and street furniture
• Security enclosures and access panels
• Automotive and aerospace industries requiring tamper-resistant fasteners
• Electronics and data cabinets for anti-tamper protection
• Retail displays and point-of-sale installations
• Industrial and construction projects requiring secure fastenings

Benefits:

• Enhanced security with a specialized pin Torx drive
• Flush installation prevents snagging and enhances aesthetics
• High-torque capacity for secure and durable fastening
• Corrosion-resistant materials ensure long-lasting durability
• Reduces risk of unauthorized removal or tampering

Our Pin Torx Countersunk Screws are an excellent choice for applications requiring a strong, secure and tamper-resistant fastening solution. With their durable construction and specialized security design, these screws provide a reliable and long-lasting fix in environments where unauthorized removal is a concern. Browse our full selection of sizes and materials, or contact our team at 01233 713581 for expert advice on selecting the right fasteners for your specific needs.

Frequently Asked Questions (FAQ)

• What is the difference between A2 and A4 stainless steel? A2 stainless steel is suitable for most indoor and outdoor uses while A4 stainless steel offers improved resistance to chlorides and harsh conditions. Read more here.
• What is a Torx drive? A Torx drive is a star-shaped recess designed to provide excellent torque transfer and reduced risk of cam-out compared to traditional screw drives. Learn more here.
• What are security fasteners? For a detailed overview of different tamper-resistant screws and their applications, read our Complete Guide to Security Fasteners.
