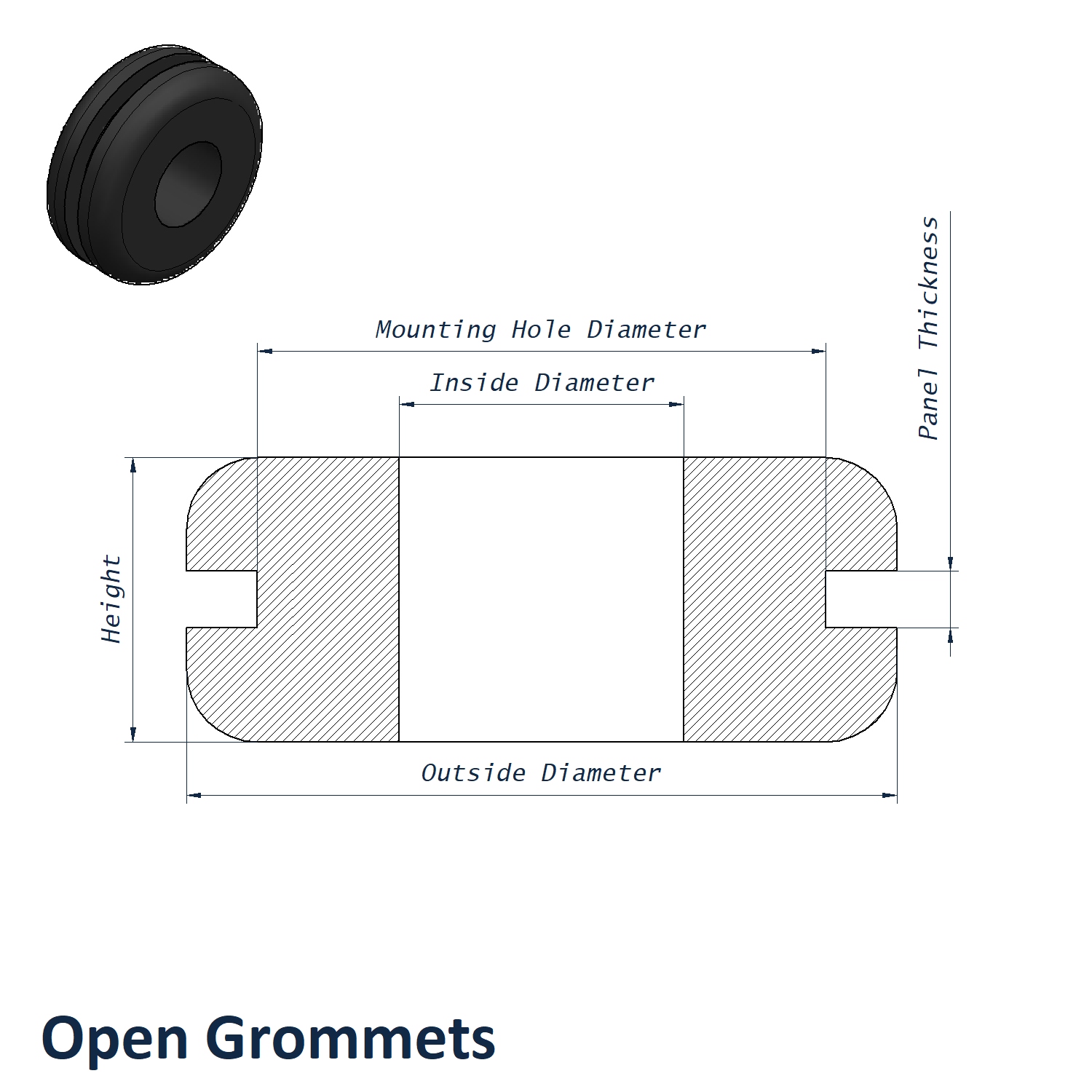

Open Rubber Grommets

Open rubber grommets, also known as open grommets or cable grommets, are essential protective components designed to safeguard cables and wires passing through panel holes and metal enclosures. These snap-in grommets feature a central opening that allows cables to be pushed straight through, providing superior protection against sharp edges, chafing, vibration, and environmental damage. Widely used across UK electrical, automotive, marine, construction, and telecommunications industries, open rubber grommets extend cable life whilst ensuring compliance with British electrical guidelines and building regulations. The primary benefit lies in their ability to provide strain relief, preventing pull-through damage while maintaining professional installations that resist dust, moisture, and mechanical stress. Available in multiple high-grade materials including EPDM, PVC, and SBR rubber compounds, these grommets accommodate various operating conditions and environmental requirements, making them indispensable for reliable cable management solutions.

Available Materials & Style Options:

• EPDM rubber grommets - excellent temperature resistance (-40°C to +125°C) with superior weather and UV resistance
• PVC grommets - flame retardant properties ideal for electrical panel applications with cost-effective durability
• SBR rubber grommets - cost-effective general-purpose solution offering superior strength and abrasion resistance
• TPE (Thermoplastic Elastomer) - environmentally friendly alternative to PVC with wider temperature range (-40°C to +135°C)
• Snap-in open design with bevelled edges for quick, tool-free installation requiring pressure from one side only
• Size range accommodating cable widths from 5mm to 63.5mm for panel thicknesses between 1mm and 9.5mm
• Black colour as standard providing professional appearance across all applications

Key Features & Benefits:

• Superior cable protection from sharp metal edges, preventing cuts, chafing, and abrasion damage to extend cable lifespan
• Strain relief properties that grip cables securely, preventing pull-through damage and maintaining connection integrity
• Tool-free snap-in installation design enabling rapid fitting from one side without requiring additional fixings or adhesives
• Environmental sealing against dust, moisture, and debris ingress whilst allowing easy cable insertion and removal
• Vibration dampening capabilities reducing mechanical stress on electrical connections and sensitive equipment
• Temperature resistance ranging from -40°C to +135°C depending on material specification for harsh environment applications
• Chemical resistance to oils, greases, hydraulic fluids, and automotive chemicals ensuring long-term performance
• Compliance with UK electrical guidelines and building regulations providing peace of mind for professional installations
• Flame retardant properties in PVC variants meeting safety requirements for electrical enclosures and control panels

Common UK Use Cases:

• Electrical panel installations protecting mains and control cables through metal distribution boards, consumer units, and control enclosures
• Automotive applications including engine bay wiring protection, dashboard cable routing, and under-bonnet electrical installations
• Marine electrical systems safeguarding navigation equipment, bilge pump wiring, and boat instrumentation against saltwater corrosion
• Industrial machinery and manufacturing equipment where cables pass through vibrating panels, motor housings, and automated control systems
• Construction industry cable routing through structural steelwork, commercial building installations, and residential electrical systems
• Telecommunications and data centre applications protecting fibre optic cables, network infrastructure, and server room installations
