Snap Lock Pins
Our Snap Lock Pins are a simple and effective push-fit fastening solution, designed to securely join panels and lightweight components without the need for screws, bolts, or tools. Ideal for production environments and on-site installations, these fasteners offer a quick, clean and professional fixing method across a wide range of applications.
Manufactured from high-quality PA66 (Nylon 66), these pins provide excellent strength, durability and resistance to wear, making them suitable for both commercial and industrial use.
How to use and install Snap Lock Pins

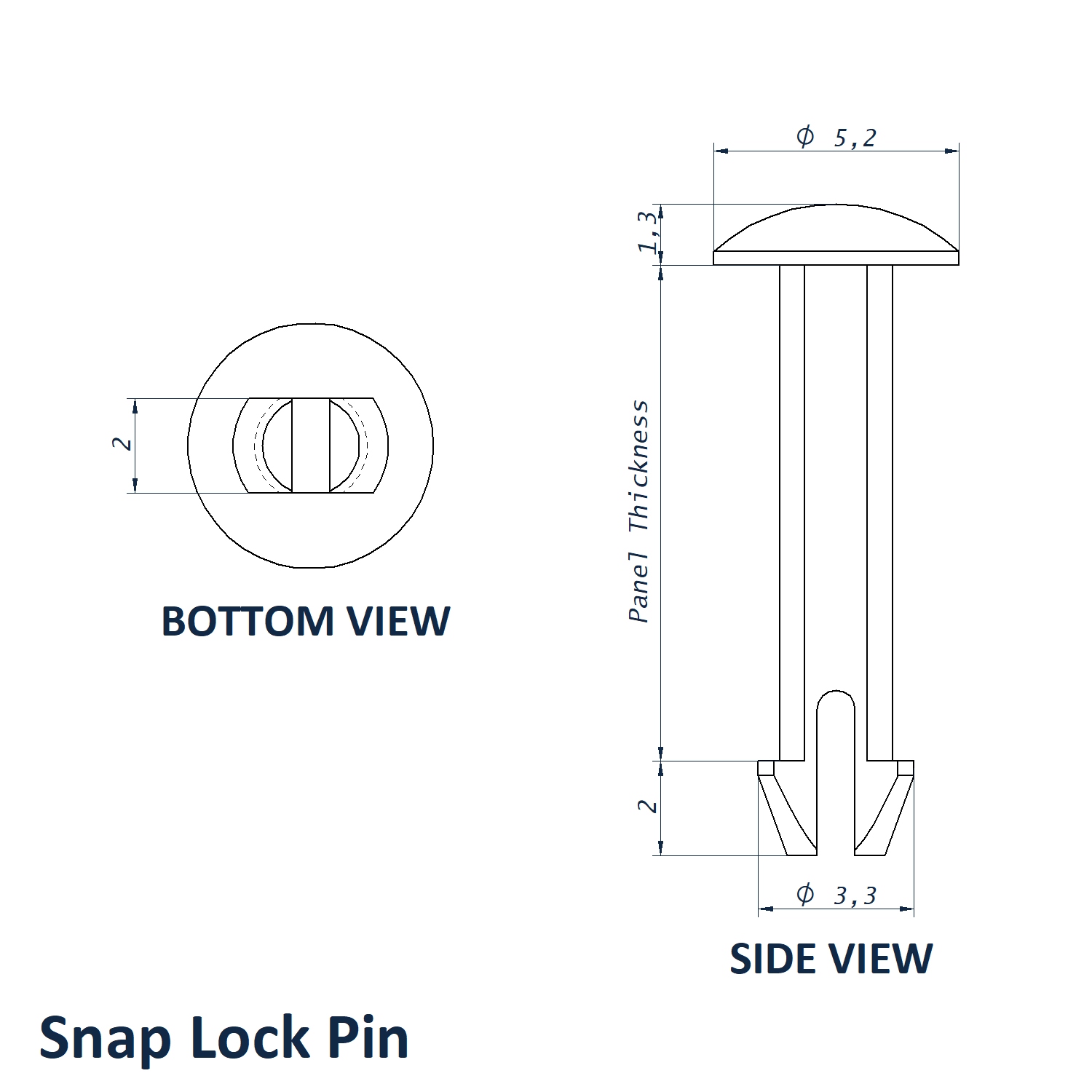

These Snap Lock Pins are installed by pushing the shank into a pre-drilled hole. During insertion, the flexible legs compress before expanding on the reverse side of the panel to create a secure locking hold. This design ensures reliable retention while still allowing removal if required for maintenance or replacement.
Commonly used for:
- PCB assemblies
- HVAC units
- Appliances & white goods
- Point of sale signage & display panels
- General industrial assemblies
Key Features & Benefits
- Tool-Free Installation – Quick push-fit design reduces assembly time
- Secure Fixing – Expanding legs provide strong, vibration-resistant retention
- Lightweight & Corrosion Resistant – Will not rust like traditional metal fasteners
- Electrically Insulating – Suitable for electrical and electronic applications
- Reusable Design – Can be removed and reinstalled where required
- Flame Rated Material – UL94V2 rated for added safety compliance
Material & Colour Options
Available in:
- Black Nylon 66 with UL94-V0 flame rating (temperature range -30°C to +85°C)
- White Nylon 66 with UL94-V2 flame rating (temperature range -40°C to +85°C)
- Various lengths to accommodate different panel thicknesses ranging from 4.5mm to 17.8mm
Our Snap Lock Pins offer a cost-effective, reliable and easy-to-install fastening solution, ideal for professional and industrial use.
Call Vital Parts:
For quick quotes, same-day dispatch, custom sizes, or bulk discounts, call our sales line on 01233 713 581. Businesses can register for a Vital Parts Business Account to benefit from priority shipping, trade pricing, free product samples, credit accounts, and a dedicated account manager.
