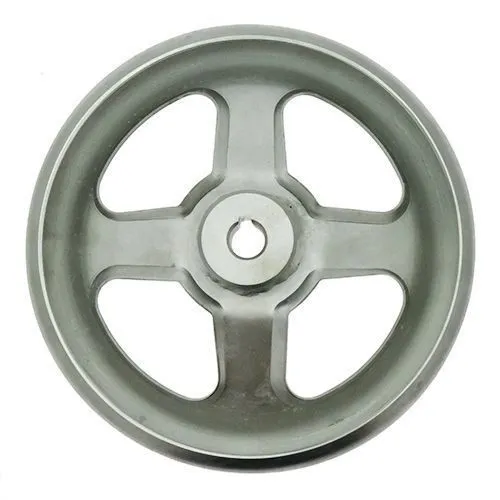

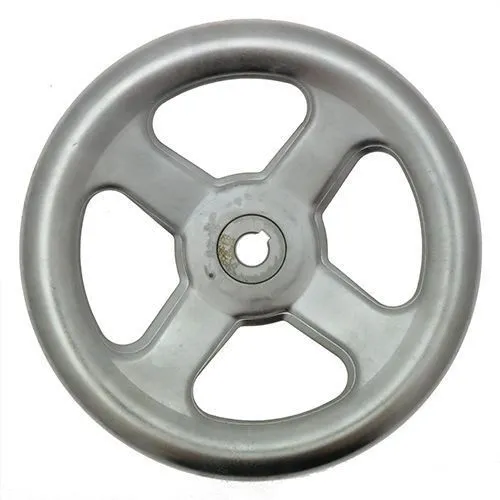

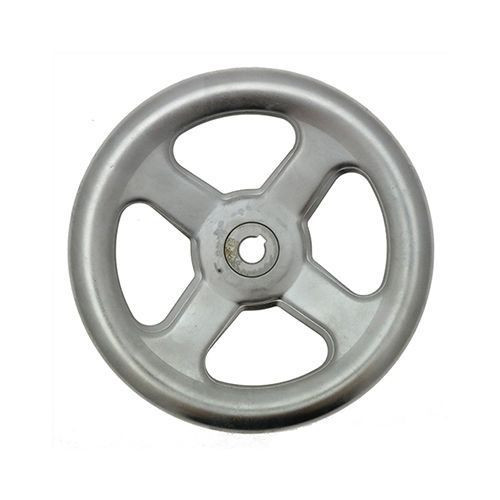

Stainless Control Handwheel - HW317
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £145.68 | £174.82 |
| 10 - 24 | £142.65 | £171.18 |
| 25 - 49 | £136.58 | £163.90 |
| 50 - 99 | £127.47 | £152.97 |
| 100 - 499 | £121.41 | £145.69 |
| 500 + | £109.27 | £131.12 |

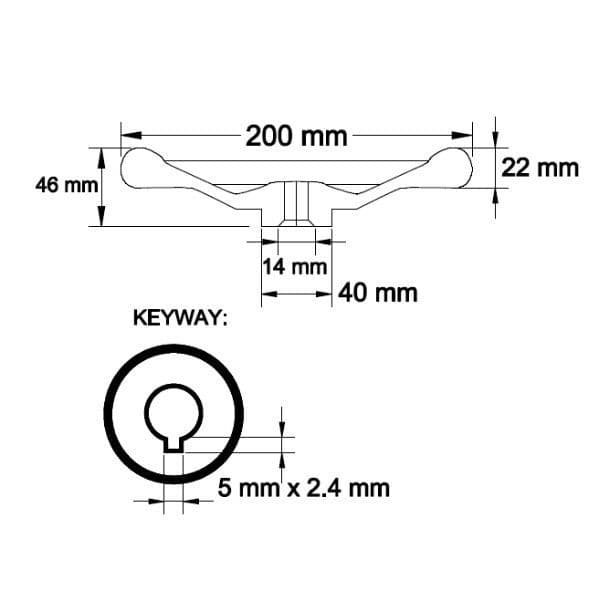

Product Specification
| Handwheel Diameter | 200mm |
| Total Height | 46mm |
| Shank Diameter | 40mm |
| Bore Diameter | 14mm |
| Keyway Width X Height | 5mm x 2.4mm |
| Handle Thickness | 22mm |
| Style | 4 Spoked |
| Colour | Self-colour |
| Handwheel Material | A2 Stainless Steel |
| Thread Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
This Stainless Steel Control Handwheel has a diameter of 200mm and a height of 46mm. It has a 40mm shank diameter and a 14mm handle thickness. Its standard bore size is 22mm and it has keyway dimensions of 5mm x 2.4mm (width x height). It is constructed with a 4 Spoked style.
Our Stainless Control Hand wheels are made of high-quality stainless steel, designed with a machined bore and keyway for easy installation. They are commonly used in industries where hygiene and cleanliness are important, and where a manual function needs to be operated.
The product is compatible with machinery and applications that use a keyway rod, and is suitable for replacement or as an upgrade. They are commonly used as machine controls.
The handwheels are available in sizes ranging from 160mm to 250mm, with various spoke designs, and are resistant to industrial chemicals and acids.
