Cordgrip Pigtail Cable Gland - STRB073
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 0 - 1 | £1.26 | £1.51 |
| 2 - 249 | £1.16 | £1.39 |
| 250 - 499 | £1.07 | £1.28 |
| 500 - 999 | £0.97 | £1.16 |
| 1000 - 2499 | £0.87 | £1.04 |
| 2500 + | £0.78 | £0.93 |
Product Stock
| Product Specifications | STRB073 |
|---|---|
| To Fit Hole Diameter | 12.7mm |
| To Prevent Rotation | 11.4mm |
| Panel Thickness | 1.6 - 3.2mm |
| Cable Diameter Range | 6.1 - 6.4mm |
| Overall Height | 63.5mm |
| Colour | Black |
| Material | Nylon 66 With Buna Sealing Ring |
Same Day Dispatch Available
Order by 4pm (UK) for same day dispatch (Monday – Thursday, 2pm Friday). Next Day or Standard Delivery available via DHL or Royal Mail.
Frequently Bought Together
Total Price: £0.00
Product Description

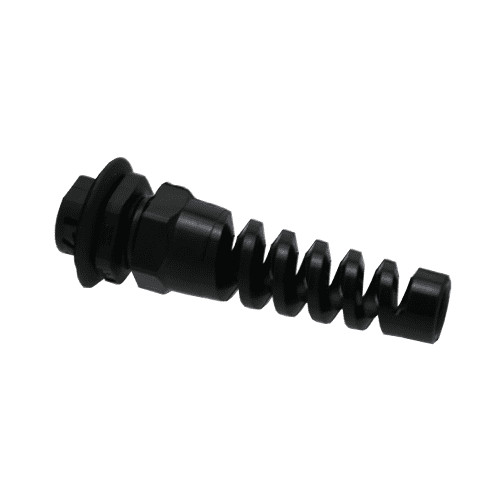

Spiral Cable Gland - 6.1 - 6.4mm Cable Diameter , 63.5mm Height - Black Nylon 6/6 | Vital Parts - STRB073
Our Spiral Cable Glands, also known as Snap In Pig Tail Cable Glands, are designed for secure and flexible cable management in space-restricted environments. Made from high-quality Nylon 6/6 and sealed with Buna N, these glands prevent kinking and reduce strain on cables, supporting a longer service life. Ideal for installations where vibration and cable movement are common.
What Are Spiral Cable Glands?
Snap In Spiral Glands are mechanical cable entry fittings that snap directly into enclosures without the need for locknuts. Their unique pig tail extension provides strain relief for cables that need to bend, minimising wear and tear. These glands feature a ratchet-style sealing nut for enhanced resistance to vibration and movement.
For a liquid tight installation please see our full range of Strain Relief products.
Key Features:
- Manufactured from durable Nylon 6/6 with Buna N seal
- Protects against kinking in tight cable layouts
- Ratchet sealing nut enhances vibration resistance
- Rated to UL 94V-2 flammability standards
- Temperature resistance from -18°C to +105°C
- Snap-fit design eliminates the need for additional tools
Key Applications and Industries
- Kink protection in confined electrical enclosures
- Data and telecom cable routing
- White goods and domestic appliances
- Lighting systems requiring strain relief at bends
- Consumer electronics and industrial cabling systems

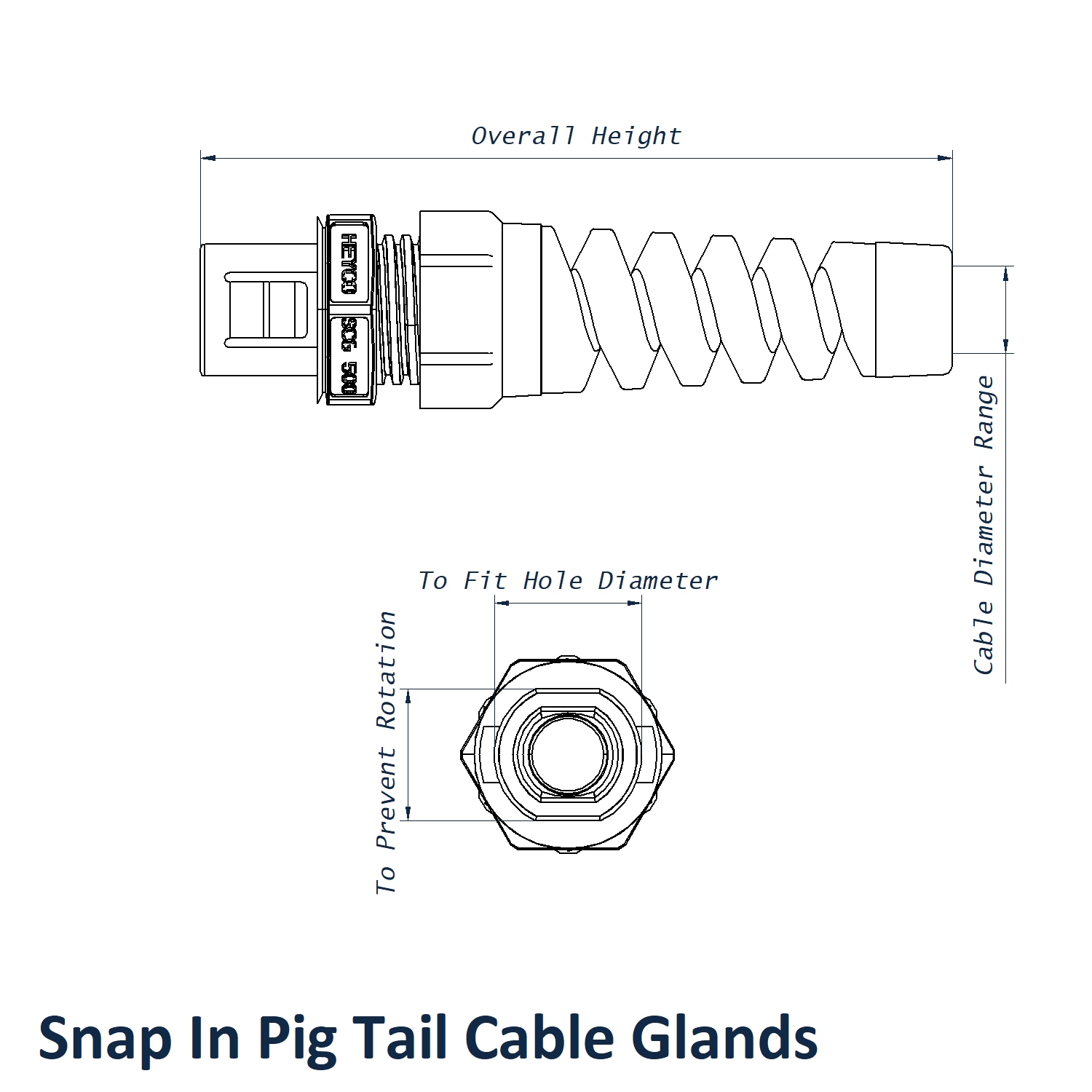

Technical Specifications
- To Fit Hole Diameter : 12.7mm
- To Prevent Rotation : 11.4mm
- Panel Thickness : 1.6 - 3.2mm
- Cable Diameter : 6.1 - 6.4mm
- Overall Height : 63.5mm
- Colour : Black
- Material: Nylon 6/6 body with Buna N sealing gland
- Installation: Snap-in mount, no locknut required
- Flame Rating: UL 94V-2
- Temperature Range: -18°C to +105°C
- Cable Diameters: 5.3 mm (0.210") to 39.6 mm (1.560")
- Rotation Prevention: Compatible with "Double D" mount holes
Our Cable Glands are ideal for:
- Protecting flexible cables in tight or angled spaces
- Minimising cable strain in high-vibration environments
- Providing easy, secure installation without tools
Benefits:
- Flexible pig tail design reduces mechanical cable stress
- Tool-free installation saves time during assembly
- Maintains seal integrity against dust and debris
- Excellent temperature and flame resistance for industrial use
