4.0mm x 65mm Pozi Countersunk Wood Screw DIN 7997Z - A2 Stainless Steel
CAD Viewer
CAD Request
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.18 | £0.22 |
| 100 - 499 | £0.17 | £0.20 |
| 500 - 999 | £0.14 | £0.17 |
| 1000 - 4999 | £0.11 | £0.13 |
| 5000 + | £0.07 | £0.09 |

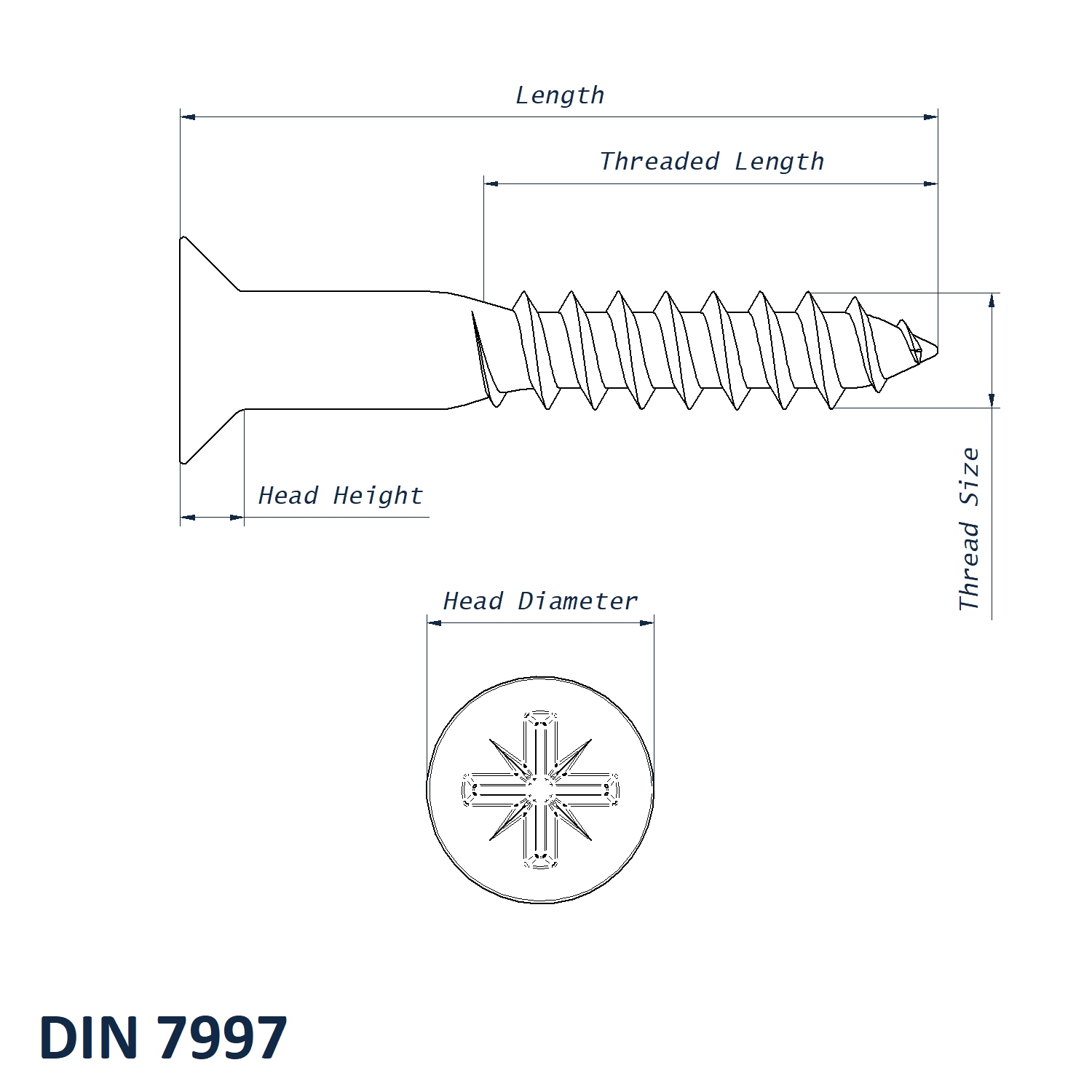

Product Specification
| Thread Size | 4.0mm |
| Length | 65mm |
| Thread Length | 39.0mm |
| Material | A2 Stainless Steel |
| Head Diameter | 7.50mm |
| Head Height | 2.20mm |
| Drive Size | PZ2 |
| Drive | Pozi |
| Standard | DIN 7997Z |
Frequently Bought Together
- Thread Size M4
- Material A2 Stainless Steel
- Height 3.20mm
- Thread Pitch 0.70mm
- Across Flats 7.0mm
- Standard DIN 934
- Material Blackened Steel & Duroplast
- Thread Type Female
- Handle Length 103mm
- Thread & Length M8
- Body Height 42.0mm
- Body Diameter 16.0mm
- Ball Diameter 25mm
- Shoulder Height 4mm
- Material A2 Stainless Steel
- Thickness 0.8mm
- Internal Diameter 4.3mm
- Outside Diameter 9.0mm
- Standard DIN 125A
- Size M4
Total Price: £0.00

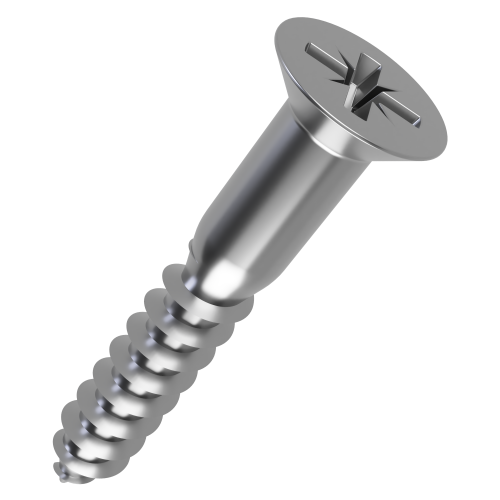

4.0mm x 65mm Pozi Countersunk Wood Screw DIN 7997Z - A2 Stainless Steel (WS7997Z-4.0-65-A2)
These 4.0mm x 65mm Pozi Countersunk Wood Screw DIN 7997Z - A2 Stainless Steel screws are designed for secure fixing into timber, wood based materials and general construction applications. Manufactured from corrosion resistant A2 Stainless Steel these screws feature a countersunk head with a Pozi drive for a neat flush finish and improved torque during installation.
What are Pozi Countersunk Wood Screws?
Pozi Countersunk Wood Screws to DIN 7997Z are threaded fasteners designed specifically for fixing into wood and timber materials. Their countersunk head allows the screw to sit flush with the surface while the Pozi drive helps reduce cam out during tightening.
Key Features:
- Manufactured from A2 Stainless Steel
- Pozi drive design for secure installation
- Countersunk head for a flush finish
- Designed to DIN 7997Z specification
- Suitable for timber, MDF and wooden assemblies
- Corrosion resistant for indoor and outdoor use
Key Applications and Industries
Commonly used throughout furniture manufacturing, joinery, carpentry, shop fitting, maintenance and construction industries across the UK. These screws are ideal for wooden frames, panels, fixtures and general timber installations.
Technical Specifications
- Product Code: WS7997Z-4.0-65-A2
- Thread Size: 4.0mm
- Length: 65mm
- Thread Length: 39.0mm
- Head Diameter: 7.50mm
- Head Height: 2.20mm
- Drive: Pozi
- Drive Size: PZ2
- Standard: DIN 7997Z
- Material: A2 Stainless Steel
Benefits:
- Provides a strong and reliable fixing into wood
- Flush countersunk finish improves appearance
- Excellent corrosion resistance
- Easy to install using Pozi drive tools
- Suitable for trade, industrial and DIY applications
Why Buy from Vital Parts?
Vital Parts supplies high quality fixing components for industrial, trade and commercial applications throughout the UK.
- High quality stainless steel fasteners
- Available in a wide range of sizes
- Competitive UK pricing
- Fast UK delivery options available
- Expert technical support
If you need assistance selecting the right size or would like to discuss custom options , contact our expert team at 01233 713581.
| Code | Thread Size | Material | Thread Length | Head Diameter | Length | Drive | Standard | Head Height | Drive Size | Stock | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| WS7997Z-4.0-65-A2 | 4.0mm | A2 Stainless Steel | 39.0mm | 7.50mm | 65mm | Pozi | DIN 7997Z | 2.20mm | PZ2 |
Checking...
|
|
| WS7997Z-5.5-100-A2 | 5.5mm | A2 Stainless Steel | 60.0mm | 10.20mm | 100mm | Pozi | DIN 7997Z | 2.75mm | PZ3 |
Checking...
|
|
| WS7997Z-5.5-30-A2 | 5.5mm | A2 Stainless Steel | 18.0mm | 10.20mm | 30mm | Pozi | DIN 7997Z | 2.75mm | PZ3 |
Checking...
|
|
| WS7997Z-5.5-40-A2 | 5.5mm | A2 Stainless Steel | 24.0mm | 10.20mm | 40mm | Pozi | DIN 7997Z | 2.75mm | PZ3 |
Checking...
|
|
| WS7997Z-5.5-50-A2 | 5.5mm | A2 Stainless Steel | 30.0mm | 10.20mm | 50mm | Pozi | DIN 7997Z | 2.75mm | PZ3 |
Checking...
|
|
| WS7997Z-5.5-65-A2 | 5.5mm | A2 Stainless Steel | 10.20mm | 65mm | Pozi | DIN 7997Z | 2.75mm | PZ3 |
Checking...
|
|
|
| WS7997Z-5.5-75-A2 | 5.5mm | A2 Stainless Steel | 45.0mm | 10.20mm | 75mm | Pozi | DIN 7997Z | 2.75mm | PZ3 |
Checking...
|
|
