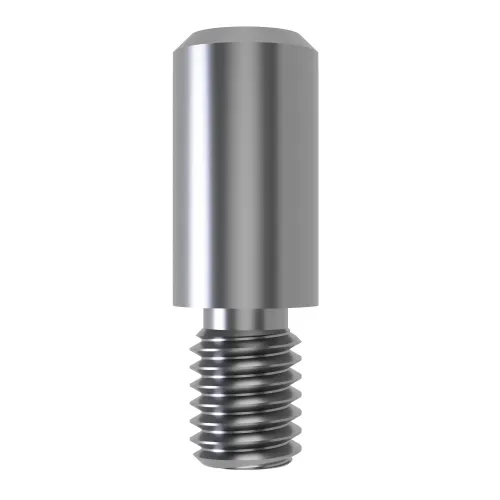

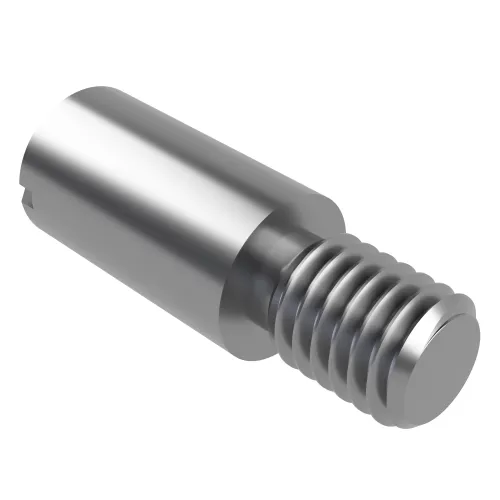

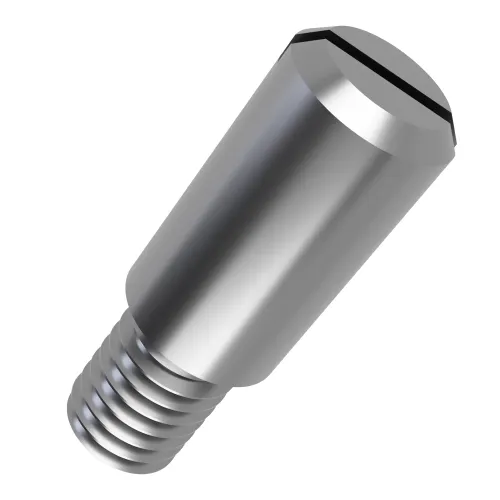

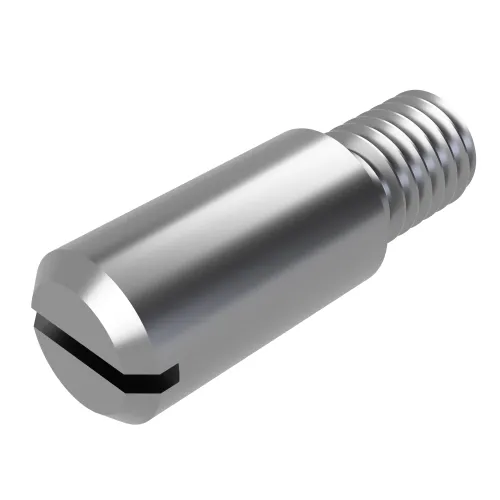

M4 x 6mm Headless Slotted Shoulder Screw (DIN 927) | A1 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 2 - 24 | £0.38 | £0.45 |
| 25 - 49 | £0.33 | £0.39 |
| 50 - 99 | £0.27 | £0.32 |
| 100 - 499 | £0.22 | £0.26 |
| 500 - 999 | £0.20 | £0.24 |
| 1000 + | £0.18 | £0.22 |
Product Specification
| Thread Size | M4 |
| Thread Pitch | 0.70mm |
| Shoulder Diameter | 5.5mm |
| Shoulder Length | 6.0mm |
| Thread Length | 6.3mm |
| Drive | Slotted |
| Material | A1 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
Our Headless Shoulder Screws are manufactured to DIN 927 standards, offering a reliable fastening solution where a smooth, precise shoulder is required without the need for a conventional screw head.
Designed with a cylindrical plain portion (the shoulder) followed by a threaded section, these screws are ideal for applications where components need to rotate, slide, or be accurately positioned. The absence of a head allows for a flush fit, making them particularly useful in assemblies with limited space or where an unobtrusive fastening is required.
Key Features:
- Manufactured to DIN 927 specifications
- Headless design for flush installation
- Precision shoulder section for guiding, locating, or spacing components
- Available in a range of materials and finishes to suit different environments
- Commonly used in toolmaking, jigs, fixtures, machinery, and precision engineering
Applications:
Headless Shoulder Screws are widely used in mechanical assemblies, tooling setups, and machinery construction where accurate alignment and smooth movement are essential. They are particularly effective as pivot points, guides, or spacers.
