M52 x 205mm Black Telescopic Thread Protection Nut & Washer Cap

M52 x 205mm - Telescopic Thread Protection Nut and Washer Caps DIN 125 - LDPE - Black | Vital Parts - TPNWC-M52-205-T-B

Our Telescopic Thread Protection Nut and Washer Caps are an efficient solution for protecting long bolt projections and exposed threads in demanding environments. Designed to snap easily onto nuts and fully cover washers, these caps offer both functional and aesthetic benefits for industrial, construction, and marine applications.

What are Telescopic Thread Protection Nut and Washer Caps?

Also known as Nut Caps, Bolt Caps, or Washer Caps, these components are made from high-quality LDPE and are specifically designed to cover nuts, washers, and extended bolt threads. The telescopic design allows a single cap to fit a range of stud lengths, eliminating the need for multiple cap sizes and reducing inventory waste. They feature a clamping edge that secures beneath the chamfer of the nut, while internal ribs deform upon installation to increase grip strength-delivering a secure, vibration-resistant fit in any setting.

Key Features:

• Made from durable LDPE with excellent chemical resistance
• Telescopic structure accommodates a range of bolt lengths
• Snaps onto hex nuts and fully covers the washer
• Clamping edge and internal ribs ensure a firm, secure fit
• Low electrical conductivity for added workplace safety
• Available in sizes from M4 to M90
• Manufactured to DIN 125 specifications
• Custom RAL colours available on request

Key Applications and Industries

These telescopic caps are commonly used across a wide range of UK industries, including:

• Construction - steelwork, supports, guardrails
• Power generation - turbines, substations
• Agricultural machinery - frames, fixings
• Marine systems - docks, vessels, coastal infrastructure
• Bridge building and civil engineering
• Road guardrails and traffic barriers

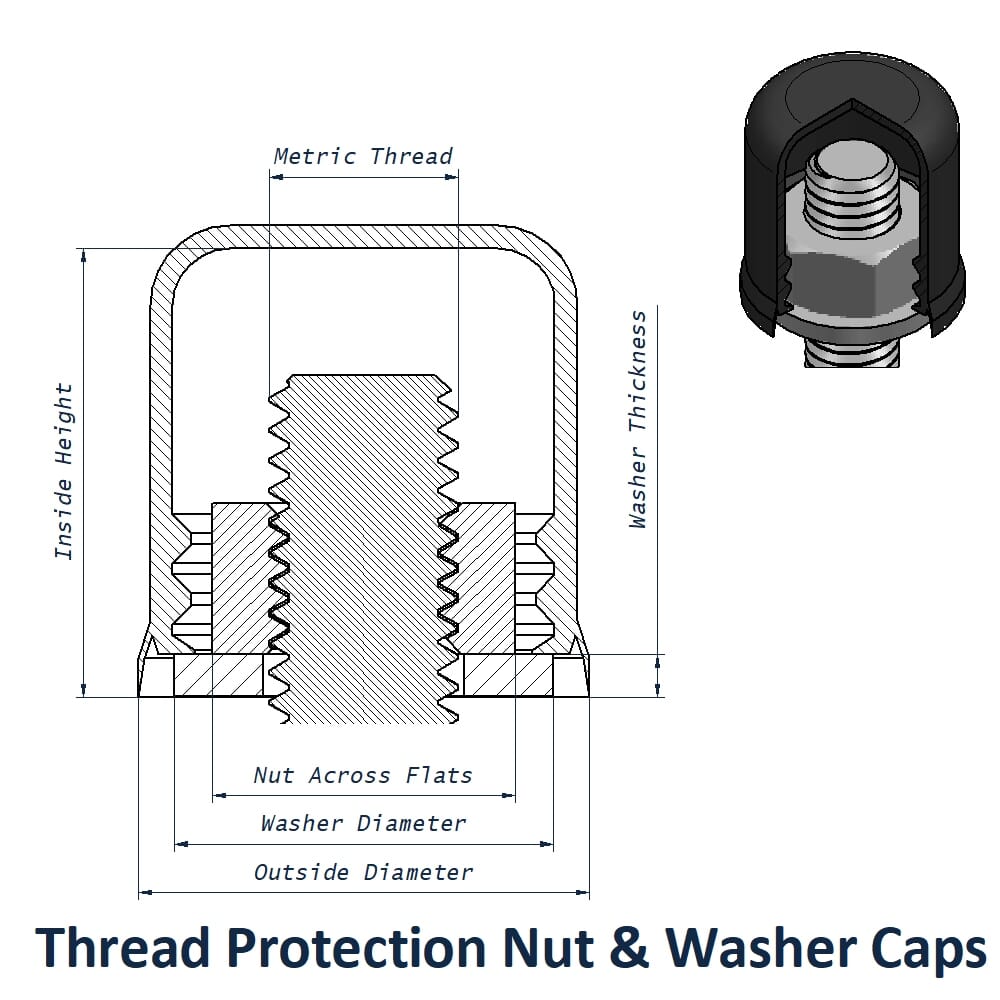

Technical Specifications

• Material: Low-Density Polyethylene (LDPE)
• Temperature Resistance: Continuous use up to 70°C
• Chemical Resistance: Seawater, non-oxidising acids and alkalis, oils, greases, alcohols, and fuels
• Design: Telescopic structure with clamping edge and internal ribs
• Colour: Black (standard), custom RAL colours available
• Thread Sizes: M52
• Nut Across Flats:80mm
• Inside Height:205mm
• Outside Diameter:107mm
• Washer Diameter:98mm
• Washer Thickness:8mm

Our Telescopic Thread Protection Nut and Washer Caps are ideal for:

• Projects involving long stud projections where standard caps are unsuitable
• Protecting fasteners in exposed or corrosive environments
• Preventing thread damage, wear, and corrosion over time
• Ensuring worker safety by concealing sharp threaded components
• Improving the overall finish and appearance of assemblies

Benefits:

• Efficient protection for a range of bolt lengths with one cap
• Reduces the risk of injuries from exposed threads
• Extends the life of fasteners by shielding them from the elements
• Easy to install and remove-no tools required
• Saves space and reduces part variety needed in stock
