Allen Key Adjustable Feet - ADJ912
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 499 | £1.43 | £1.72 |
| 500 - 999 | £1.21 | £1.45 |
| 1000 - 4999 | £1.06 | £1.27 |
| 5000 - 9999 | £0.97 | £1.16 |
| 10000 + | £0.70 | £0.84 |
Product Specification
| Thread | M10 x 50mm |
| Base Diameter | 38mm |
| Weight Rating | 550kg |
| Base & Hex Nut Height | 14.0mm |
| Style | 5mm Fixed Base |
| Material | Zinc-plated stem & Polyamide base |
Frequently Bought Together
Total Price: £0.00

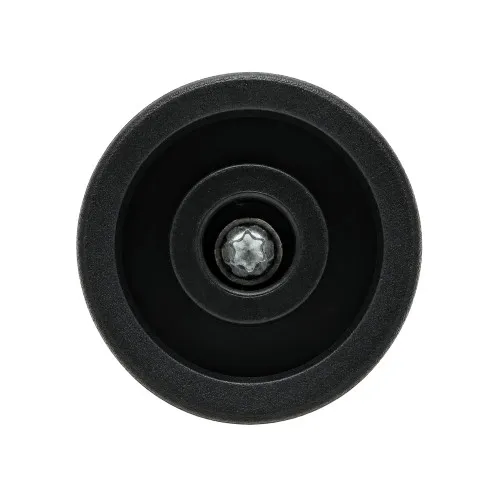

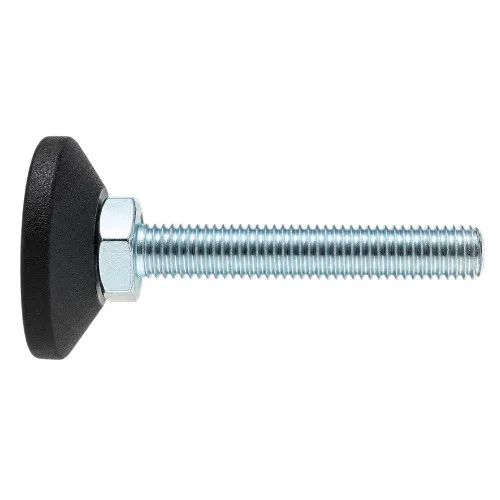

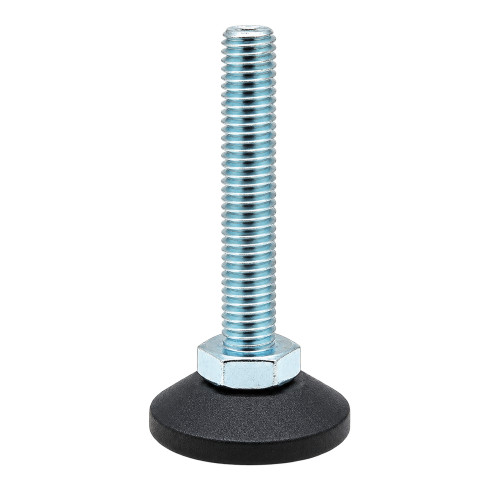

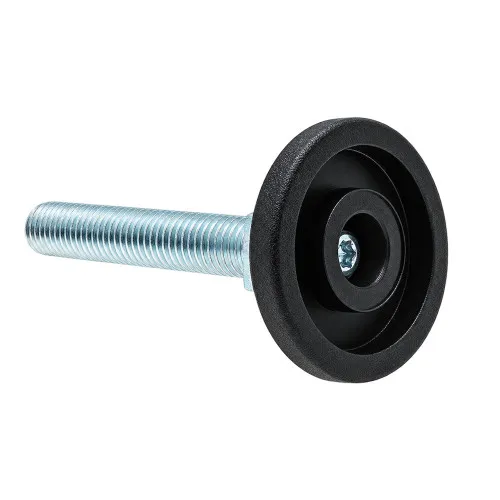

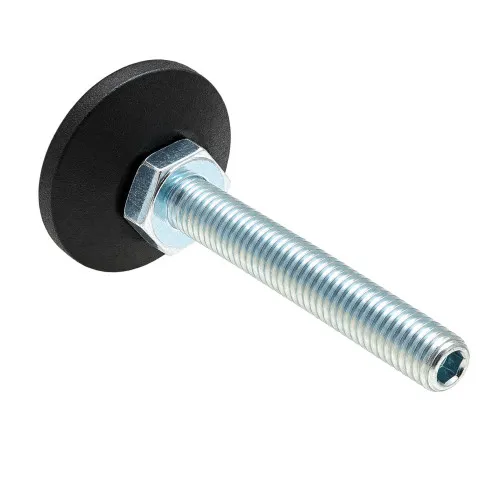

M10 x 50mm Allen Key Adjustable Foot | 38mm Base Diameter | 5mm Fixed Base | Zinc-Plated Stem & Polyamide Base
These M10 x 50mm Allen Key Adjustable Feet are intended for equipment plinths that need adjustment after final positioning, using a compact base and threaded stem to create a practical adjustable base foot. The 38mm base has a 550kg weight rating while the 5mm fixed base keeps the base position firm where a more rigid contact point is preferred.
The zinc-plated stem provides a practical metal fixing while the polyamide base offers a hard wearing contact surface for everyday equipment use. This foot is useful for repeatable assembly processes where the same adjustable support is fitted across a product range. With a 14mm base and hex nut height, this option is suited to OEM assemblies that require a repeatable threaded levelling solution during final build.
Common Applications
- Service desk frames requiring M10 x 50mm threaded adjustment
- Supporting machinery during service work using a fixed base
- Equipment installations needing a 38mm base with a 550kg static weight rating
- Workbench and benching systems where stable contact helps remove rocking from the assembly
M10 x 50mm 5mm Fixed Allen Key Adjustable Foot Dimensions
- Thread: M10 x 50mm
- Base Diameter: 38mm
- Weight Rating: 550kg
- Base & Hex Nut Height: 14.0mm
- Style: 5mm Fixed Base
- Material: Zinc-plated stem & Polyamide base
View our full range of Allen Key Adjustable Feet.
