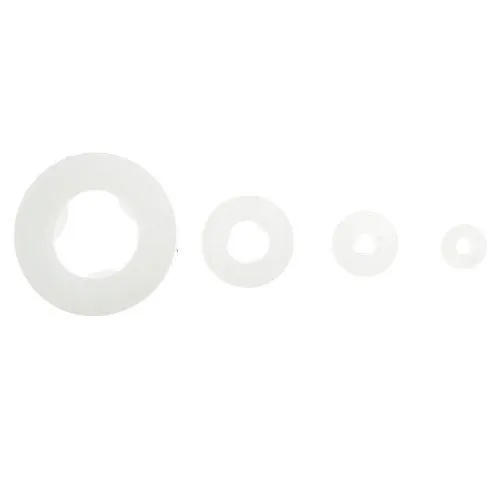

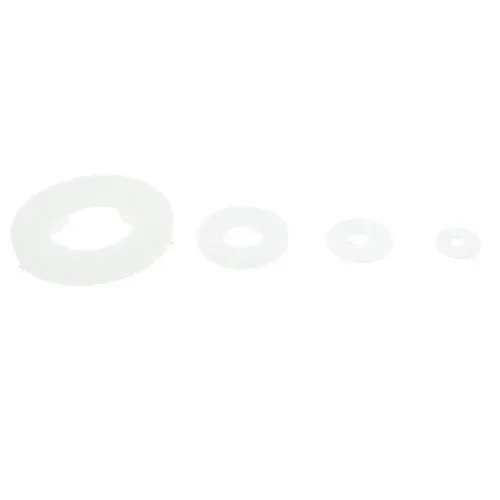

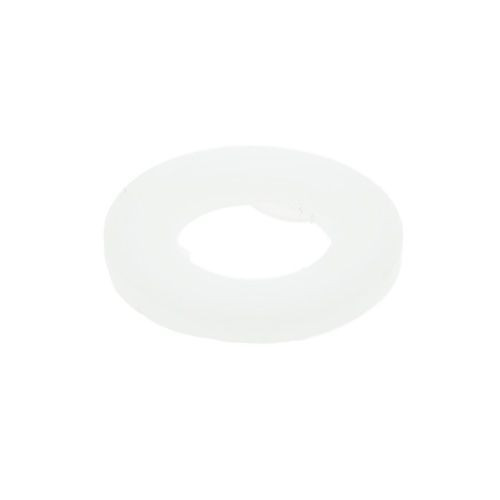

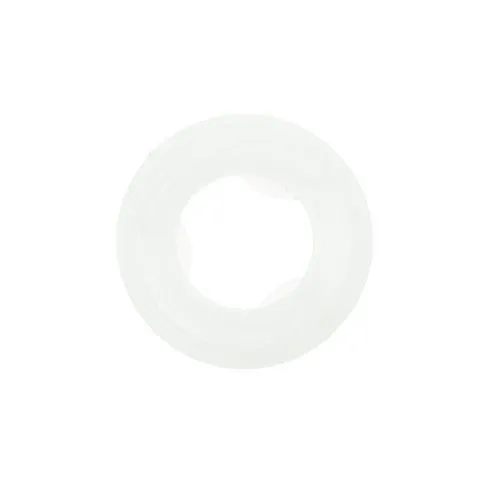

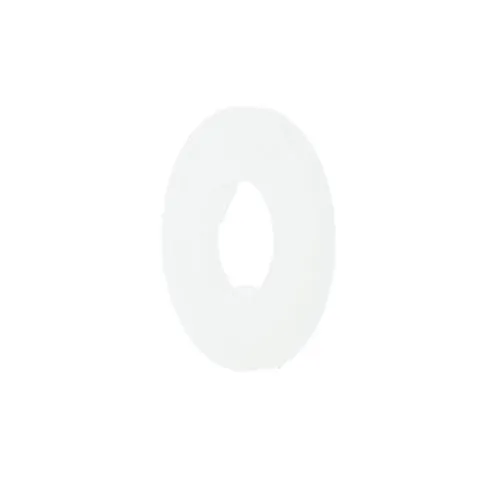

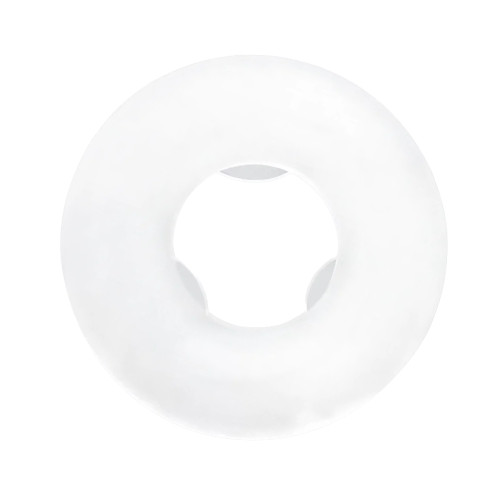

10.5mm x 22.0mm (M10) Retaining Washer (3-Pronged) 2.0mm Thickness | Nylon
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 499 | £0.42 | £0.51 |
| 500 - 999 | £0.37 | £0.44 |
| 1000 - 4999 | £0.31 | £0.37 |
| 5000 - 9999 | £0.27 | £0.32 |
| 10000 + | £0.23 | £0.27 |
£0.51 / each
Product Specification
| Size | M10 |
| Internal Diameter | 10.5mm |
| Grip Diameter | 8.20mm |
| Outside Diameter | 22.0mm |
| Thickness | 2.0mm |
| Type | 3 Prong |
| Material | Nylon |
| Colour | Natural |
Frequently Bought Together
Total Price: £0.00
10.5mm x 22mm M10 Anti-Loss Washer | 3 Prong | 2mm | Nylon
Made for instrumentation and control products, this M10 plastic locking washer provides a simple way to keep a screw or bolt associated with the assembly once fitted. The 3 prong profile flexes around the fastener while the Nylon body provides a lightweight alternative to a metal retaining washer.
What Are Anti-Loss Washers?
Pronged Retaining Washers are fitted over compatible fasteners to create a light interference grip around the shank or thread. This helps keep screws and bolts associated with panels, covers and equipment where the fastening point may be opened repeatedly.
Common Applications
- Service Panels: Keeps screws with removable covers or access panels when they are opened for inspection or maintenance.
- Machinery: Provides a simple retaining component for screws used on guards, covers and light mechanical assemblies.
- General Maintenance: Reduces the chance of compatible screws or bolts being dropped or lost when equipment is dismantled.
- Electronics: Provides a lightweight retaining washer for screws used in housings, boards and equipment assemblies.
M10 3 Prong Anti-Loss Washer Dimensions
- Size: M10
- Internal Diameter: 10.5mm
- Grip Diameter: 8.20mm
- Outside Diameter: 22.0mm
- Thickness: 2.0mm
- Type: 3 Prong
- Material: Nylon
- Colour: Natural
Key Benefits
- Flexible prongs help keep the compatible fastener attached during assembly, transport or servicing.
- Pronged retention can reduce dropped or misplaced fasteners on removable panels and covers.
- 8.20mm grip diameter creates the retaining interference around the screw or bolt.
- 2.0mm thickness provides the specified section for this design.
For another fastener size or prong layout, see our complete Anti Loss Washers range. For help comparing sizes and styles, speak with our team on 01233 713581.
