125mm Braked Conductive Plate Castor Wheel - 55mm x 55mm Plate (For Hard Floors) | 75kg
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £50.52 | £60.62 |
| 2 - 499 | £46.98 | £56.37 |
| 500 - 999 | £43.69 | £52.43 |
| 1000 - 4999 | £40.63 | £48.76 |
| 5000 - 9999 | £37.78 | £45.34 |
| 10000 + | £35.14 | £42.17 |
£60.62 / each
.png)
Product Specification
| Wheel Diameter | 125mm |
| Castor Height | 139.0mm |
| Plate Size | 55mm x 55mm |
| Hole Centres | 40mm to 42mm Slot |
| Screw Hole Size | 6.0mm |
| Style | For Hard Floor |
| Braked | Not Braked |
| Weight Rating | 75kg |
| Material | Nylon / Steel BZP |
Frequently Bought Together
Total Price: £0.00

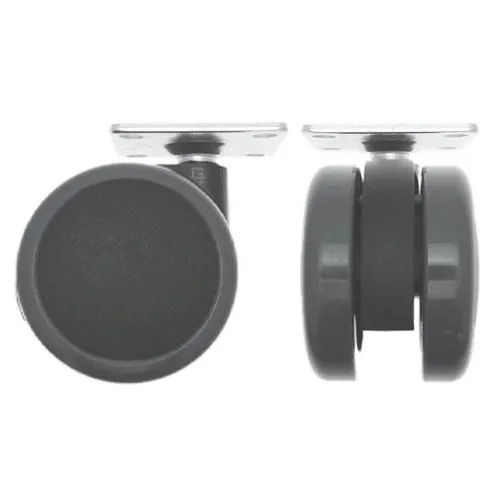

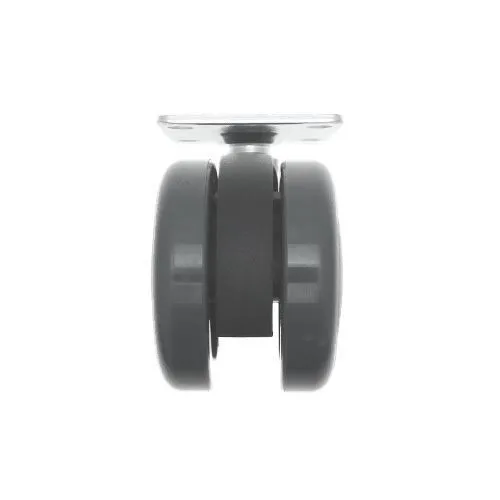

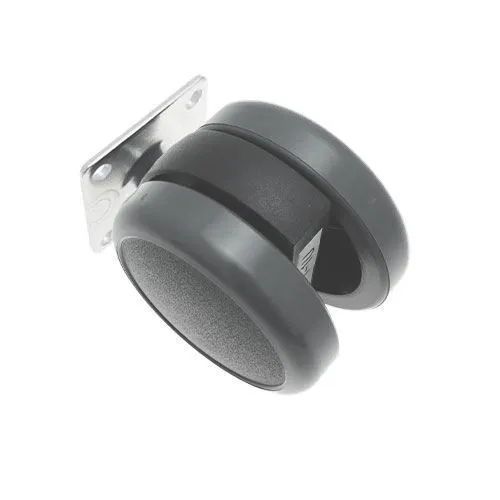

125mm Unbraked Conductive Plate Castor - 55mm x 55mm Plate | Black Nylon / Steel BZP
Offering a secure plate-mounted solution for technical workstations and inspection equipment, this black conductive plate castor is built around a 125mm wheel and 55mm x 55mm plate. The 6.0mm fixing holes support installation and the unbraked format keeps the castor free for routine repositioning with a stated 75kg weight rating.
What Are Plate Castors?
Conductive plate castors combine a flat multi-hole mounting plate with a wheel design intended for static-sensitive environments. They are used where reducing static build-up is important, including electronics production and clean technical areas. Plate size, load rating, floor classification and brake status still need to match the equipment.
Common Applications
- Component Handling: Supports carts used to move sensitive parts between production stages.
- Laboratory Equipment: Provides a plate-mounted conductive wheel for compatible technical furniture.
- Electronics Assembly: Supports mobile equipment used around static-sensitive electronic components.
- Test Equipment: Adds mobility to instrument stands and electronic inspection equipment.

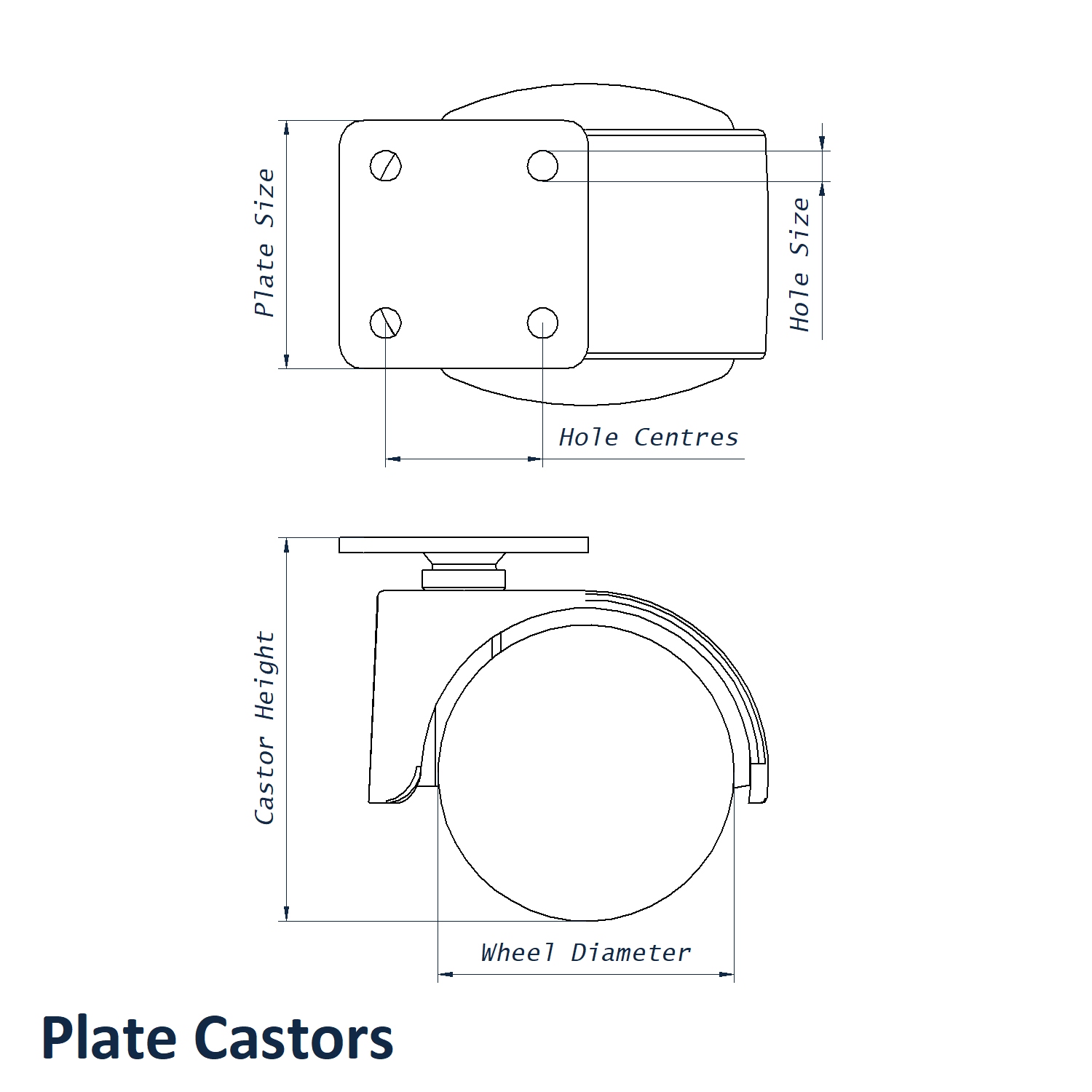

125mm 55mm x 55mm Unbraked Conductive Plate Castor Dimensions
- Plate Size: 55mm x 55mm
- Wheel Diameter: 125mm
- Castor Height: 139.0mm
- Hole Centres: 40mm to 42mm Slot
- Screw Hole Size: 6.0mm
- Style: For Hard Floor
- Braked: Not Braked
- Weight Rating: 75kg
- Material: Nylon / Steel BZP
- Colour: Black
Key Benefits
- The 125mm wheel size provides the specified rolling format for the equipment base.
- Conductive wheel specification supports equipment used in static-sensitive working areas.
- Plate mounting spreads the fixing points across the underside of the furniture or equipment.
- The 55mm x 55mm plate provides a broad fixing surface for secure attachment.
View the complete Plate Castors range to compare other wheel diameters, plate sizes and brake options. For help matching the fixing pattern and load requirements to your equipment, contact the Vital Parts technical sales team on 01233 713581.
