M12 x 37mm Anti-Vibration Mount - Male-Male Bobbin (Weight Rating 317kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £14.77 | £17.72 |
| 2 - 249 | £14.76 | £17.71 |
| 250 - 499 | £13.71 | £16.45 |
| 500 - 999 | £12.65 | £15.18 |
| 1000 - 2499 | £11.60 | £13.92 |
| 2500 + | £10.54 | £12.65 |
£17.72 / each
Product Specification
| Diameter | 70mm |
| Height | 30mm |
| Thread Size | M12 |
| Thread Length | 37mm |
| Type | Male to Male |
| Shore Hardness | 60 IRHD |
| Weight Rating | 317kg |
| Deflection | 2.4mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M12 x 37mm Male to Male Anti Vibration Mount | 70mm x 30mm Bobbin | 317kg Weight Rating | Zinc Steel & Natural Rubber
Engineered for signage systems, the M12 male to male rubber bobbin mount combines a compact 70mm x 30mm rubber bobbin with bonded metal fixings for controlled isolation.
The specified 317kg load capacity makes the mount easier to match to equipment weight and expected movement. The male to male bobbin layout has threaded studs on both faces. This is useful when the mount needs to connect two brackets, plates or threaded fixing points while the rubber section sits between them. The mount fits applications where a resilient fixing, vibration isolator or rubber mounting bobbin is required.
Common Applications
- Protecting inspection equipment
- Mounting dust extraction units
- Mounting vibration-prone bracketry
- Mounting exhaust fan brackets

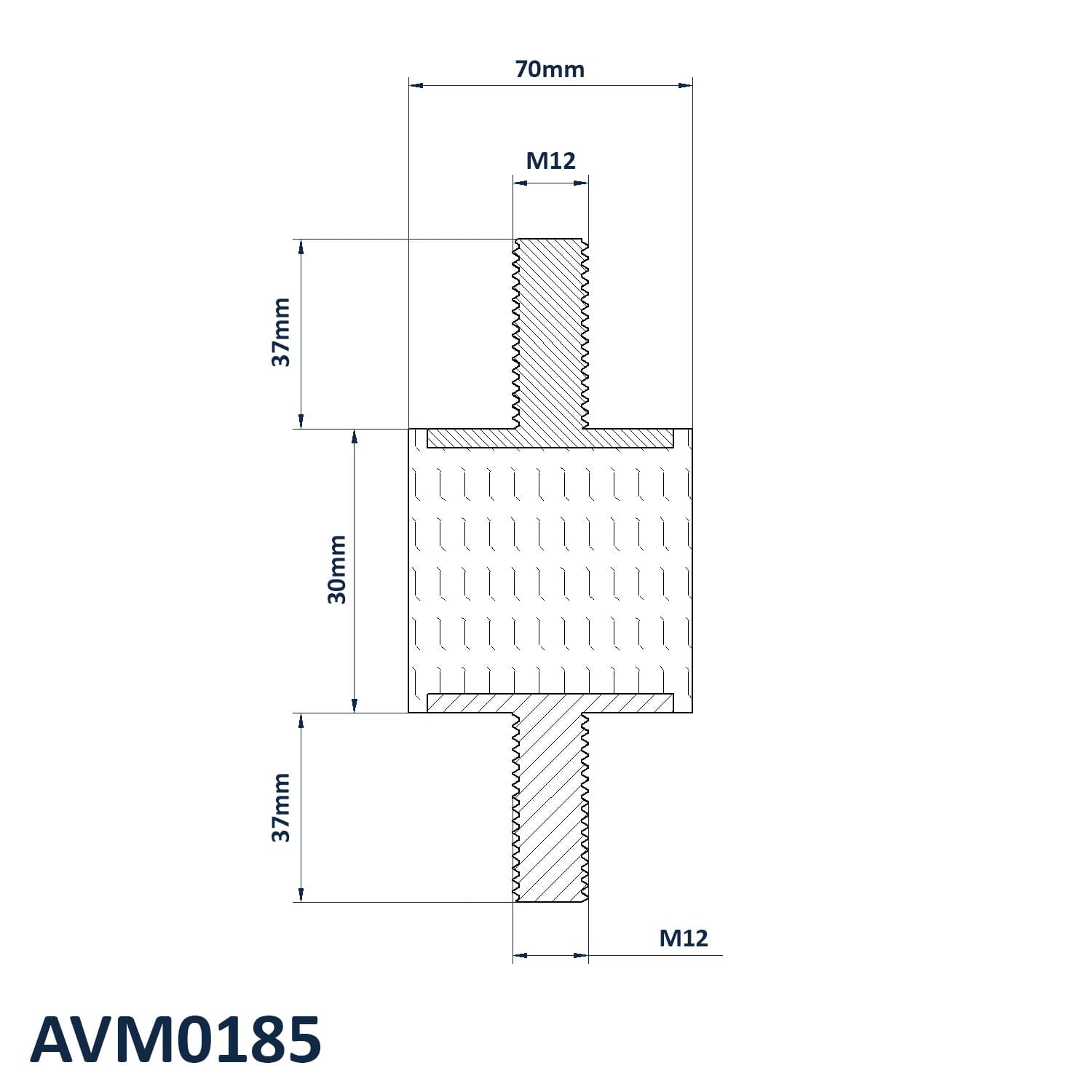

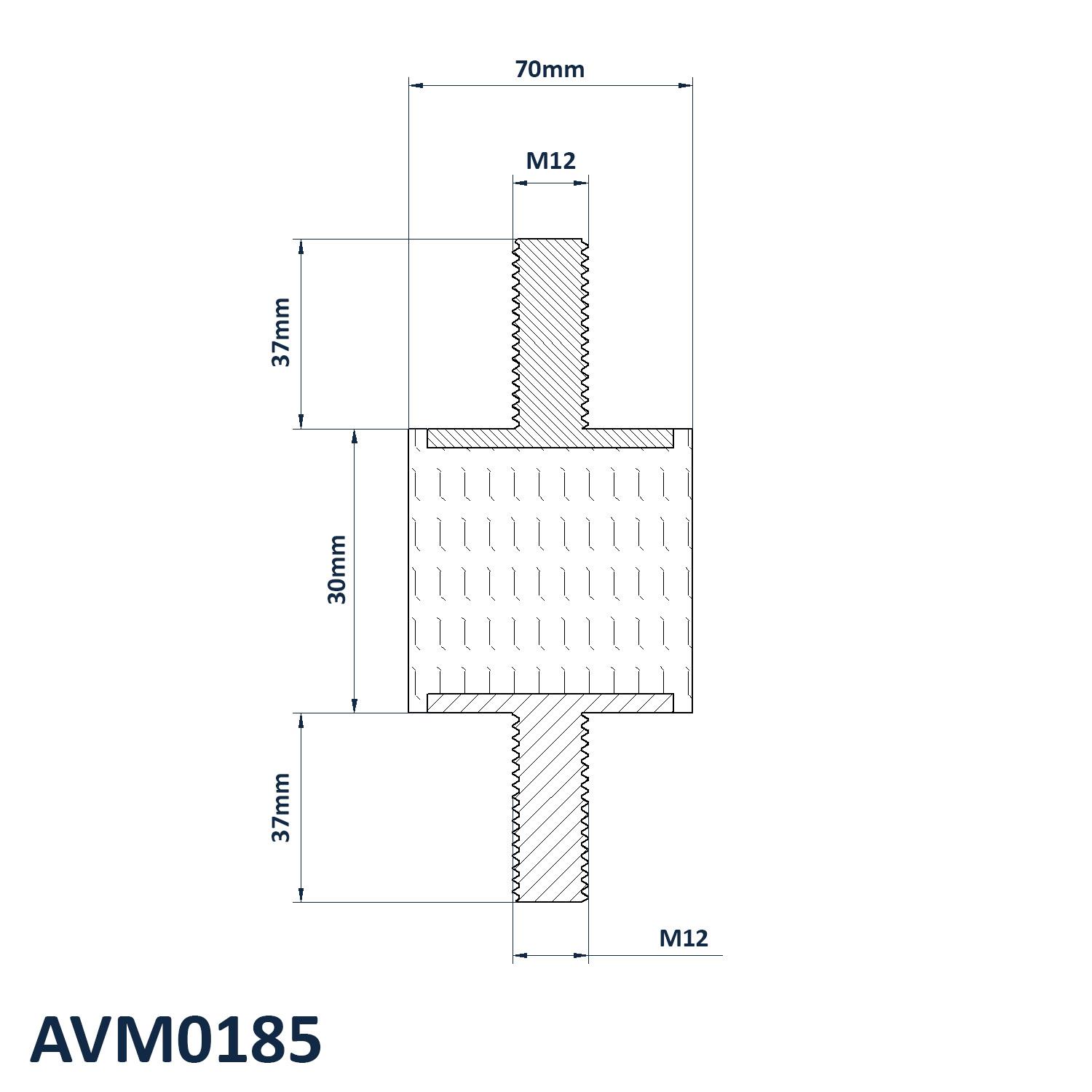

M12 x 37mm Male to Male Anti Vibration Mount Dimensions
- Diameter: 70mm
- Height: 30mm
- Thread Size: M12
- Thread Length: 37mm
- Type: Male to Male
- Shore Hardness: 60 IRHD
- Weight Rating: 317kg
- Deflection: 2.4mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a male to male bobbin when both sides of the installation need an exposed threaded fixing for nuts, tapped plates or matching bracket locations. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
