M10 x 25mm Anti-Vibration Mount - Male-Male Bobbin (Weight Rating 114kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £15.48 | £18.58 |
| 2 - 249 | £15.18 | £18.21 |
| 250 - 499 | £14.87 | £17.84 |
| 500 - 999 | £14.57 | £17.49 |
| 1000 - 2499 | £14.28 | £17.14 |
| 2500 + | £13.99 | £16.79 |
£18.58 / each
Product Specification
| Diameter | 70mm |
| Height | 50mm |
| Thread Size | M10 |
| Thread Length | 25mm |
| Type | Male to Male |
| Shore Hardness | 45 IRHD |
| Weight Rating | 114kg |
| Deflection | 4.4mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M10 x 25mm Male to Male Anti Vibration Mount | 70mm x 50mm Bobbin | 114kg Weight Rating | Zinc Steel & Natural Rubber
Manufactured for storage systems, this male to male rubber isolation bobbin helps separate moving assemblies from surrounding frames without needing a large isolator.
It is a practical choice for maintenance teams replacing worn rubber mounts, machine buffers or noise control fixings. The male to male bobbin layout has threaded studs on both faces. This is useful when the mount needs to connect two brackets, plates or threaded fixing points while the rubber section sits between them. Its rubber body provides vibration isolation without the need for complex brackets or separate damping pads.
Common Applications
- Fitting vehicle body panels
- Mounting laboratory instrument feet
- Fixing air handling unit panels
- Securing removable side panels

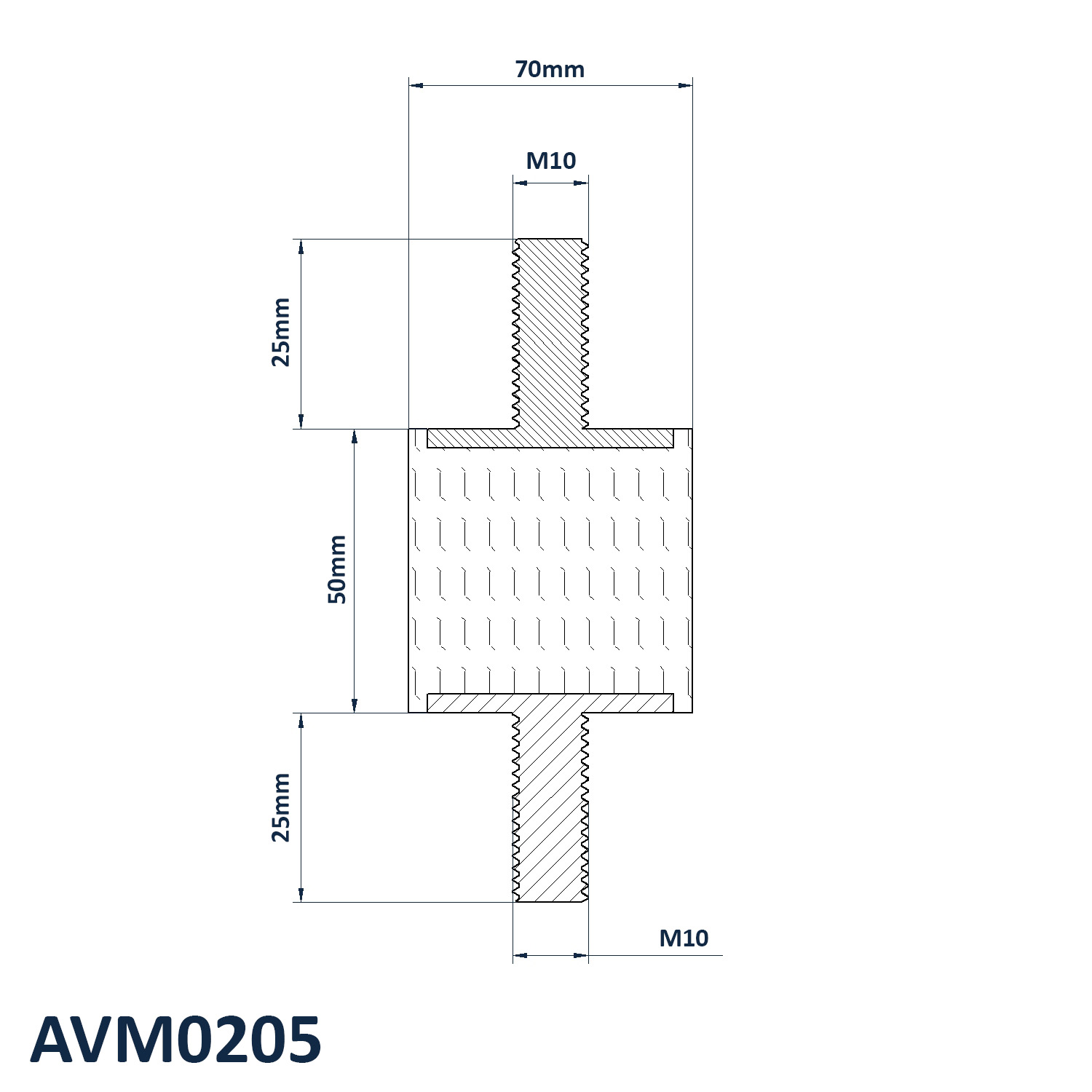

M10 x 25mm Male to Male Anti Vibration Mount Dimensions
- Diameter: 70mm
- Height: 50mm
- Thread Size: M10
- Thread Length: 25mm
- Type: Male to Male
- Shore Hardness: 45 IRHD
- Weight Rating: 114kg
- Deflection: 4.4mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a male to male bobbin when both sides of the installation need an exposed threaded fixing for nuts, tapped plates or matching bracket locations. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
