M16 x 44mm Anti-Vibration Mount - Male-Male Bobbin (Weight Rating 670kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £31.48 | £37.77 |
| 2 - 249 | £31.47 | £37.76 |
| 250 - 499 | £29.22 | £35.06 |
| 500 - 999 | £26.97 | £32.36 |
| 1000 - 2499 | £24.73 | £29.67 |
| 2500 + | £22.48 | £26.97 |
£37.77 / each
.png)
Product Specification
| Diameter | 100mm |
| Height | 40mm |
| Thread Size | M16 |
| Thread Length | 44mm |
| Type | Male to Male |
| Shore Hardness | 60 IRHD |
| Weight Rating | 670kg |
| Deflection | 3.2mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M16 x 44mm Male to Male Anti Vibration Mount | 100mm x 40mm Bobbin | 670kg Weight Rating | Zinc Steel & Natural Rubber
Providing isolation for automation frames, the M16 natural rubber vibration mount is suited to frames, panels and equipment covers that need a resilient fixing.
With a male stud on each side, this bobbin is well suited to bridging two fixed surfaces. It helps keep the equipment held in position while reducing direct vibration transfer. The bonded construction helps resist separation under normal compression and shear loading. The design works as a compact machine mount, panel vibration damper or rubber mounting buffer depending on the installation.
Common Applications
- Securing engine ancillary brackets
- Mounting pump base plates
- Fixing roof unit covers
- Attaching instrument panels

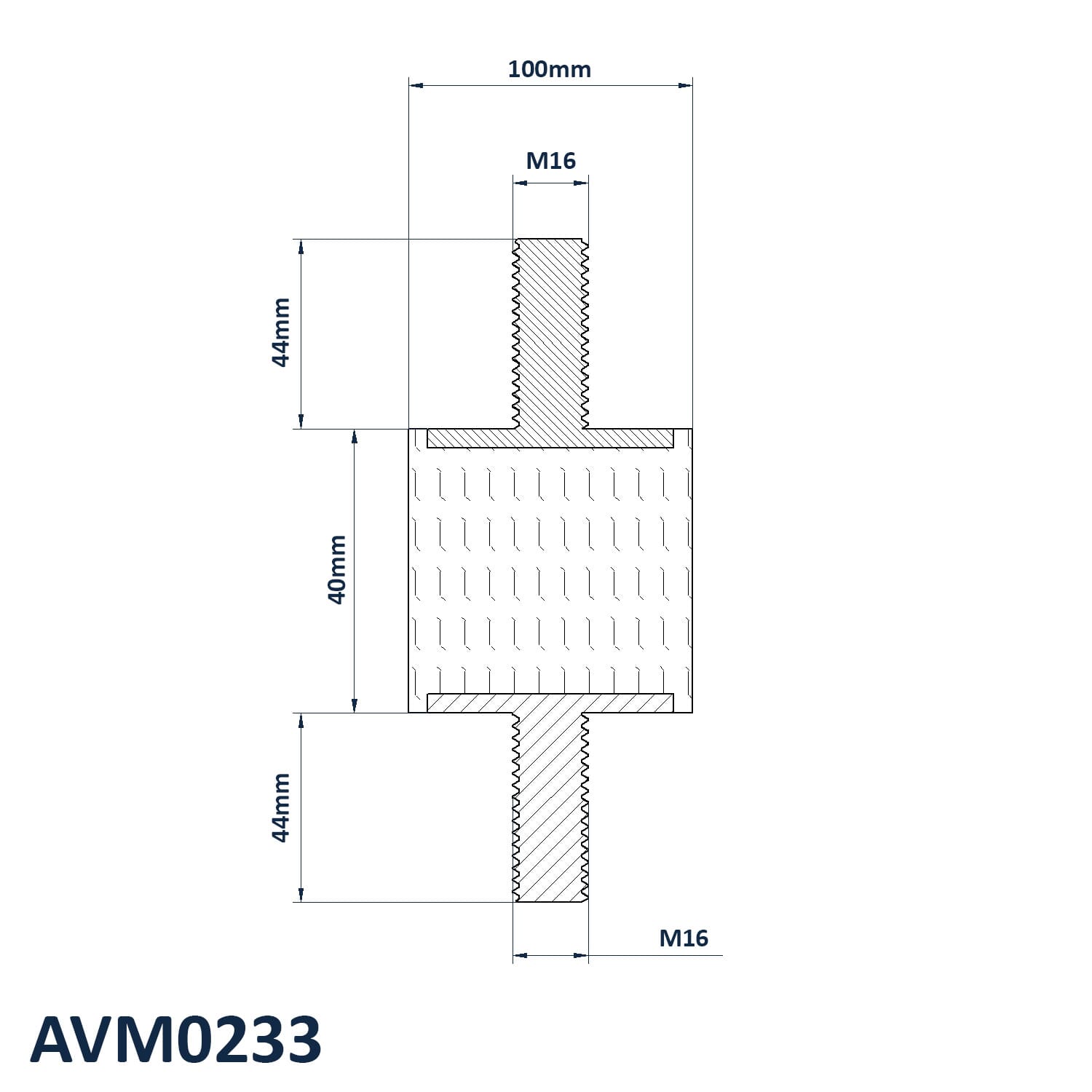

M16 x 44mm Male to Male Anti Vibration Mount Dimensions
- Diameter: 100mm
- Height: 40mm
- Thread Size: M16
- Thread Length: 44mm
- Type: Male to Male
- Shore Hardness: 60 IRHD
- Weight Rating: 670kg
- Deflection: 3.2mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a male to male bobbin when both sides of the installation need an exposed threaded fixing for nuts, tapped plates or matching bracket locations. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
