M6 x 18mm Anti-Vibration Mount - Male-Female Bobbin (Weight Rating 35kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 249 | £1.92 | £2.30 |
| 250 - 499 | £1.82 | £2.19 |
| 500 - 999 | £1.68 | £2.02 |
| 1000 - 2499 | £1.63 | £1.96 |
| 2500 + | £1.52 | £1.83 |
£2.30 / each
.png)
Product Specification
| Diameter | 25mm |
| Height | 15mm |
| Thread Size | M6 |
| Thread Length | 18mm |
| Type | Male to Female |
| Shore Hardness | 60 IRHD |
| Weight Rating | 35kg |
| Deflection | 1.2mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M6 x 18mm Male to Female Anti Vibration Mount | 25mm x 15mm Bobbin | 35kg Weight Rating | Zinc Steel & Natural Rubber
Ideal for lighting frames, the 25mm x 15mm male to female anti-vibration bobbin provides a neat vibration control point where space and fixing access are limited.
This male to female arrangement gives one projecting thread and one tapped fixing point, making it useful where access differs on each side of the assembly. The specified 35kg load capacity makes the mount easier to match to equipment weight and expected movement. The format supports sheet metal fixing, bracket isolation and equipment cover mounting where vibration control is needed.
Common Applications
- Mounting industrial lighting frames
- Supporting commercial appliance panels
- Mounting industrial sensor housings
- Mounting generator covers

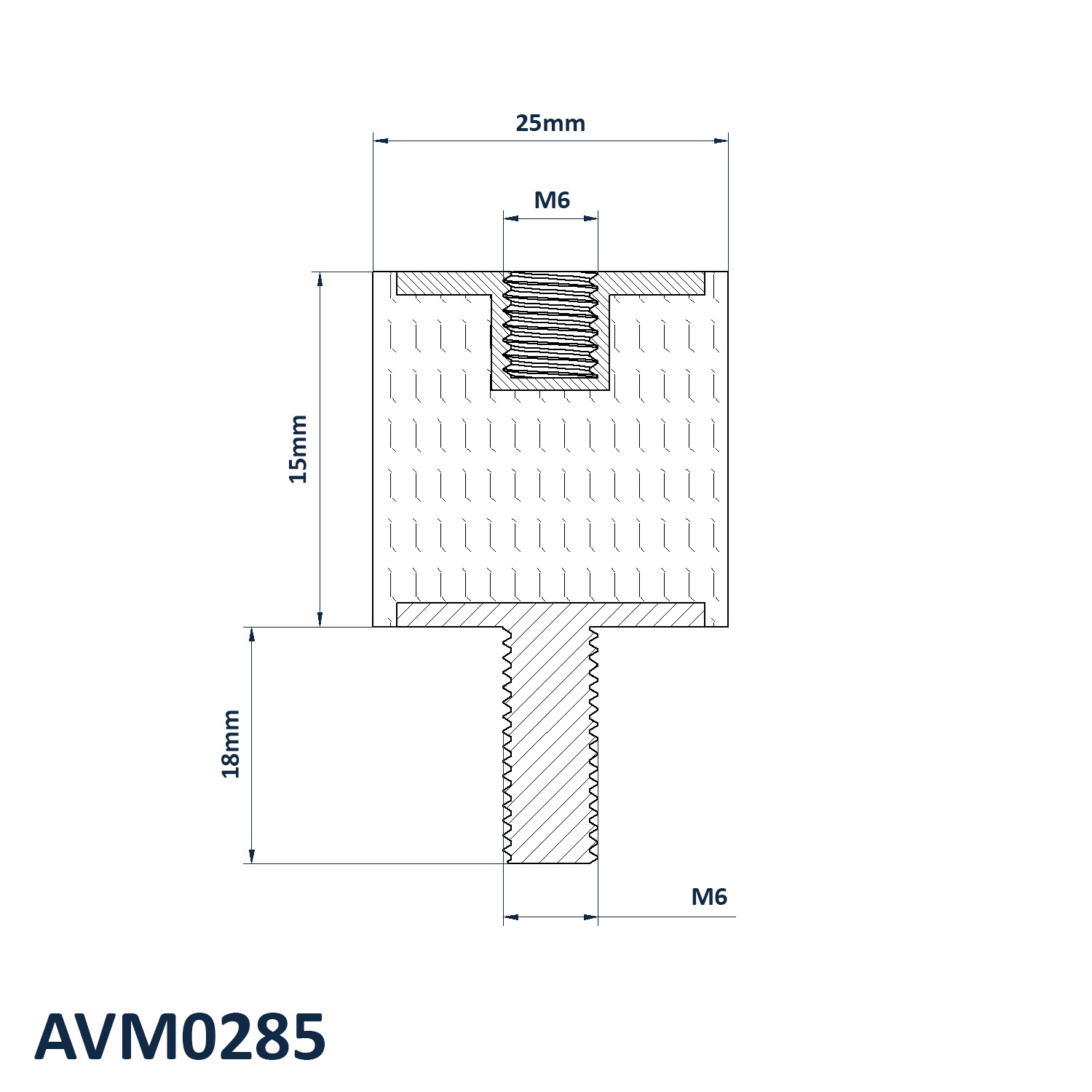

M6 x 18mm Male to Female Anti Vibration Mount Dimensions
- Diameter: 25mm
- Height: 15mm
- Thread Size: M6
- Thread Length: 18mm
- Type: Male to Female
- Shore Hardness: 60 IRHD
- Weight Rating: 35kg
- Deflection: 1.2mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a male to female bobbin when one side needs a projecting stud and the opposite side needs a recessed internal thread for a bolt or mating component. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
