M12 x 37mm Anti-Vibration Mount - Male-Male Bobbin (Weight Rating 211kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £18.89 | £22.67 |
| 2 - 249 | £18.88 | £22.65 |
| 250 - 499 | £17.53 | £21.04 |
| 500 - 999 | £16.18 | £19.42 |
| 1000 - 2499 | £14.83 | £17.80 |
| 2500 + | £13.48 | £16.18 |
£22.67 / each
Product Specification
| Diameter | 70mm |
| Height | 50mm |
| Thread Size | M12 |
| Thread Length | 37mm |
| Type | Male to Male |
| Shore Hardness | 60 IRHD |
| Weight Rating | 211kg |
| Deflection | 4.4mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M12 x 37mm Male to Male Anti Vibration Mount | 70mm x 50mm Bobbin | 211kg Weight Rating | Zinc Steel & Natural Rubber
Frequently specified for trailer manufacture, this M12 male to male bonded rubber mount offers a simple rubber mounting solution for light to heavy duty assemblies.
The format supports sheet metal fixing, bracket isolation and equipment cover mounting where vibration control is needed. Because both sides are male threaded, this mount can be secured with nuts or threaded receiving points on each side. That makes it suitable for equipment where a positive external fixing is needed at both ends. A 4.4mm deflection value helps the mount cushion movement while maintaining a stable fixing point.
Common Applications
- Cushioning storage system components
- Mounting small gearbox housings
- Cushioning low-voltage equipment panels
- Securing pump brackets

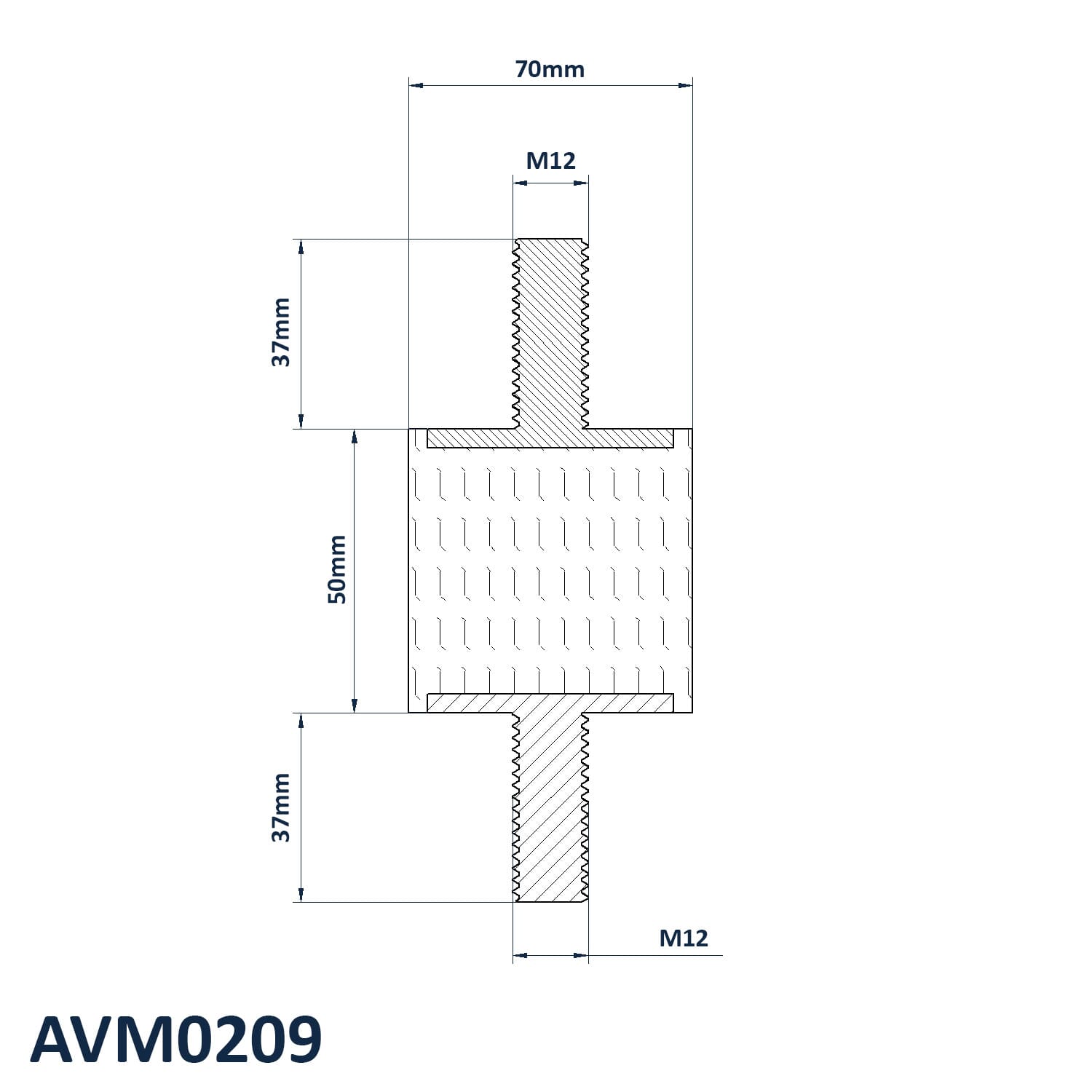

M12 x 37mm Male to Male Anti Vibration Mount Dimensions
- Diameter: 70mm
- Height: 50mm
- Thread Size: M12
- Thread Length: 37mm
- Type: Male to Male
- Shore Hardness: 60 IRHD
- Weight Rating: 211kg
- Deflection: 4.4mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a male to male bobbin when both sides of the installation need an exposed threaded fixing for nuts, tapped plates or matching bracket locations. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
