M8 x 20mm Anti-Vibration Mount - Male-Female Bobbin (Weight Rating 42kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £2.60 | £3.12 |
| 2 - 249 | £2.59 | £3.11 |
| 250 - 499 | £2.41 | £2.89 |
| 500 - 999 | £2.23 | £2.67 |
| 1000 - 2499 | £2.04 | £2.45 |
| 2500 + | £1.85 | £2.22 |
£3.12 / each
Product Specification
| Diameter | 30mm |
| Height | 15mm |
| Thread Size | M8 |
| Thread Length | 20mm |
| Type | Male to Female |
| Shore Hardness | 60 IRHD |
| Weight Rating | 42kg |
| Deflection | 1.1mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M8 x 20mm Male to Female Anti Vibration Mount | 30mm x 15mm Bobbin | 42kg Weight Rating | Zinc Steel & Natural Rubber
Specified in pump installations, the 30mm x 15mm rubber bobbin buffer is used where a bonded rubber mount can protect connected parts from operational shock.
This makes it suitable as a rubber machinery foot, equipment isolator or anti vibration bobbin in compact builds. The male to female design helps reduce overall projection compared with two exposed studs while still giving a secure threaded fixing on both sides of the rubber bobbin. The bonded construction helps resist separation under normal compression and shear loading.
Common Applications
- Mounting small electric motors
- Supporting agricultural control boxes
- Isolating cooling fan assemblies
- Reducing resonance in frame assemblies

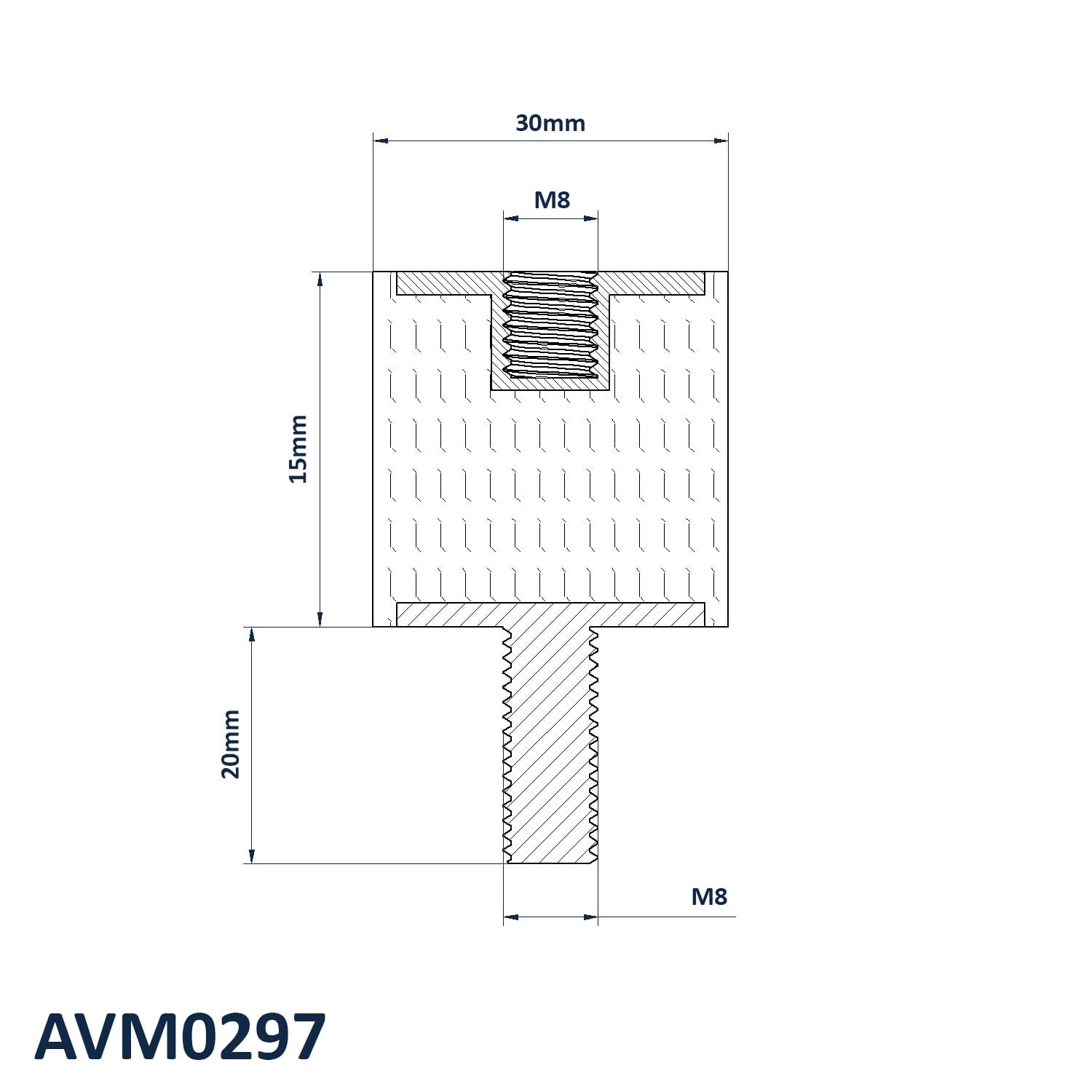

M8 x 20mm Male to Female Anti Vibration Mount Dimensions
- Diameter: 30mm
- Height: 15mm
- Thread Size: M8
- Thread Length: 20mm
- Type: Male to Female
- Shore Hardness: 60 IRHD
- Weight Rating: 42kg
- Deflection: 1.1mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a male to female bobbin when one side needs a projecting stud and the opposite side needs a recessed internal thread for a bolt or mating component. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
