M8 x 23mm Anti-Vibration Mount - Male-Female Bobbin (Weight Rating 57kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £4.48 | £5.38 |
| 2 - 249 | £4.39 | £5.27 |
| 250 - 499 | £4.31 | £5.17 |
| 500 - 999 | £4.22 | £5.06 |
| 1000 - 2499 | £4.13 | £4.96 |
| 2500 + | £4.05 | £4.86 |
£5.38 / each
.png)
Product Specification
| Diameter | 40mm |
| Height | 35mm |
| Thread Size | M8 |
| Thread Length | 23mm |
| Type | Male to Female |
| Shore Hardness | 60 IRHD |
| Weight Rating | 57kg |
| Deflection | 3.1mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M8 x 23mm Male to Female Anti Vibration Mount | 40mm x 35mm Bobbin | 57kg Weight Rating | Zinc Steel & Natural Rubber
Suitable for maintenance and repair, the 40mm x 35mm rubber bobbin buffer is built for mounting parts that need separation from vibration and mechanical noise.
A 3.1mm deflection value helps the mount cushion movement while maintaining a stable fixing point. Because the mount has one male thread and one female thread, it suits mixed fixing layouts where a stud is needed on one face and a recessed threaded connection is preferred on the other. This makes it suitable as a rubber machinery foot, equipment isolator or anti vibration bobbin in compact builds.
Common Applications
- Securing workshop machinery covers
- Fixing air handling unit panels
- Supporting display equipment housings
- Cushioning mechanical stop assemblies

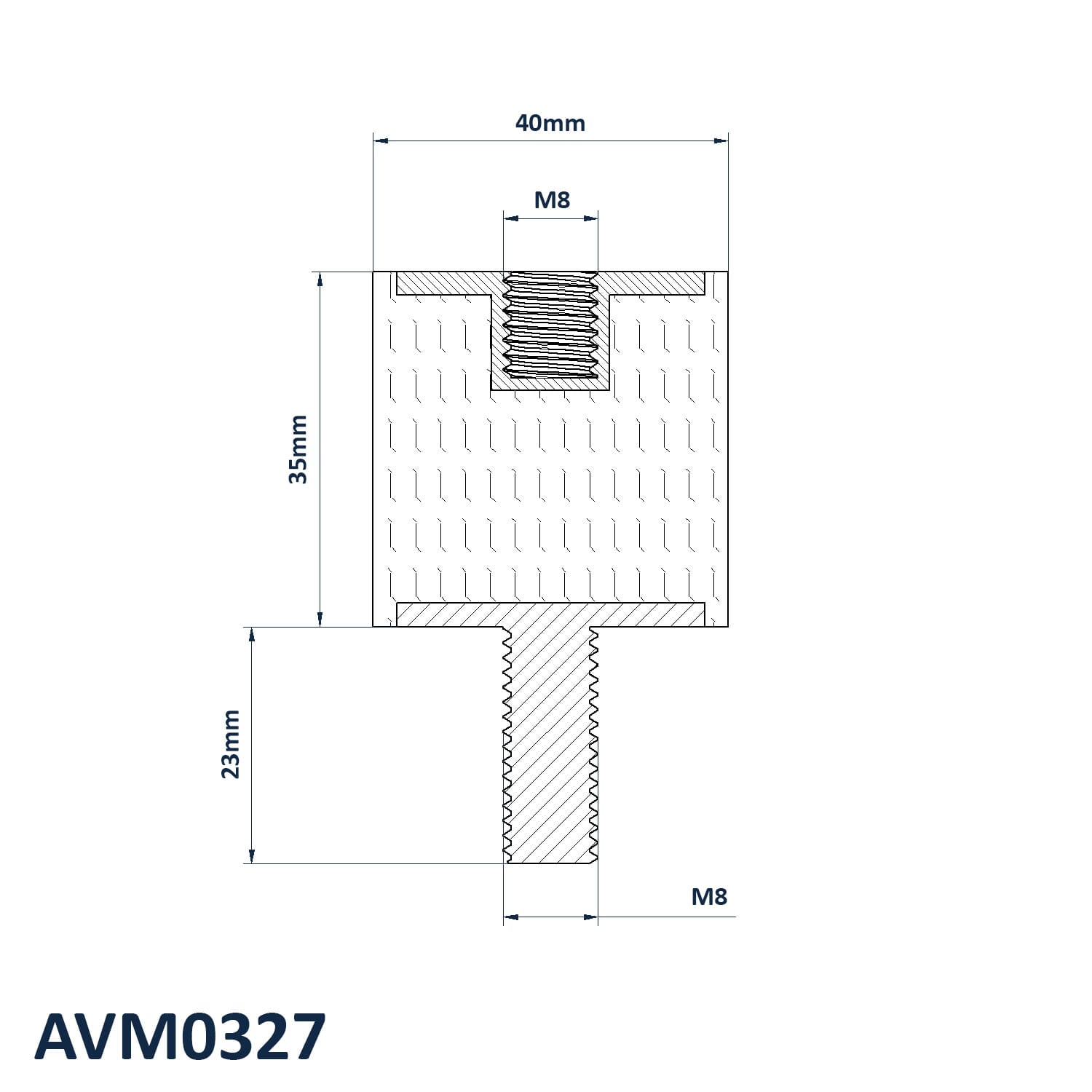

M8 x 23mm Male to Female Anti Vibration Mount Dimensions
- Diameter: 40mm
- Height: 35mm
- Thread Size: M8
- Thread Length: 23mm
- Type: Male to Female
- Shore Hardness: 60 IRHD
- Weight Rating: 57kg
- Deflection: 3.1mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a male to female bobbin when one side needs a projecting stud and the opposite side needs a recessed internal thread for a bolt or mating component. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
