M10 x 25mm Anti-Vibration Mount - Male-Female Bobbin (Weight Rating 129kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £15.00 | £18.00 |
| 2 - 249 | £14.99 | £17.99 |
| 250 - 499 | £13.92 | £16.70 |
| 500 - 999 | £12.85 | £15.42 |
| 1000 - 2499 | £11.78 | £14.13 |
| 2500 + | £10.71 | £12.85 |
£18.00 / each
.png)
Product Specification
| Diameter | 70mm |
| Height | 45mm |
| Thread Size | M10 |
| Thread Length | 25mm |
| Type | Male to Female |
| Shore Hardness | 45 IRHD |
| Weight Rating | 129kg |
| Deflection | 3.9mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M10 x 25mm Male to Female Anti Vibration Mount | 70mm x 45mm Bobbin | 129kg Weight Rating | Zinc Steel & Natural Rubber
Designed for generator housings, this M10 rubber mounting buffer uses a rubber body measuring 70mm diameter x 45mm high to reduce vibration between connected components.
The male to female bobbin style uses an external threaded stud on one side and an internal female thread on the opposite side. This is chosen when one side screws into a mounting point while the other accepts a bolt or stud. Bonded zinc steel and natural rubber construction gives a durable mounting point for repeated equipment vibration. It is a practical choice for maintenance teams replacing worn rubber mounts, machine buffers or noise control fixings.
Common Applications
- Fixing roof unit covers
- Supporting compressor feet
- Reducing noise in production equipment
- Isolating cooling fan assemblies

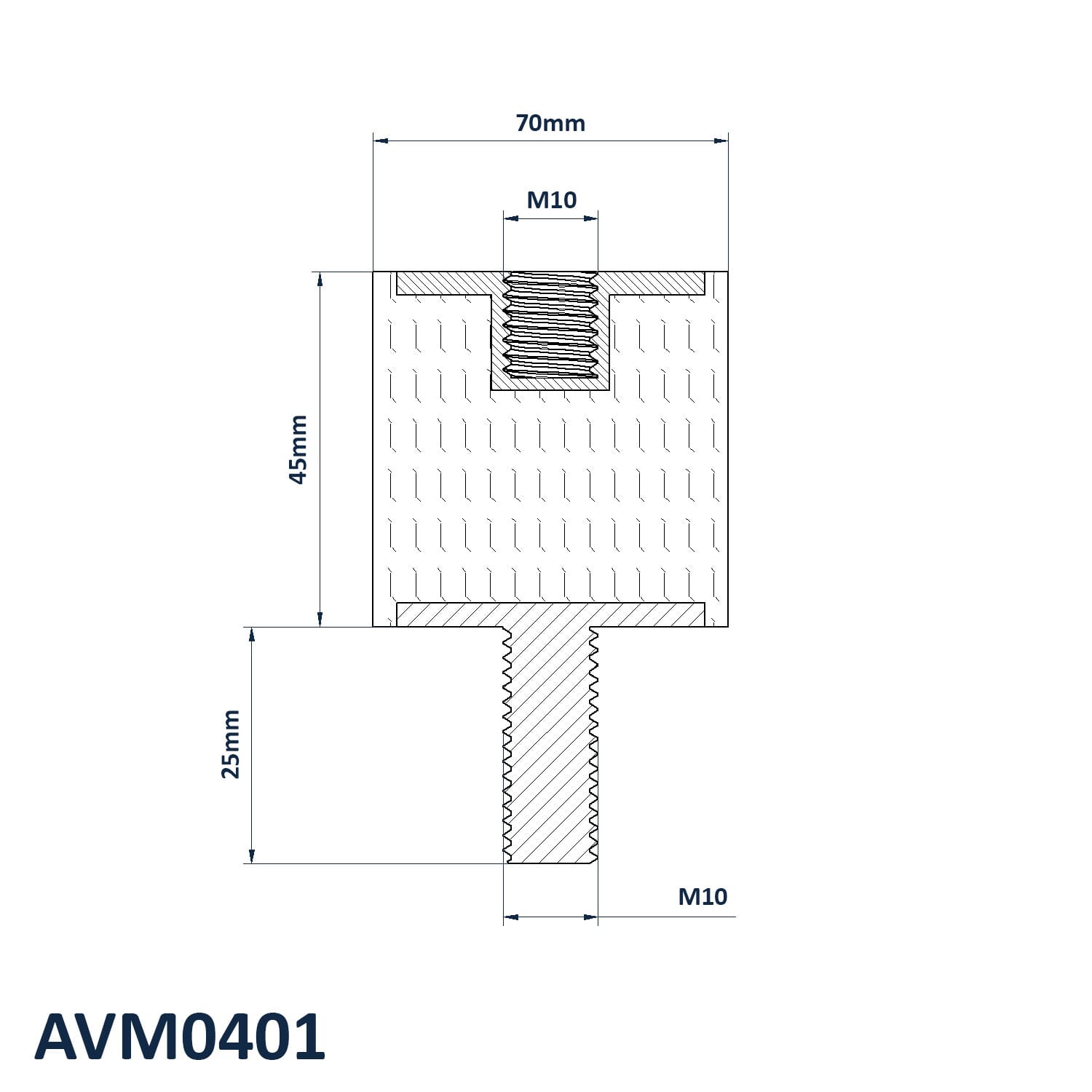

M10 x 25mm Male to Female Anti Vibration Mount Dimensions
- Diameter: 70mm
- Height: 45mm
- Thread Size: M10
- Thread Length: 25mm
- Type: Male to Female
- Shore Hardness: 45 IRHD
- Weight Rating: 129kg
- Deflection: 3.9mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a male to female bobbin when one side needs a projecting stud and the opposite side needs a recessed internal thread for a bolt or mating component. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
