M4 Anti-Vibration Mount - Female-Female Bobbin (Weight Rating 11.2kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £1.46 | £1.75 |
| 2 - 249 | £1.45 | £1.74 |
| 250 - 499 | £1.34 | £1.61 |
| 500 - 999 | £1.24 | £1.49 |
| 1000 - 2499 | £1.14 | £1.37 |
| 2500 + | £1.03 | £1.24 |
£1.75 / each
.png)
Product Specification
| Diameter | 15mm |
| Height | 15mm |
| Thread Size | M4 |
| Thread Length | N/A |
| Type | Female to Female |
| Shore Hardness | 60 IRHD |
| Weight Rating | 11.2kg |
| Deflection | 1.3mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M4 Female to Female Anti Vibration Mount | 15mm x 15mm Bobbin | 11.2kg Weight Rating | Zinc Steel & Natural Rubber
Providing isolation for workshop fabrication, the M4 female to female bonded rubber mount is suited to frames, panels and equipment covers that need a resilient fixing.
Because both sides are internally threaded, the bobbin can be fixed with chosen bolt lengths to suit panel thickness, access restrictions or maintenance requirements. A 1.3mm deflection value helps the mount cushion movement while maintaining a stable fixing point. It can be specified as a rubber isolation mount, machine mounting bobbin or shock absorbing rubber buffer within the wider assembly.
Common Applications
- Attaching instrument panels
- Protecting inspection equipment
- Mounting dust extraction units
- Mounting vibration-prone bracketry

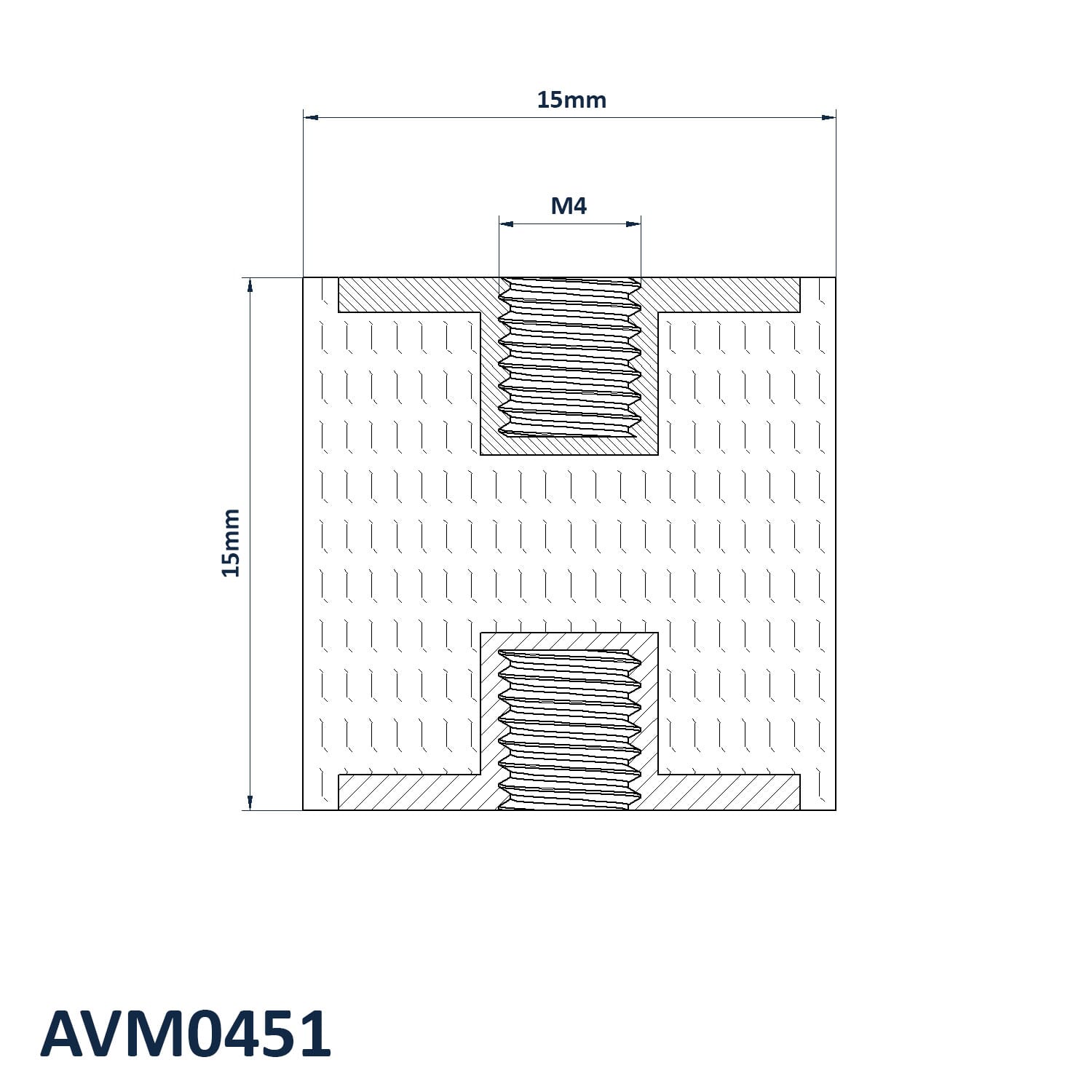

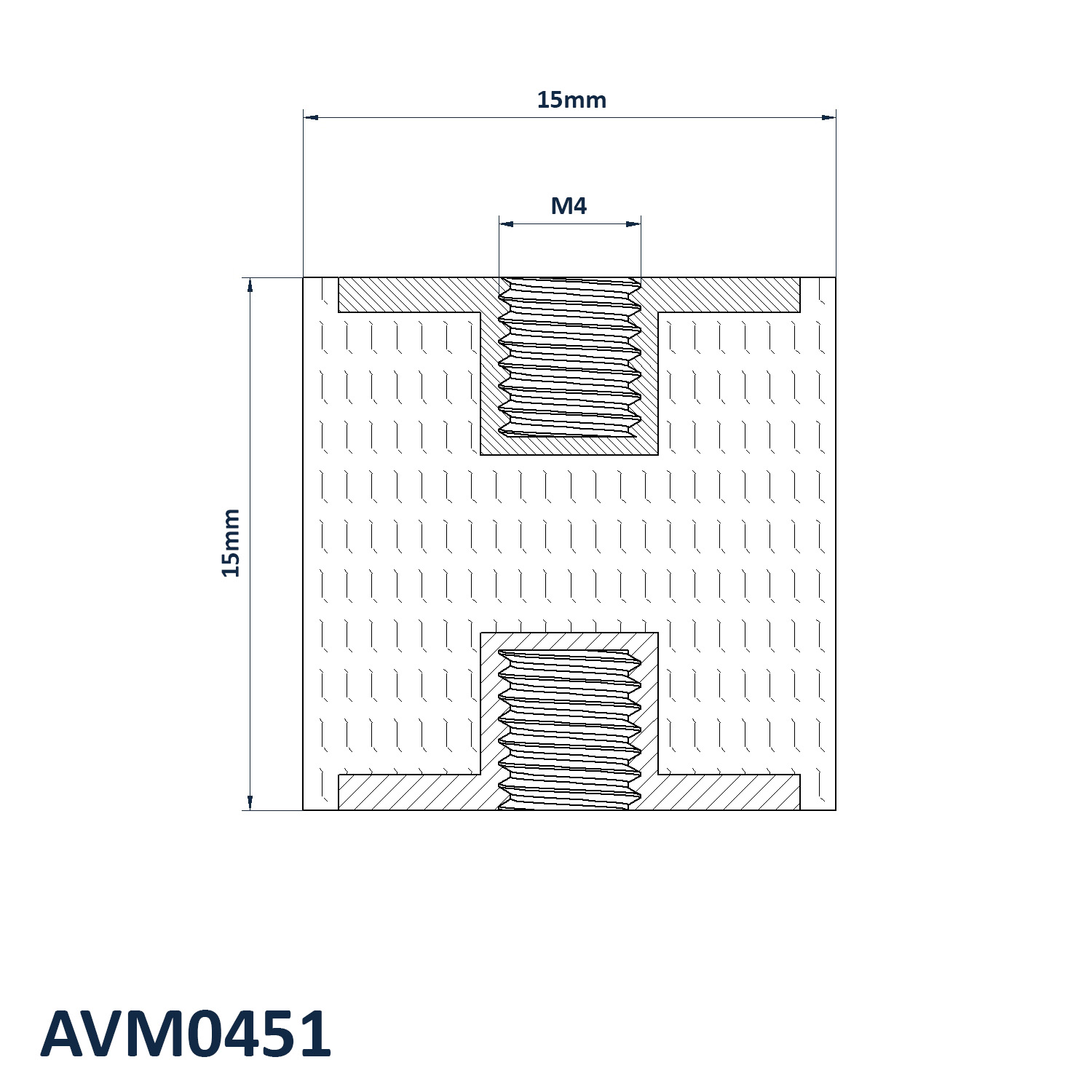

M4 15mm x 15mm Female to Female Anti Vibration Mount Dimensions
- Diameter: 15mm
- Height: 15mm
- Thread Size: M4
- Type: Female to Female
- Shore Hardness: 60 IRHD
- Weight Rating: 11.2kg
- Deflection: 1.3mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a female to female bobbin when both sides need to accept separate bolts and a lower profile mount is preferred before assembly. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
