M6 Anti-Vibration Mount - Female-Female Bobbin (Weight Rating 13.7kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £1.65 | £1.98 |
| 2 - 249 | £1.64 | £1.97 |
| 250 - 499 | £1.52 | £1.83 |
| 500 - 999 | £1.41 | £1.69 |
| 1000 - 2499 | £1.29 | £1.55 |
| 2500 + | £1.18 | £1.41 |
£1.98 / each
.png)
Product Specification
| Diameter | 20mm |
| Height | 20mm |
| Thread Size | M6 |
| Thread Length | N/A |
| Type | Female to Female |
| Shore Hardness | 60 IRHD |
| Weight Rating | 13.7kg |
| Deflection | 1.6mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M6 Female to Female Anti Vibration Mount | 20mm x 20mm Bobbin | 13.7kg Weight Rating | Zinc Steel & Natural Rubber
Engineered for sheet metal fabrication, the M6 female to female rubber bobbin mount combines a compact 20mm x 20mm rubber bobbin with bonded metal fixings for controlled isolation.
The bonded construction helps resist separation under normal compression and shear loading. The female to female bobbin has internal threaded inserts at both ends. This is useful where bolts are fitted from each side and no fixed stud should protrude before assembly. It suits projects needing a natural rubber isolator, bonded metal mount or resilient machinery fixing.
Common Applications
- Mounting laboratory instrument feet
- Supporting automation cell guards
- Fixing battery enclosure sections
- Isolating fan housings from panels

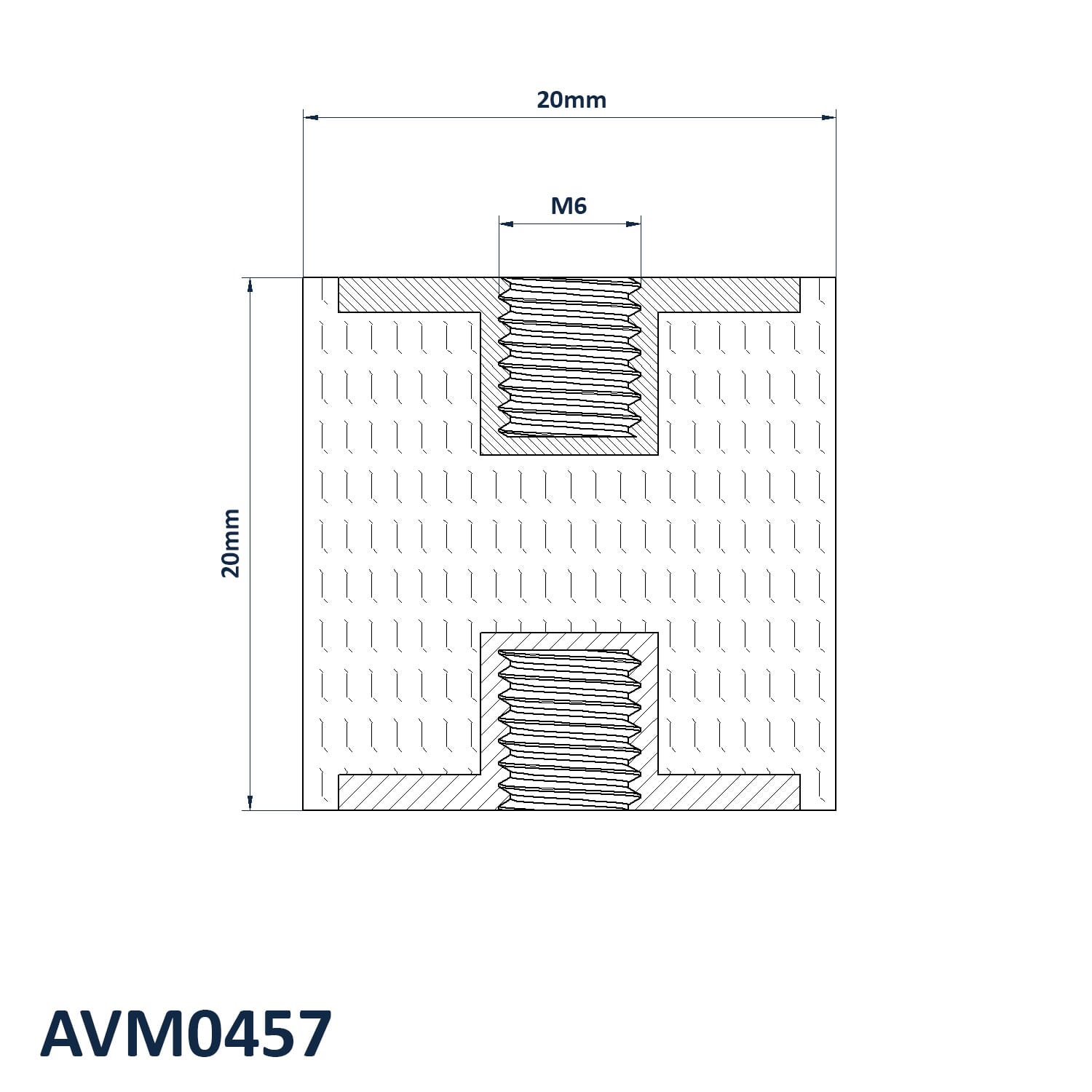

M6 20mm x 20mm Female to Female Anti Vibration Mount Dimensions
- Diameter: 20mm
- Height: 20mm
- Thread Size: M6
- Type: Female to Female
- Shore Hardness: 60 IRHD
- Weight Rating: 13.7kg
- Deflection: 1.6mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a female to female bobbin when both sides need to accept separate bolts and a lower profile mount is preferred before assembly. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
