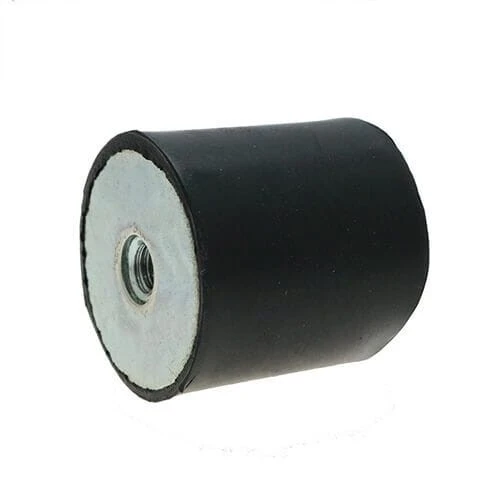

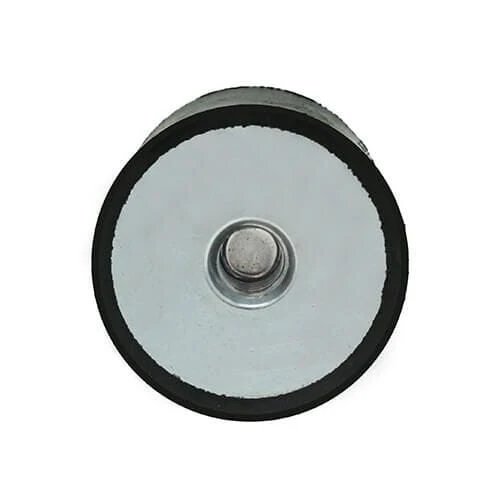

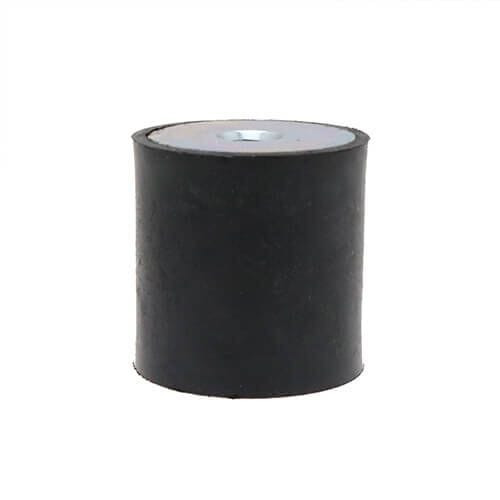

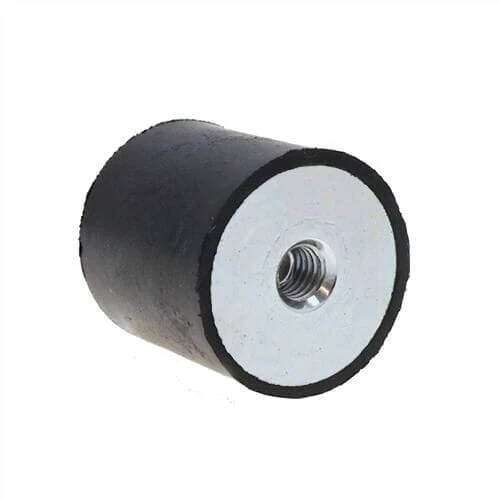

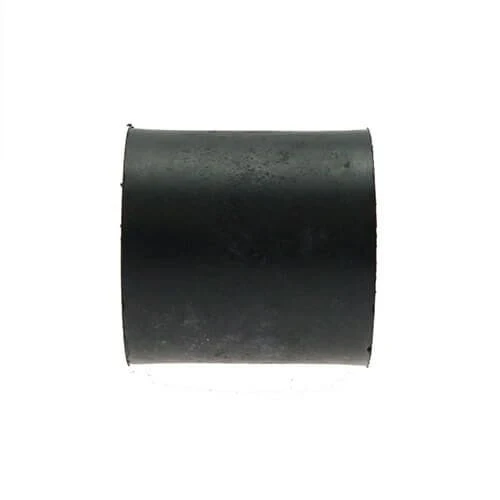

M8 Anti-Vibration Mount - Female-Female Bobbin (Weight Rating 65kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £3.35 | £4.02 |
| 2 - 249 | £3.34 | £4.01 |
| 250 - 499 | £3.10 | £3.72 |
| 500 - 999 | £2.86 | £3.43 |
| 1000 - 2499 | £2.62 | £3.15 |
| 2500 + | £2.38 | £2.86 |
£4.02 / each
.png)
Product Specification
| Diameter | 30mm |
| Height | 40mm |
| Thread Size | M8 |
| Thread Length | N/A |
| Type | Female to Female |
| Shore Hardness | 60 IRHD |
| Weight Rating | 65kg |
| Deflection | 2.6mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M8 Female to Female Anti Vibration Mount | 30mm x 40mm Bobbin | 65kg Weight Rating | Zinc Steel & Natural Rubber
Offering a practical fixing point for production lines, this M8 female to female equipment isolator helps cushion equipment while keeping the installation compact.
The female to female arrangement provides a lower-profile fixing before installation, accepting male threaded fasteners into both ends of the rubber body. Its rubber body provides vibration isolation without the need for complex brackets or separate damping pads. It is a practical choice for maintenance teams replacing worn rubber mounts, machine buffers or noise control fixings.
Common Applications
- Supporting signage housings
- Protecting transit case internals
- Mounting pump base plates
- Supporting mobile equipment panels
M8 30mm x 40mm Female to Female Anti Vibration Mount Dimensions
- Diameter: 30mm
- Height: 40mm
- Thread Size: M8
- Type: Female to Female
- Shore Hardness: 60 IRHD
- Weight Rating: 65kg
- Deflection: 2.6mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a female to female bobbin when both sides need to accept separate bolts and a lower profile mount is preferred before assembly. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
