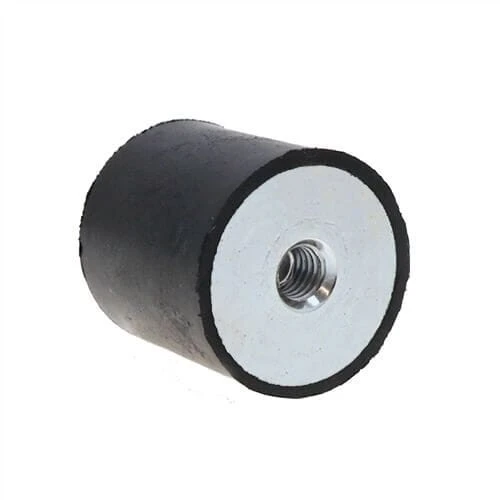

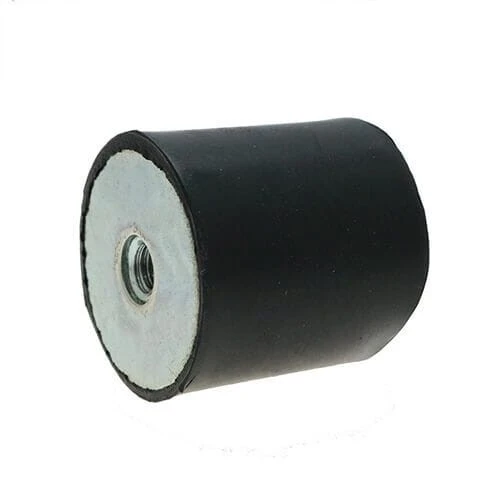

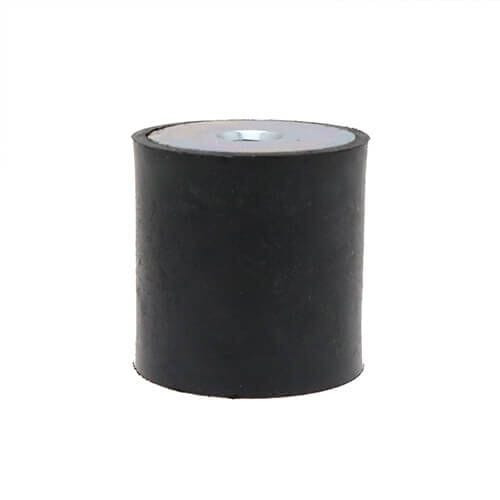

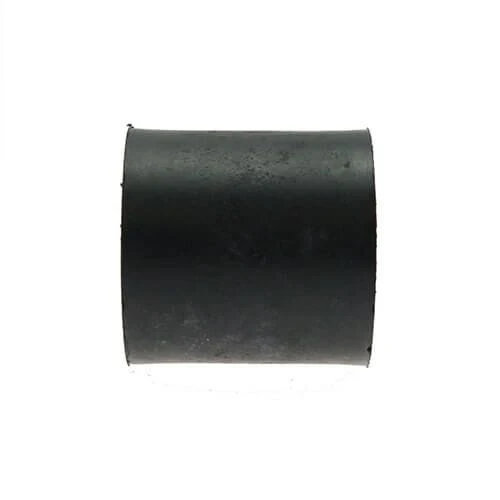

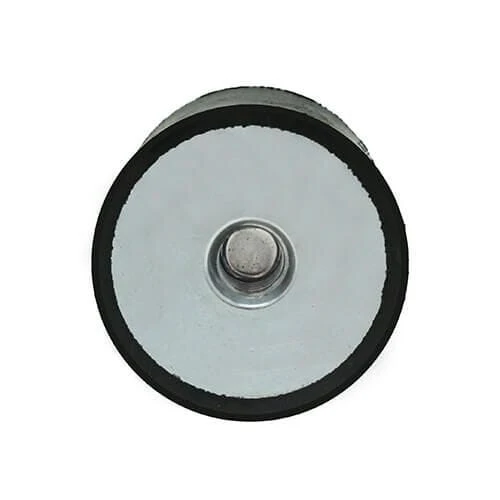

M16 Anti-Vibration Mount - Female-Female Bobbin (Weight Rating 450kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £26.50 | £31.80 |
| 2 - 249 | £26.49 | £31.79 |
| 250 - 499 | £24.60 | £29.52 |
| 500 - 999 | £22.71 | £27.25 |
| 1000 - 2499 | £20.82 | £24.98 |
| 2500 + | £18.93 | £22.71 |
£31.80 / each
Product Specification
| Diameter | 95mm |
| Height | 75mm |
| Thread Size | M16 |
| Thread Length | N/A |
| Type | Female to Female |
| Shore Hardness | 60 IRHD |
| Weight Rating | 450kg |
| Deflection | 6.7mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M16 Female to Female Anti Vibration Mount | 95mm x 75mm Bobbin | 450kg Weight Rating | Zinc Steel & Natural Rubber
Developed for engineering equipment, this M16 rubber mounting buffer supports reliable mounting where a controlled amount of deflection is required.
It is a practical choice for maintenance teams replacing worn rubber mounts, machine buffers or noise control fixings. The female to female arrangement provides a lower-profile fixing before installation, accepting male threaded fasteners into both ends of the rubber body. The mount offers a resilient buffer between connected parts, helping reduce noise from fans, motors and moving assemblies.
Common Applications
- Reducing noise in production equipment
- Isolating cooling fan assemblies
- Securing fabricated access doors
- Fixing battery enclosure sections

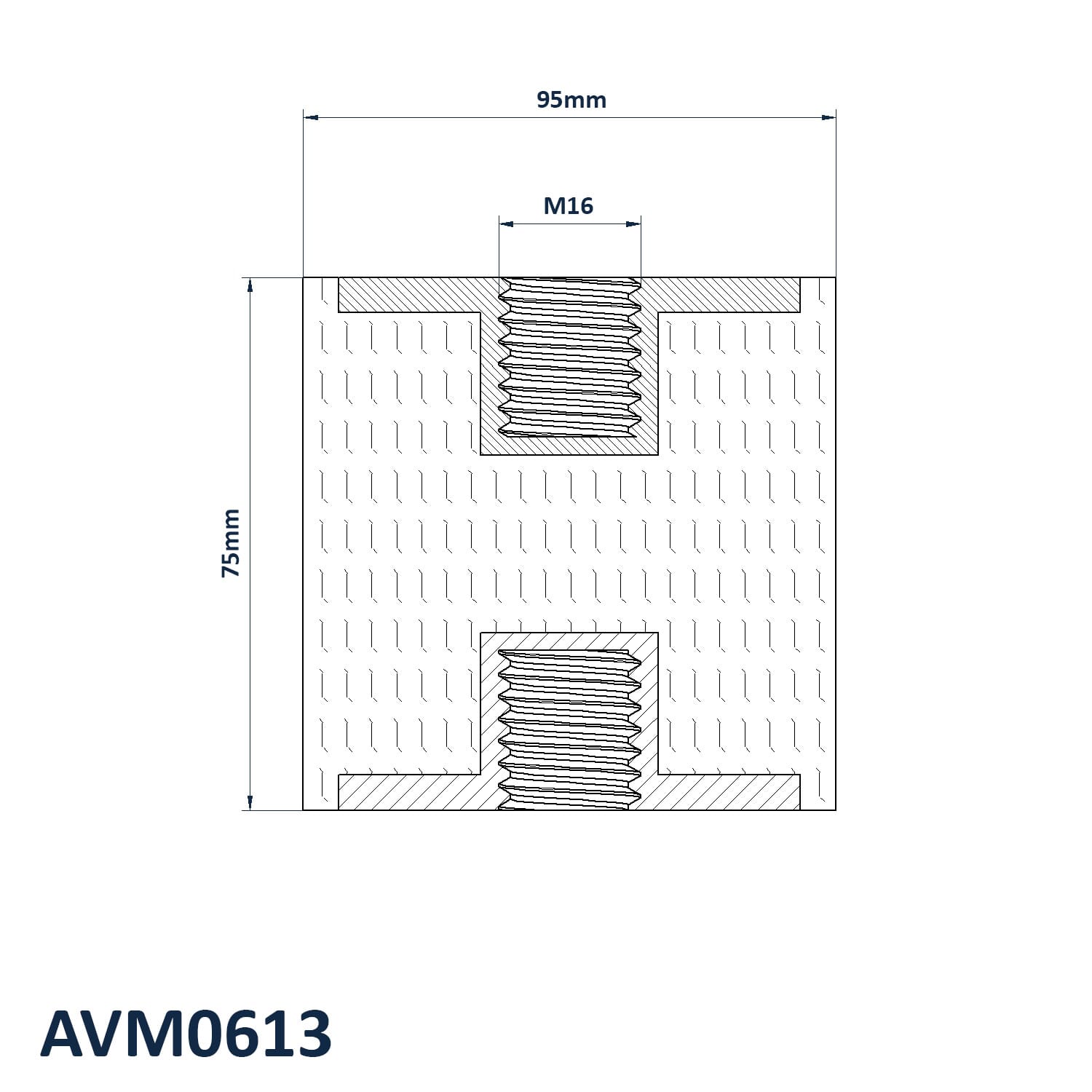

M16 95mm x 75mm Female to Female Anti Vibration Mount Dimensions
- Diameter: 95mm
- Height: 75mm
- Thread Size: M16
- Type: Female to Female
- Shore Hardness: 60 IRHD
- Weight Rating: 450kg
- Deflection: 6.7mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a female to female bobbin when both sides need to accept separate bolts and a lower profile mount is preferred before assembly. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
