M16 Anti-Vibration Mount - Female-Female Bobbin (Weight Rating 270kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £32.97 | £39.56 |
| 2 - 249 | £32.31 | £38.77 |
| 250 - 499 | £31.66 | £37.99 |
| 500 - 999 | £31.02 | £37.23 |
| 1000 - 2499 | £30.41 | £36.49 |
| 2500 + | £29.80 | £35.76 |
£39.56 / each
Product Specification
| Diameter | 100mm |
| Height | 60mm |
| Thread Size | M16 |
| Thread Length | N/A |
| Type | Female to Female |
| Shore Hardness | 45 IRHD |
| Weight Rating | 270kg |
| Deflection | 5.2mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M16 Female to Female Anti Vibration Mount | 100mm x 60mm Bobbin | 270kg Weight Rating | Zinc Steel & Natural Rubber
Frequently specified for agricultural equipment, this M16 natural rubber vibration mount offers a simple rubber mounting solution for light to heavy duty assemblies.
The design works as a compact machine mount, panel vibration damper or rubber mounting buffer depending on the installation. With female threads on both faces, this mount allows separate bolts to be installed from either side. That makes it useful for enclosed frames, serviceable panels and assemblies where stud projection is not wanted. The specified 270kg load capacity makes the mount easier to match to equipment weight and expected movement.
Common Applications
- Supporting mobile equipment panels
- Supporting compressor feet
- Mounting aluminium framework
- Supporting electronics trays

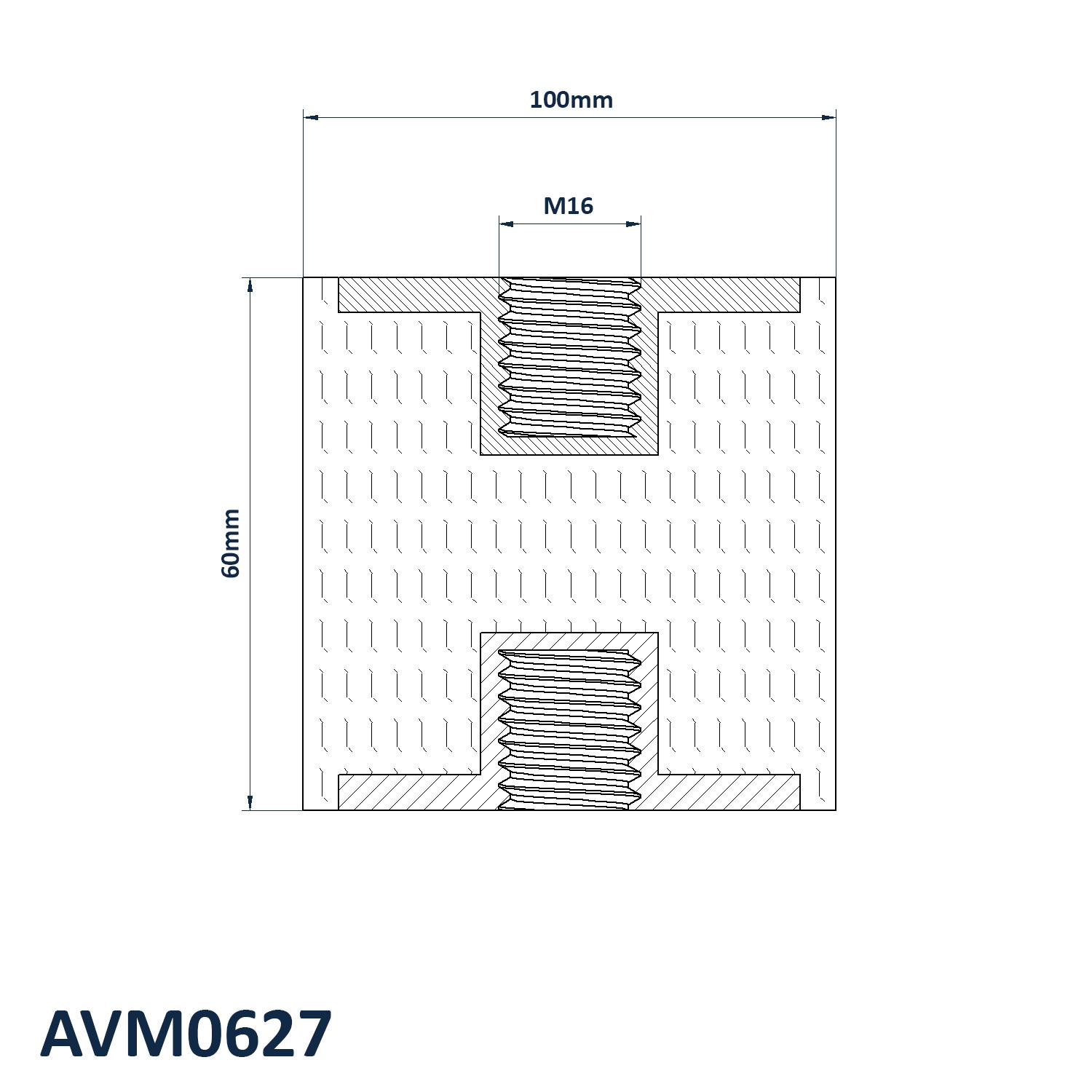

M16 100mm x 60mm Female to Female Anti Vibration Mount Dimensions
- Diameter: 100mm
- Height: 60mm
- Thread Size: M16
- Type: Female to Female
- Shore Hardness: 45 IRHD
- Weight Rating: 270kg
- Deflection: 5.2mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a female to female bobbin when both sides need to accept separate bolts and a lower profile mount is preferred before assembly. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
