M16 Anti-Vibration Mount - Female-Female Bobbin (Weight Rating 780kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £54.40 | £65.28 |
| 2 - 249 | £54.39 | £65.27 |
| 250 - 499 | £50.50 | £60.60 |
| 500 - 999 | £46.62 | £55.94 |
| 1000 - 2499 | £42.73 | £51.28 |
| 2500 + | £38.85 | £46.62 |
£65.28 / each
.png)
Product Specification
| Diameter | 120mm |
| Height | 75mm |
| Thread Size | M16 |
| Thread Length | N/A |
| Type | Female to Female |
| Shore Hardness | 60 IRHD |
| Weight Rating | 780kg |
| Deflection | 6.7mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M16 Female to Female Anti Vibration Mount | 120mm x 75mm Bobbin | 780kg Weight Rating | Zinc Steel & Natural Rubber
Designed for construction plant, this M16 female to female anti vibration mount uses a rubber body measuring 120mm diameter x 75mm high to reduce vibration between connected components.
The female to female bobbin has internal threaded inserts at both ends. This is useful where bolts are fitted from each side and no fixed stud should protrude before assembly. Its compact form helps reduce installation time where access around the mounting point is restricted. Typical search intent for this size includes threaded rubber mount, vibration control bobbin and anti-vibration fixing for equipment panels.
Common Applications
- Protecting inspection equipment
- Supporting electronics trays
- Supporting commercial appliance panels
- Reducing transferred movement in brackets

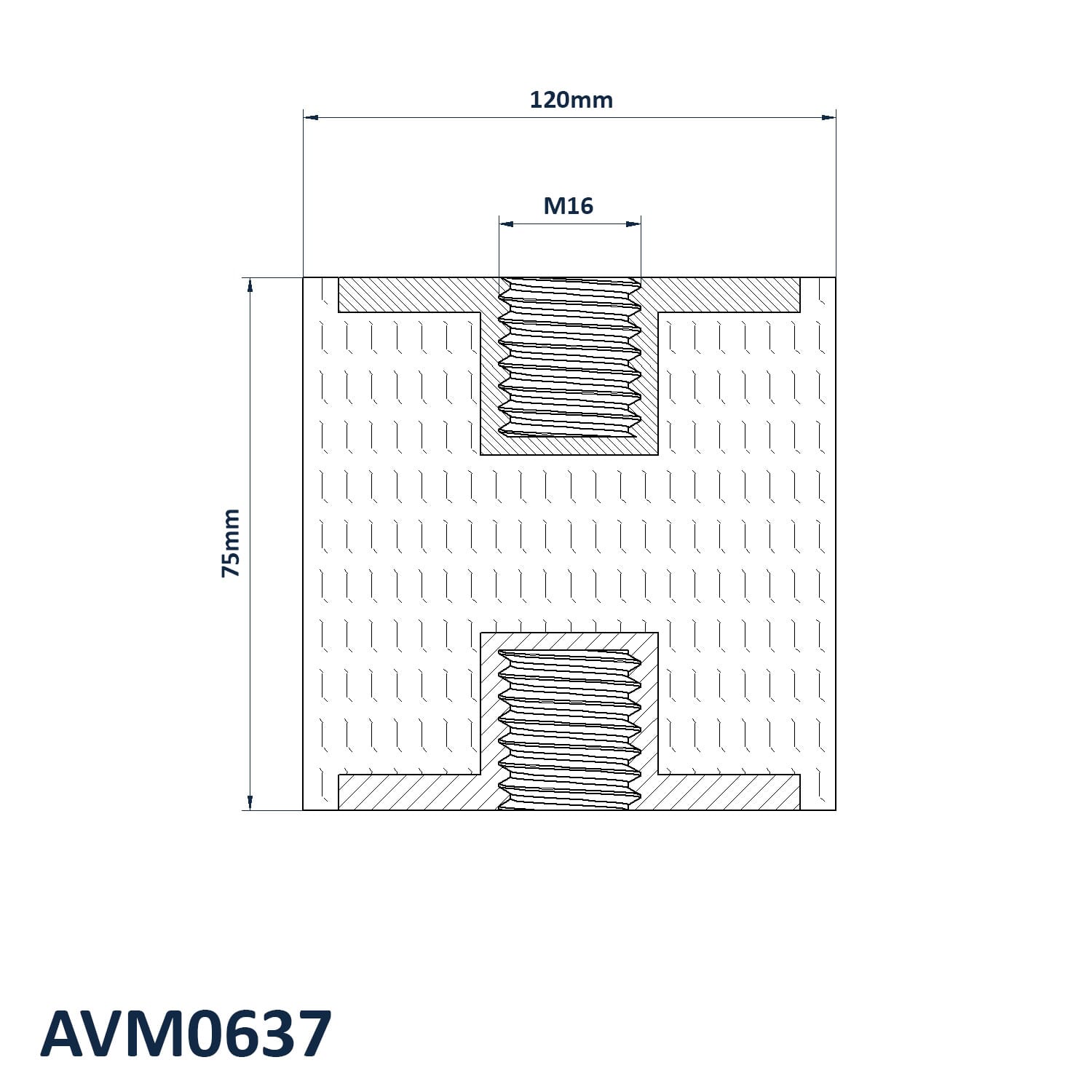

M16 120mm x 75mm Female to Female Anti Vibration Mount Dimensions
- Diameter: 120mm
- Height: 75mm
- Thread Size: M16
- Type: Female to Female
- Shore Hardness: 60 IRHD
- Weight Rating: 780kg
- Deflection: 6.7mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a female to female bobbin when both sides need to accept separate bolts and a lower profile mount is preferred before assembly. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
