M4 x 10mm Anti-Vibration Mount - Male-Male Bobbin (Weight Rating 2kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £1.27 | £1.53 |
| 2 - 249 | £1.26 | £1.51 |
| 250 - 499 | £1.18 | £1.41 |
| 500 - 999 | £1.08 | £1.30 |
| 1000 - 2499 | £0.99 | £1.19 |
| 2500 + | £0.90 | £1.08 |
Product Specification
| Diameter | 10mm |
| Height | 10mm |
| Thread Size | M4 |
| Thread Length | 10mm |
| Type | Male to Male |
| Shore Hardness | 45 IRHD |
| Weight Rating | 2kg |
| Deflection | 0.8mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M4 x 10mm Male to Male Anti Vibration Mount | 10mm x 10mm Bobbin | 2kg Weight Rating | Zinc Steel & Natural Rubber
Commonly used in conveyor equipment, this M4 rubber mounting buffer supports equipment where noise, movement and transferred shock need to be reduced.
The mount offers a resilient buffer between connected parts, helping reduce noise from fans, motors and moving assemblies. Because both sides are male threaded, this mount can be secured with nuts or threaded receiving points on each side. That makes it suitable for equipment where a positive external fixing is needed at both ends. The format supports sheet metal fixing, bracket isolation and equipment cover mounting where vibration control is needed.
Common Applications
- Supporting electronics trays
- Supporting commercial appliance panels
- Reducing transferred movement in brackets
- Reducing vibration in control cabinets

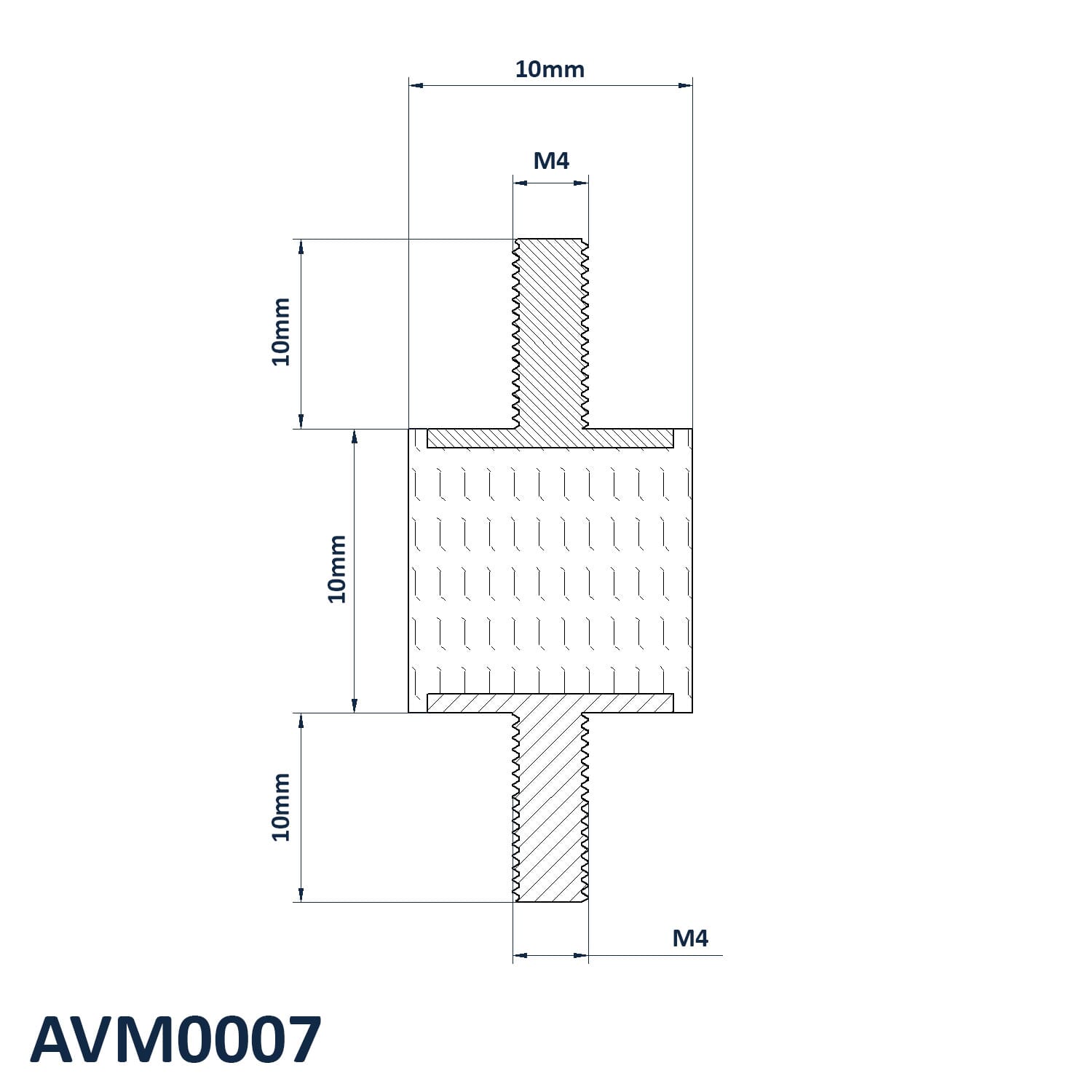

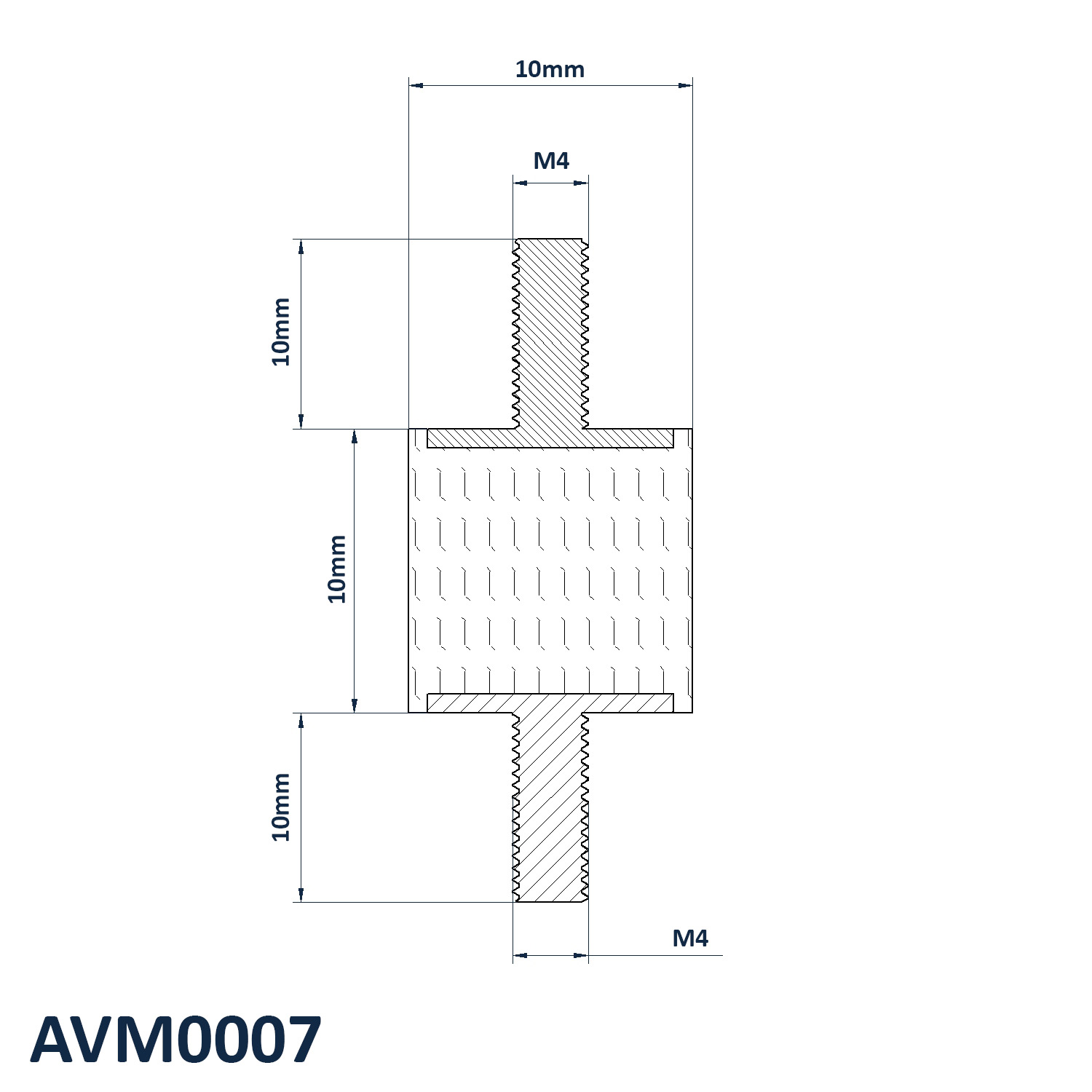

M4 x 10mm Male to Male Anti Vibration Mount Dimensions
- Diameter: 10mm
- Height: 10mm
- Thread Size: M4
- Thread Length: 10mm
- Type: Male to Male
- Shore Hardness: 45 IRHD
- Weight Rating: 2kg
- Deflection: 0.8mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a male to male bobbin when both sides of the installation need an exposed threaded fixing for nuts, tapped plates or matching bracket locations. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
