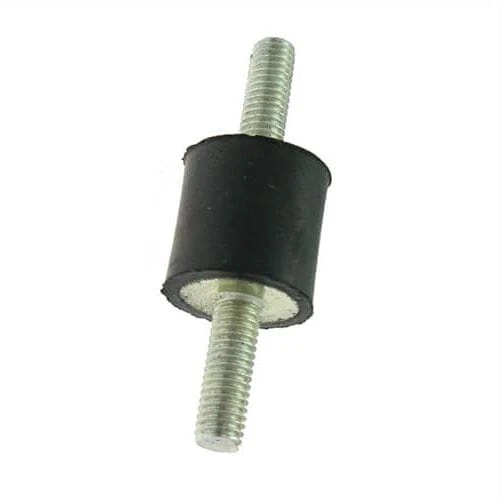

M4 x 10mm Anti-Vibration Mount - Male-Male Bobbin (Weight Rating 4.5kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £1.27 | £1.52 |
| 2 - 249 | £1.26 | £1.51 |
| 250 - 499 | £1.17 | £1.40 |
| 500 - 999 | £1.07 | £1.29 |
| 1000 - 2499 | £0.99 | £1.19 |
| 2500 + | £0.90 | £1.08 |
Product Specification
| Diameter | 11mm |
| Height | 11mm |
| Thread Size | M4 |
| Thread Length | 10mm |
| Type | Male to Male |
| Shore Hardness | 60 IRHD |
| Weight Rating | 4.5kg |
| Deflection | 0.5mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M4 x 10mm Male to Male Anti Vibration Mount | 11mm x 11mm Bobbin | 4.5kg Weight Rating | Zinc Steel & Natural Rubber
Suitable for storage systems, the M4 male to male vibration damper mount is built for mounting parts that need separation from vibration and mechanical noise.
This size is useful when a reliable long-term fixing is needed without increasing the footprint of the mounted assembly. The male to male arrangement is chosen when two outward-facing threads are needed, allowing the rubber bobbin to sit centrally between the supported item and the mounting surface. The mount fits applications where a resilient fixing, vibration isolator or rubber mounting bobbin is required.
Common Applications
- Fitting operator control boxes
- Supporting production line attachments
- Cushioning access panels
- Isolating conveyor sensors
M4 x 10mm Male to Male Anti Vibration Mount Dimensions
- Diameter: 11mm
- Height: 11mm
- Thread Size: M4
- Thread Length: 10mm
- Type: Male to Male
- Shore Hardness: 60 IRHD
- Weight Rating: 4.5kg
- Deflection: 0.5mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a male to male bobbin when both sides of the installation need an exposed threaded fixing for nuts, tapped plates or matching bracket locations. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
