M4 x 10mm Anti-Vibration Mount - Male-Male Bobbin (Weight Rating 14kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £1.19 | £1.43 |
| 2 - 249 | £1.18 | £1.42 |
| 250 - 499 | £1.10 | £1.32 |
| 500 - 999 | £1.02 | £1.22 |
| 1000 - 2499 | £0.93 | £1.11 |
| 2500 + | £0.84 | £1.01 |
Product Specification
| Diameter | 15mm |
| Height | 10mm |
| Thread Size | M4 |
| Thread Length | 10mm |
| Type | Male to Male |
| Shore Hardness | 60 IRHD |
| Weight Rating | 14kg |
| Deflection | 0.8mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M4 x 10mm Male to Male Anti Vibration Mount | 15mm x 10mm Bobbin | 14kg Weight Rating | Zinc Steel & Natural Rubber
Specified in trailer manufacture, the 15mm x 10mm rubber bobbin buffer is used where a bonded rubber mount can protect connected parts from operational shock.
This makes it suitable as a rubber machinery foot, equipment isolator or anti vibration bobbin in compact builds. With a male stud on each side, this bobbin is well suited to bridging two fixed surfaces. It helps keep the equipment held in position while reducing direct vibration transfer. Its measured deflection helps reduce transferred movement to panels, housings and supporting frames.
Common Applications
- Mounting exhaust fan brackets
- Fitting vehicle body panels
- Supporting marine interior equipment
- Securing fabricated access doors

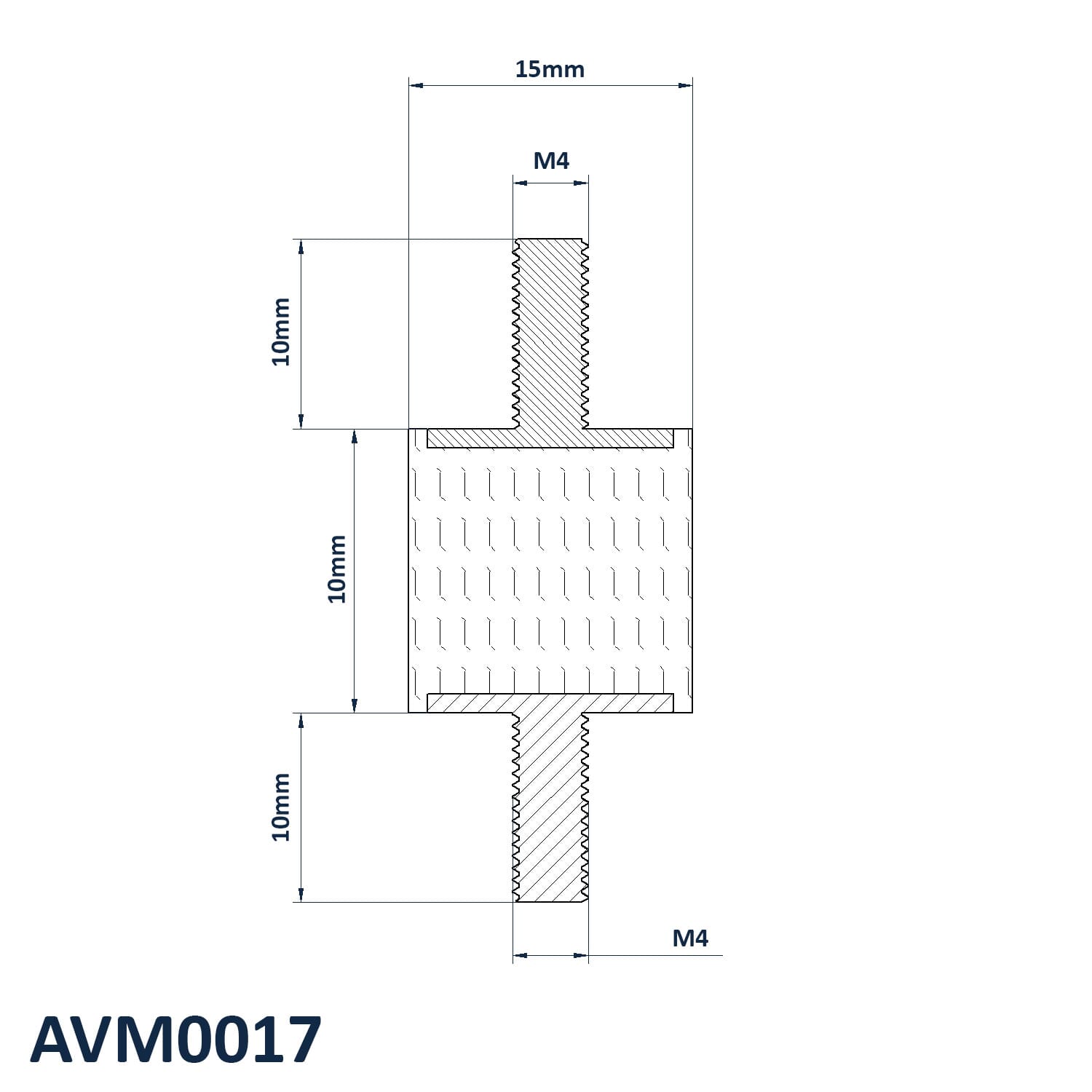

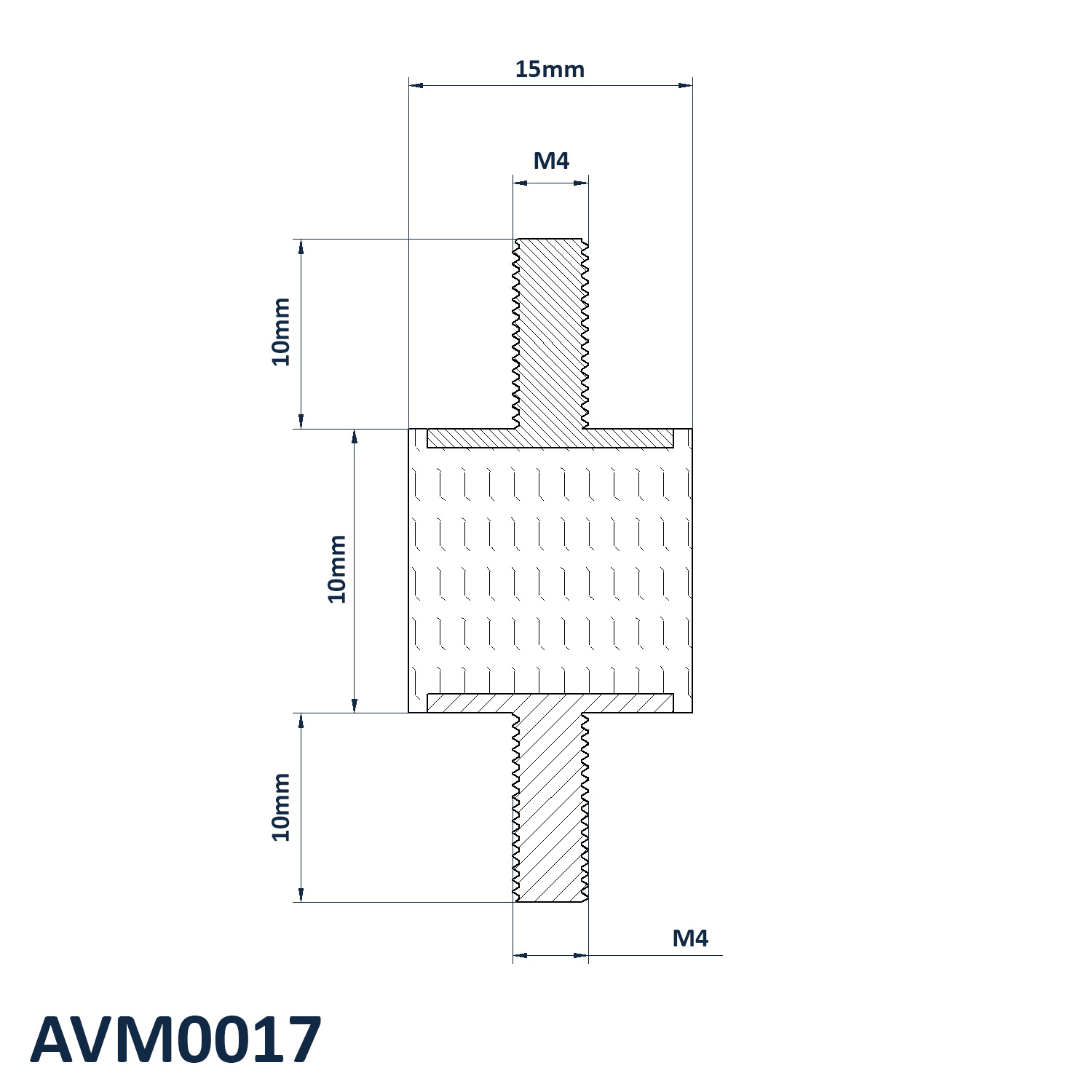

M4 x 10mm Male to Male Anti Vibration Mount Dimensions
- Diameter: 15mm
- Height: 10mm
- Thread Size: M4
- Thread Length: 10mm
- Type: Male to Male
- Shore Hardness: 60 IRHD
- Weight Rating: 14kg
- Deflection: 0.8mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a male to male bobbin when both sides of the installation need an exposed threaded fixing for nuts, tapped plates or matching bracket locations. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
