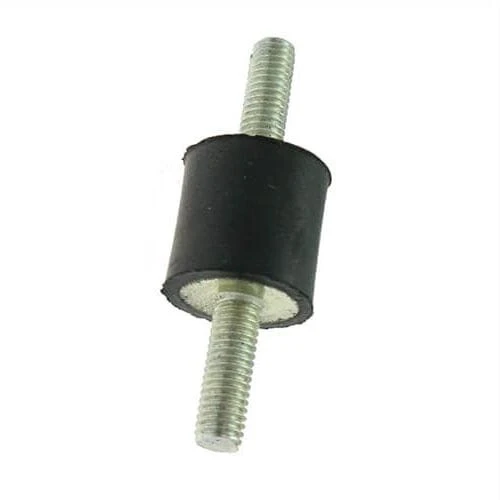

M4 x 10mm Anti-Vibration Mount - Male-Male Bobbin (Weight Rating 2.3kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £1.38 | £1.66 |
| 2 - 249 | £1.38 | £1.65 |
| 250 - 499 | £1.27 | £1.53 |
| 500 - 999 | £1.18 | £1.41 |
| 1000 - 2499 | £1.07 | £1.29 |
| 2500 + | £0.98 | £1.18 |
Product Specification
| Diameter | 15mm |
| Height | 25mm |
| Thread Size | M4 |
| Thread Length | 10mm |
| Type | Male to Male |
| Shore Hardness | 45 IRHD |
| Weight Rating | 2.3kg |
| Deflection | 2mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M4 x 10mm Male to Male Anti Vibration Mount | 15mm x 25mm Bobbin | 2.3kg Weight Rating | Zinc Steel & Natural Rubber
Offering a practical fixing point for industrial machinery, this male to male zinc steel rubber mount helps cushion equipment while keeping the installation compact.
The male to male arrangement is chosen when two outward-facing threads are needed, allowing the rubber bobbin to sit centrally between the supported item and the mounting surface. The zinc steel and natural rubber material pairing supports everyday industrial use where corrosion protection and vibration control are both required. It can be specified as a rubber isolation mount, machine mounting bobbin or shock absorbing rubber buffer within the wider assembly.
Common Applications
- Isolating cooling fan assemblies
- Securing fabricated access doors
- Fixing battery enclosure sections
- Cushioning mechanical stop assemblies

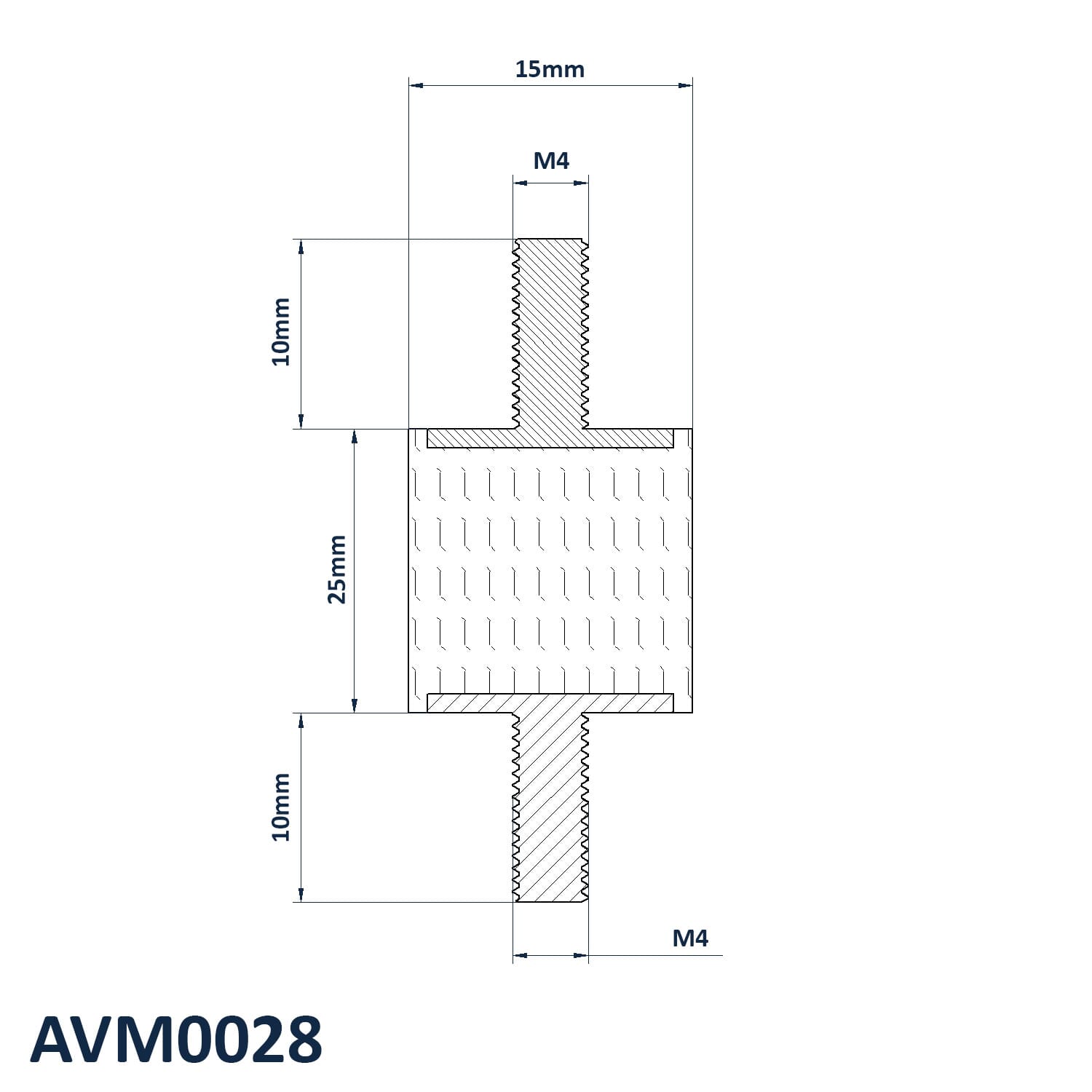

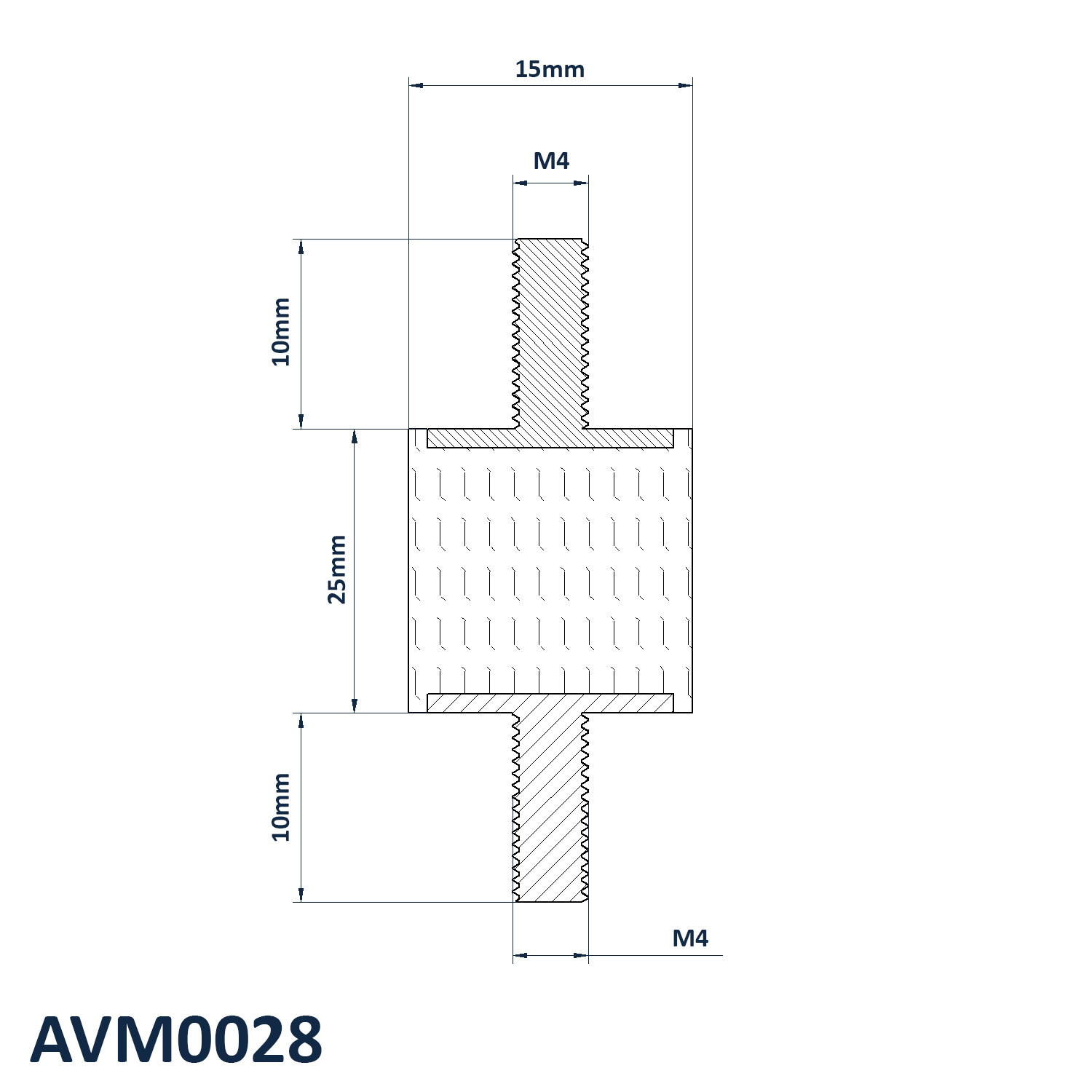

M4 x 10mm Male to Male Anti Vibration Mount Dimensions
- Diameter: 15mm
- Height: 25mm
- Thread Size: M4
- Thread Length: 10mm
- Type: Male to Male
- Shore Hardness: 45 IRHD
- Weight Rating: 2.3kg
- Deflection: 2mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a male to male bobbin when both sides of the installation need an exposed threaded fixing for nuts, tapped plates or matching bracket locations. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
