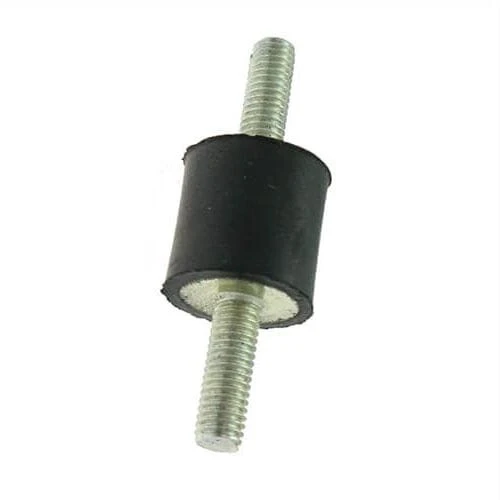

M6 x 18mm Anti-Vibration Mount - Male-Male Bobbin (Weight Rating 22kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £2.26 | £2.71 |
| 2 - 249 | £2.25 | £2.70 |
| 250 - 499 | £2.09 | £2.51 |
| 500 - 999 | £1.93 | £2.31 |
| 1000 - 2499 | £1.77 | £2.12 |
| 2500 + | £1.61 | £1.93 |
£2.71 / each
.png)
Product Specification
| Diameter | 25mm |
| Height | 30mm |
| Thread Size | M6 |
| Thread Length | 18mm |
| Type | Male to Male |
| Shore Hardness | 60 IRHD |
| Weight Rating | 22kg |
| Deflection | 2.7mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M6 x 18mm Male to Male Anti Vibration Mount | 25mm x 30mm Bobbin | 22kg Weight Rating | Zinc Steel & Natural Rubber
Frequently specified for cabinet hardware, this M6 male to male rubber bobbin mount offers a simple rubber mounting solution for light to heavy duty assemblies.
It is a practical choice for maintenance teams replacing worn rubber mounts, machine buffers or noise control fixings. Because both sides are male threaded, this mount can be secured with nuts or threaded receiving points on each side. That makes it suitable for equipment where a positive external fixing is needed at both ends. A 2.7mm deflection value helps the mount cushion movement while maintaining a stable fixing point.
Common Applications
- Mounting exhaust fan brackets
- Fitting vehicle body panels
- Supporting marine interior equipment
- Securing fabricated access doors

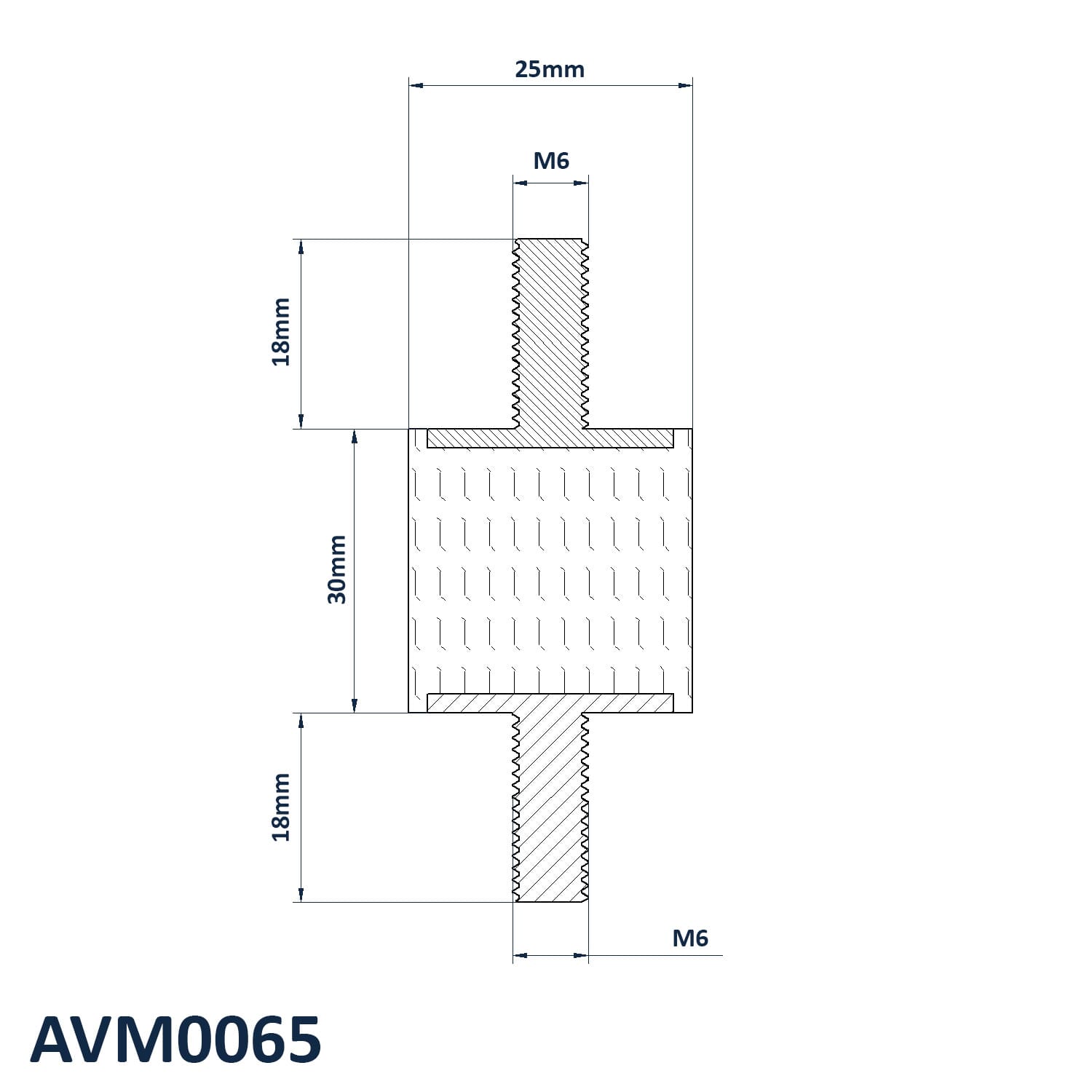

M6 x 18mm Male to Male Anti Vibration Mount Dimensions
- Diameter: 25mm
- Height: 30mm
- Thread Size: M6
- Thread Length: 18mm
- Type: Male to Male
- Shore Hardness: 60 IRHD
- Weight Rating: 22kg
- Deflection: 2.7mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a male to male bobbin when both sides of the installation need an exposed threaded fixing for nuts, tapped plates or matching bracket locations. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
