M8 x 23mm Anti-Vibration Mount - Male-Male Bobbin (Weight Rating 77kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £3.94 | £4.73 |
| 2 - 249 | £3.92 | £4.71 |
| 250 - 499 | £3.65 | £4.38 |
| 500 - 999 | £3.37 | £4.04 |
| 1000 - 2499 | £3.08 | £3.70 |
| 2500 + | £2.81 | £3.37 |
£4.73 / each
.png)
Product Specification
| Diameter | 40mm |
| Height | 20mm |
| Thread Size | M8 |
| Thread Length | 23mm |
| Type | Male to Male |
| Shore Hardness | 60 IRHD |
| Weight Rating | 77kg |
| Deflection | 1.6mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M8 x 23mm Male to Male Anti Vibration Mount | 40mm x 20mm Bobbin | 77kg Weight Rating | Zinc Steel & Natural Rubber
Specified in workshop fabrication, the M8 vibration control bobbin is used where a bonded rubber mount can protect connected parts from operational shock.
It provides a useful alternative to rigid spacers, helping create a controlled vibration break in fabricated assemblies. With a male stud on each side, this bobbin is well suited to bridging two fixed surfaces. It helps keep the equipment held in position while reducing direct vibration transfer. Its measured deflection helps reduce transferred movement to panels, housings and supporting frames.
Common Applications
- Protecting electrical enclosures
- Cushioning storage system components
- Mounting small gearbox housings
- Cushioning low-voltage equipment panels

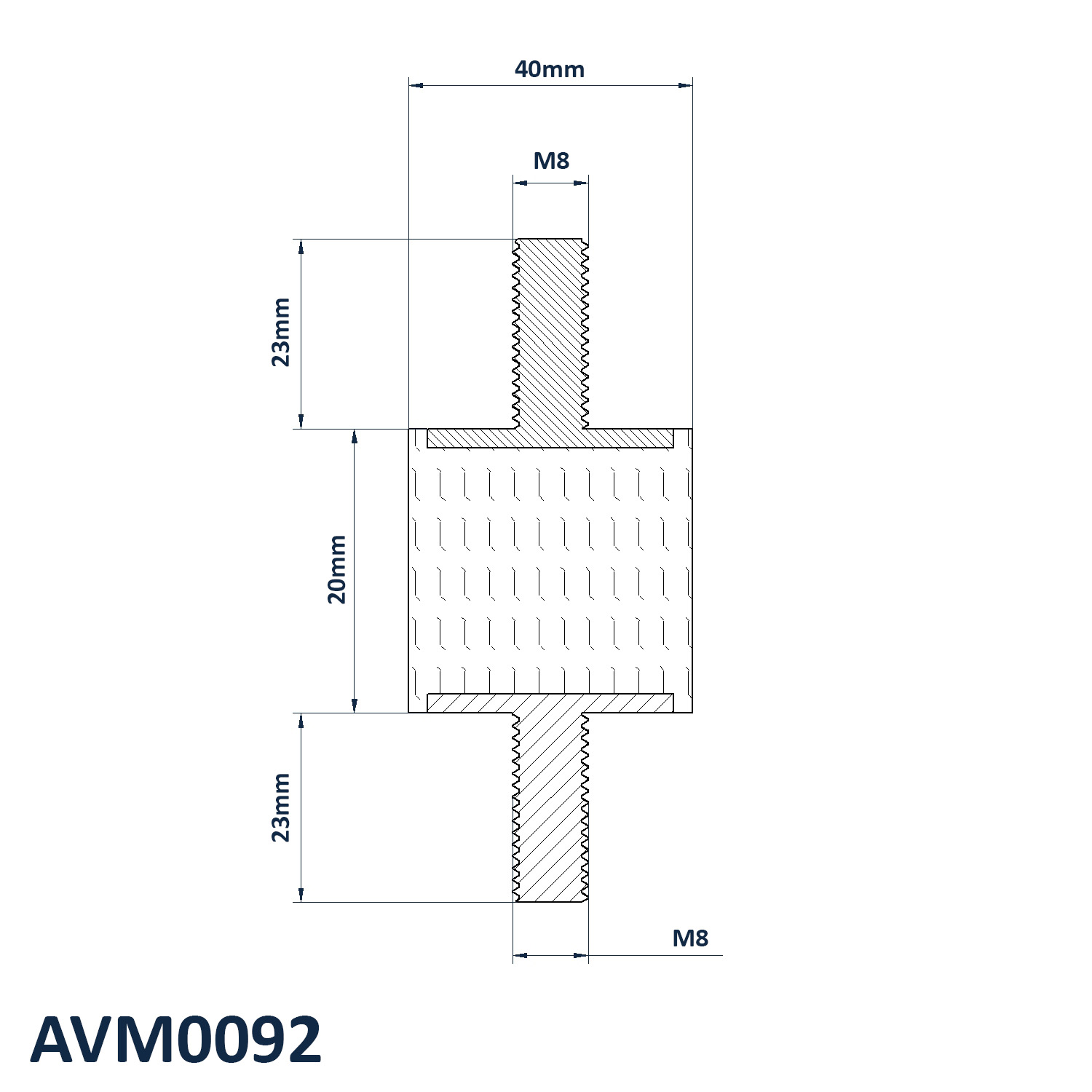

M8 x 23mm Male to Male Anti Vibration Mount Dimensions
- Diameter: 40mm
- Height: 20mm
- Thread Size: M8
- Thread Length: 23mm
- Type: Male to Male
- Shore Hardness: 60 IRHD
- Weight Rating: 77kg
- Deflection: 1.6mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a male to male bobbin when both sides of the installation need an exposed threaded fixing for nuts, tapped plates or matching bracket locations. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
