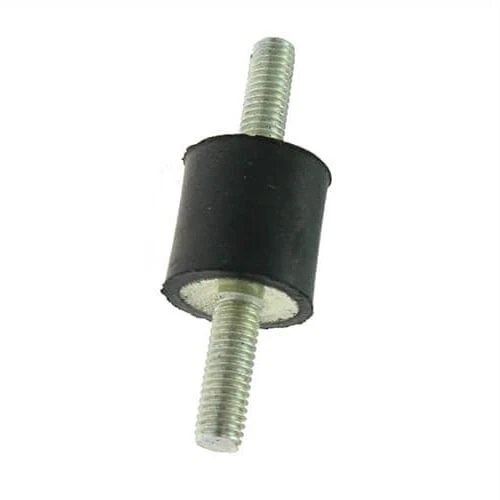

M10 x 25mm Anti-Vibration Mount - Male-Male Bobbin (Weight Rating 71kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £4.05 | £4.86 |
| 2 - 249 | £4.04 | £4.85 |
| 250 - 499 | £3.75 | £4.50 |
| 500 - 999 | £3.47 | £4.16 |
| 1000 - 2499 | £3.17 | £3.81 |
| 2500 + | £2.89 | £3.47 |
£4.86 / each
.png)
Product Specification
| Diameter | 40mm |
| Height | 25mm |
| Thread Size | M10 |
| Thread Length | 25mm |
| Type | Male to Male |
| Shore Hardness | 60 IRHD |
| Weight Rating | 71kg |
| Deflection | 2.1mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M10 x 25mm Male to Male Anti Vibration Mount | 40mm x 25mm Bobbin | 71kg Weight Rating | Zinc Steel & Natural Rubber
Ideal for transport cases, the 40mm x 25mm male to male anti-vibration bobbin provides a neat vibration control point where space and fixing access are limited.
Because both sides are male threaded, this mount can be secured with nuts or threaded receiving points on each side. That makes it suitable for equipment where a positive external fixing is needed at both ends. The black natural rubber section helps absorb shock loads while the metal threads provide secure mechanical fixing. This makes it suitable as a rubber machinery foot, equipment isolator or anti vibration bobbin in compact builds.
Common Applications
- Securing engine ancillary brackets
- Mounting pump base plates
- Fixing roof unit covers
- Attaching instrument panels

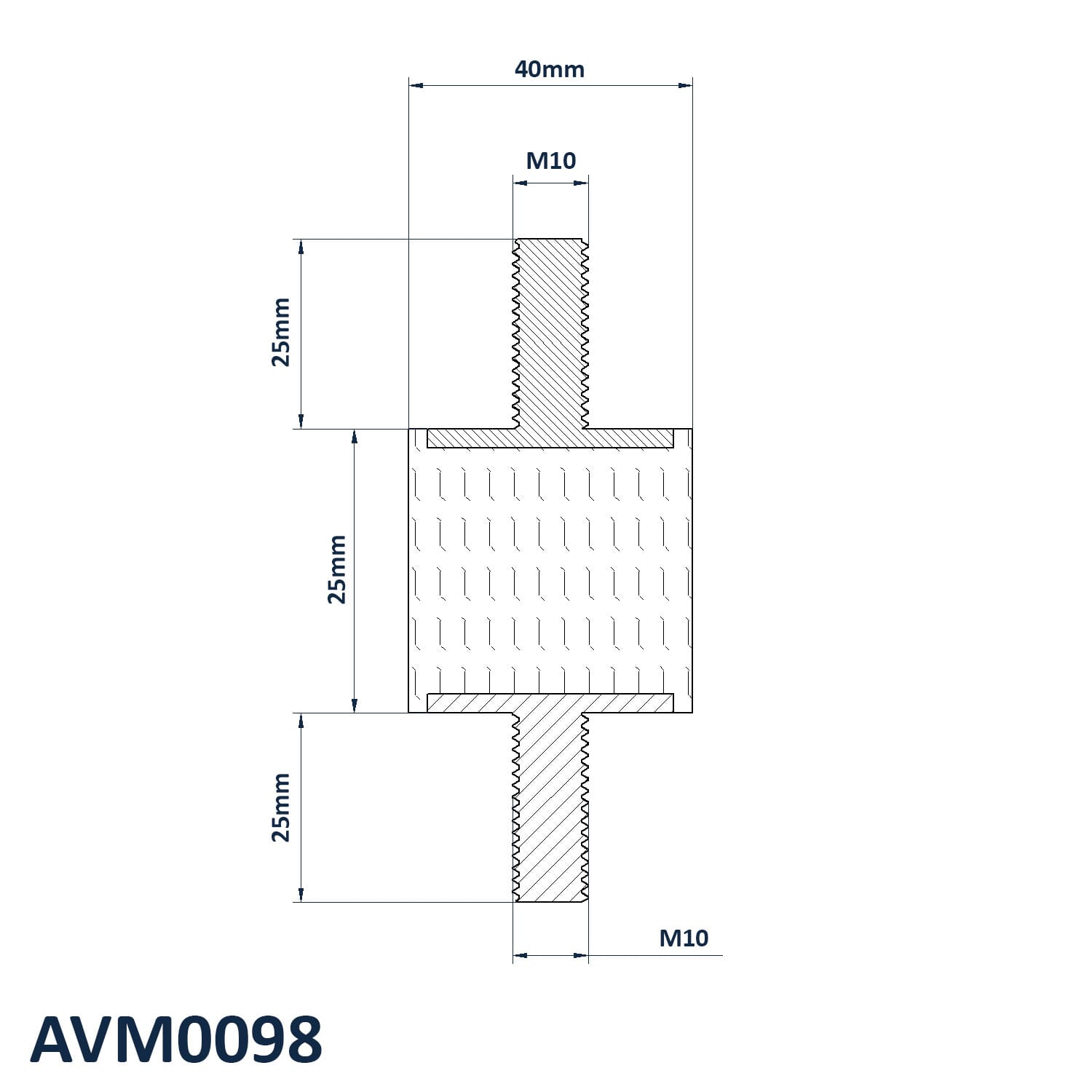

M10 x 25mm Male to Male Anti Vibration Mount Dimensions
- Diameter: 40mm
- Height: 25mm
- Thread Size: M10
- Thread Length: 25mm
- Type: Male to Male
- Shore Hardness: 60 IRHD
- Weight Rating: 71kg
- Deflection: 2.1mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a male to male bobbin when both sides of the installation need an exposed threaded fixing for nuts, tapped plates or matching bracket locations. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
