M10 x 25mm Anti-Vibration Mount - Male-Male Bobbin (Weight Rating 33kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £3.59 | £4.31 |
| 2 - 249 | £3.52 | £4.22 |
| 250 - 499 | £3.45 | £4.14 |
| 500 - 999 | £3.38 | £4.06 |
| 1000 - 2499 | £3.32 | £3.98 |
| 2500 + | £3.25 | £3.90 |
£4.31 / each
.png)
Product Specification
| Diameter | 40mm |
| Height | 30mm |
| Thread Size | M10 |
| Thread Length | 25mm |
| Type | Male to Male |
| Shore Hardness | 45 IRHD |
| Weight Rating | 33kg |
| Deflection | 2.6mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M10 x 25mm Male to Male Anti Vibration Mount | 40mm x 30mm Bobbin | 33kg Weight Rating | Zinc Steel & Natural Rubber
Developed for conveyor equipment, this M10 threaded rubber bobbin supports reliable mounting where a controlled amount of deflection is required.
It can be specified as a rubber isolation mount, machine mounting bobbin or shock absorbing rubber buffer within the wider assembly. The male to male arrangement is chosen when two outward-facing threads are needed, allowing the rubber bobbin to sit centrally between the supported item and the mounting surface. Its compact form helps reduce installation time where access around the mounting point is restricted.
Common Applications
- Isolating compressor guards
- Mounting exhaust fan brackets
- Securing HVAC casing sections
- Securing workshop machinery covers

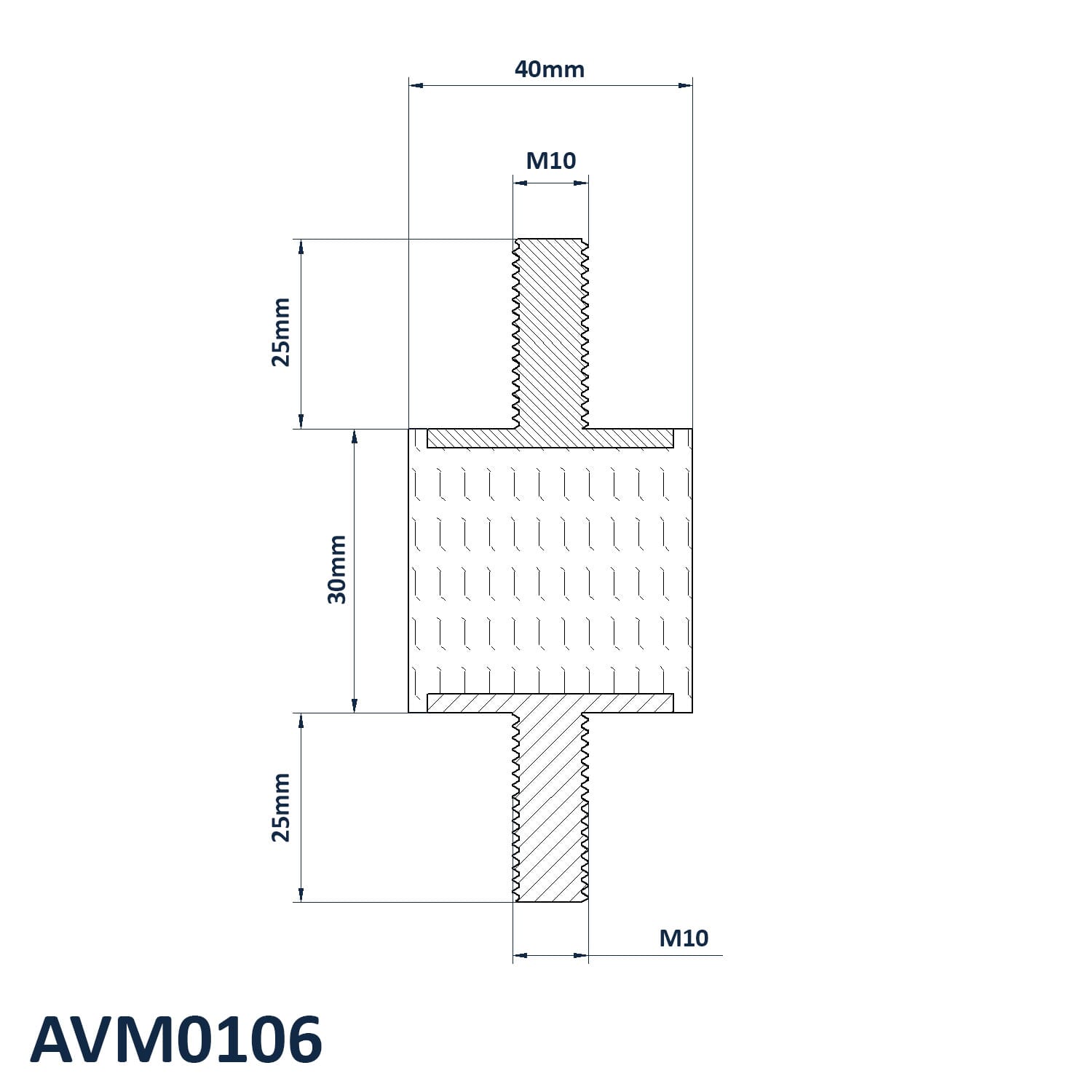

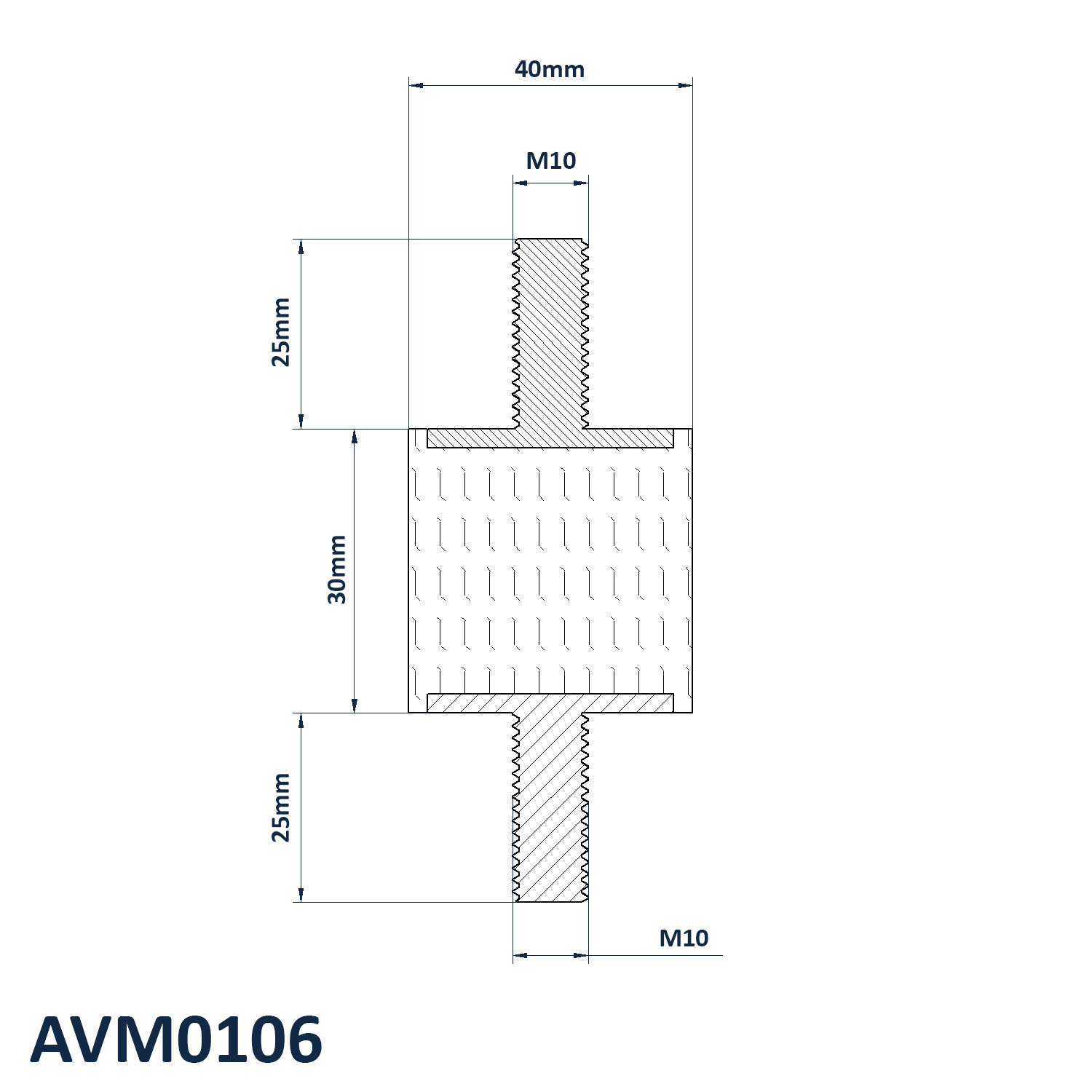

M10 x 25mm Male to Male Anti Vibration Mount Dimensions
- Diameter: 40mm
- Height: 30mm
- Thread Size: M10
- Thread Length: 25mm
- Type: Male to Male
- Shore Hardness: 45 IRHD
- Weight Rating: 33kg
- Deflection: 2.6mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a male to male bobbin when both sides of the installation need an exposed threaded fixing for nuts, tapped plates or matching bracket locations. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
