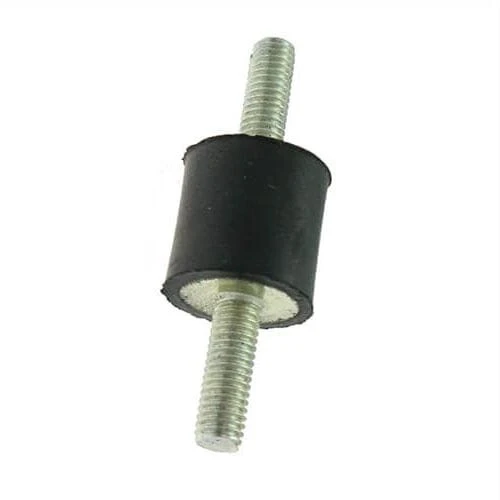

M8 x 23mm Anti-Vibration Mount - Male-Male Bobbin (Weight Rating 54kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £4.78 | £5.73 |
| 2 - 249 | £4.77 | £5.72 |
| 250 - 499 | £4.42 | £5.31 |
| 500 - 999 | £4.08 | £4.90 |
| 1000 - 2499 | £3.74 | £4.49 |
| 2500 + | £3.41 | £4.09 |
£5.73 / each
.png)
Product Specification
| Diameter | 40mm |
| Height | 40mm |
| Thread Size | M8 |
| Thread Length | 23mm |
| Type | Male to Male |
| Shore Hardness | 60 IRHD |
| Weight Rating | 54kg |
| Deflection | 3.6mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M8 x 23mm Male to Male Anti Vibration Mount | 40mm x 40mm Bobbin | 54kg Weight Rating | Zinc Steel & Natural Rubber
Ideal for pump installations, the M8 male to male anti vibration fixing provides a neat vibration control point where space and fixing access are limited.
Because both sides are male threaded, this mount can be secured with nuts or threaded receiving points on each side. That makes it suitable for equipment where a positive external fixing is needed at both ends. The black natural rubber section helps absorb shock loads while the metal threads provide secure mechanical fixing. It suits projects needing a natural rubber isolator, bonded metal mount or resilient machinery fixing.
Common Applications
- Isolating packaging machine parts
- Securing engine ancillary brackets
- Mounting pump base plates
- Fixing roof unit covers

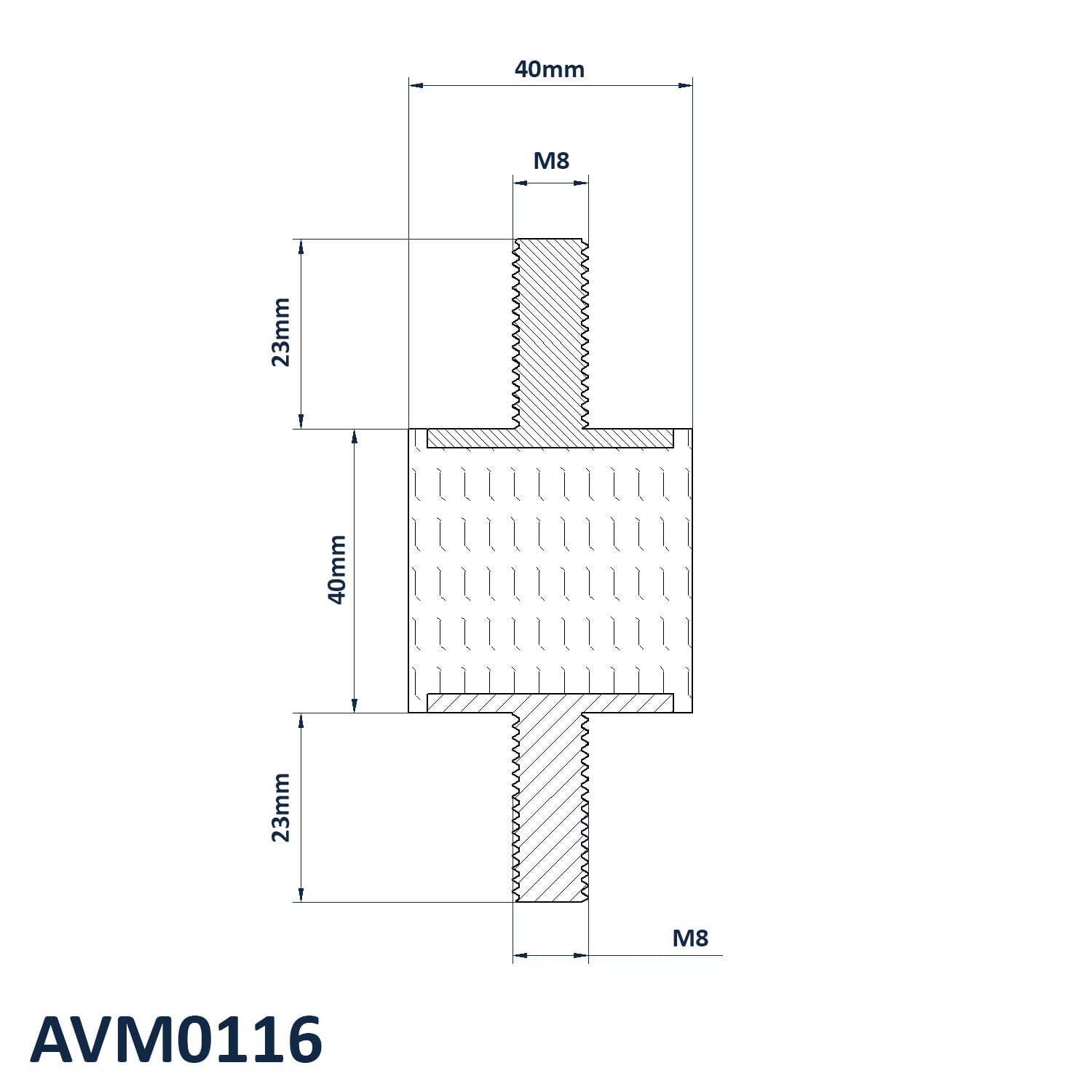

M8 x 23mm Male to Male Anti Vibration Mount Dimensions
- Diameter: 40mm
- Height: 40mm
- Thread Size: M8
- Thread Length: 23mm
- Type: Male to Male
- Shore Hardness: 60 IRHD
- Weight Rating: 54kg
- Deflection: 3.6mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a male to male bobbin when both sides of the installation need an exposed threaded fixing for nuts, tapped plates or matching bracket locations. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
