M10 x 25mm Anti-Vibration Mount - Male-Male Bobbin (Weight Rating 183kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £11.22 | £13.47 |
| 2 - 249 | £11.22 | £13.46 |
| 250 - 499 | £10.41 | £12.49 |
| 500 - 999 | £9.61 | £11.53 |
| 1000 - 2499 | £8.81 | £10.57 |
| 2500 + | £8.01 | £9.61 |
£13.47 / each
.png)
Product Specification
| Diameter | 60mm |
| Height | 40mm |
| Thread Size | M10 |
| Thread Length | 25mm |
| Type | Male to Male |
| Shore Hardness | 60 IRHD |
| Weight Rating | 183kg |
| Deflection | 3.5mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M10 x 25mm Male to Male Anti Vibration Mount | 60mm x 40mm Bobbin | 183kg Weight Rating | Zinc Steel & Natural Rubber
Specified in storage systems, the M10 male to male vibration damper mount is used where a bonded rubber mount can protect connected parts from operational shock.
It can be specified as a rubber isolation mount, machine mounting bobbin or shock absorbing rubber buffer within the wider assembly. With a male stud on each side, this bobbin is well suited to bridging two fixed surfaces. It helps keep the equipment held in position while reducing direct vibration transfer. Its measured deflection helps reduce transferred movement to panels, housings and supporting frames.
Common Applications
- Cushioning storage system components
- Mounting small gearbox housings
- Cushioning low-voltage equipment panels
- Securing pump brackets

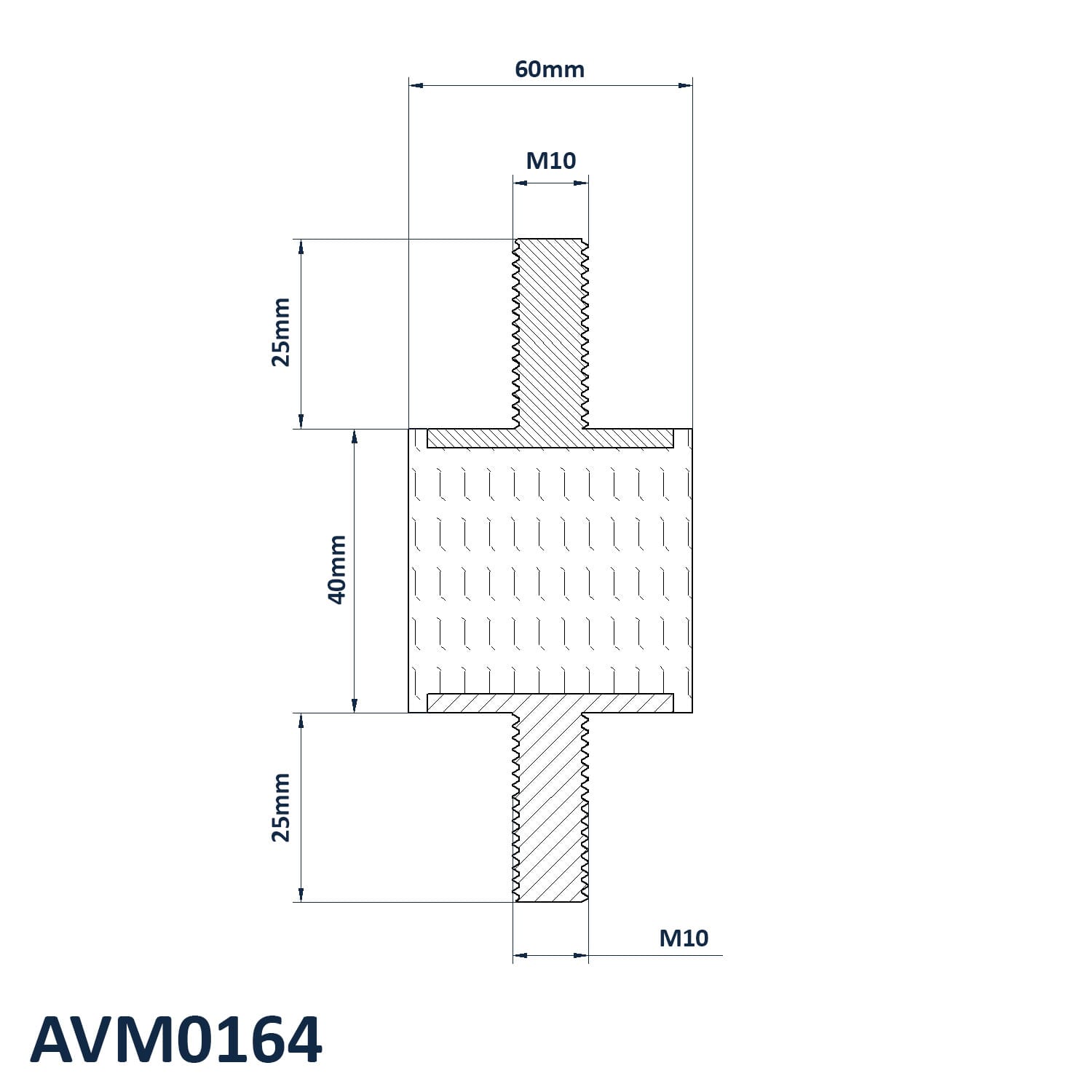

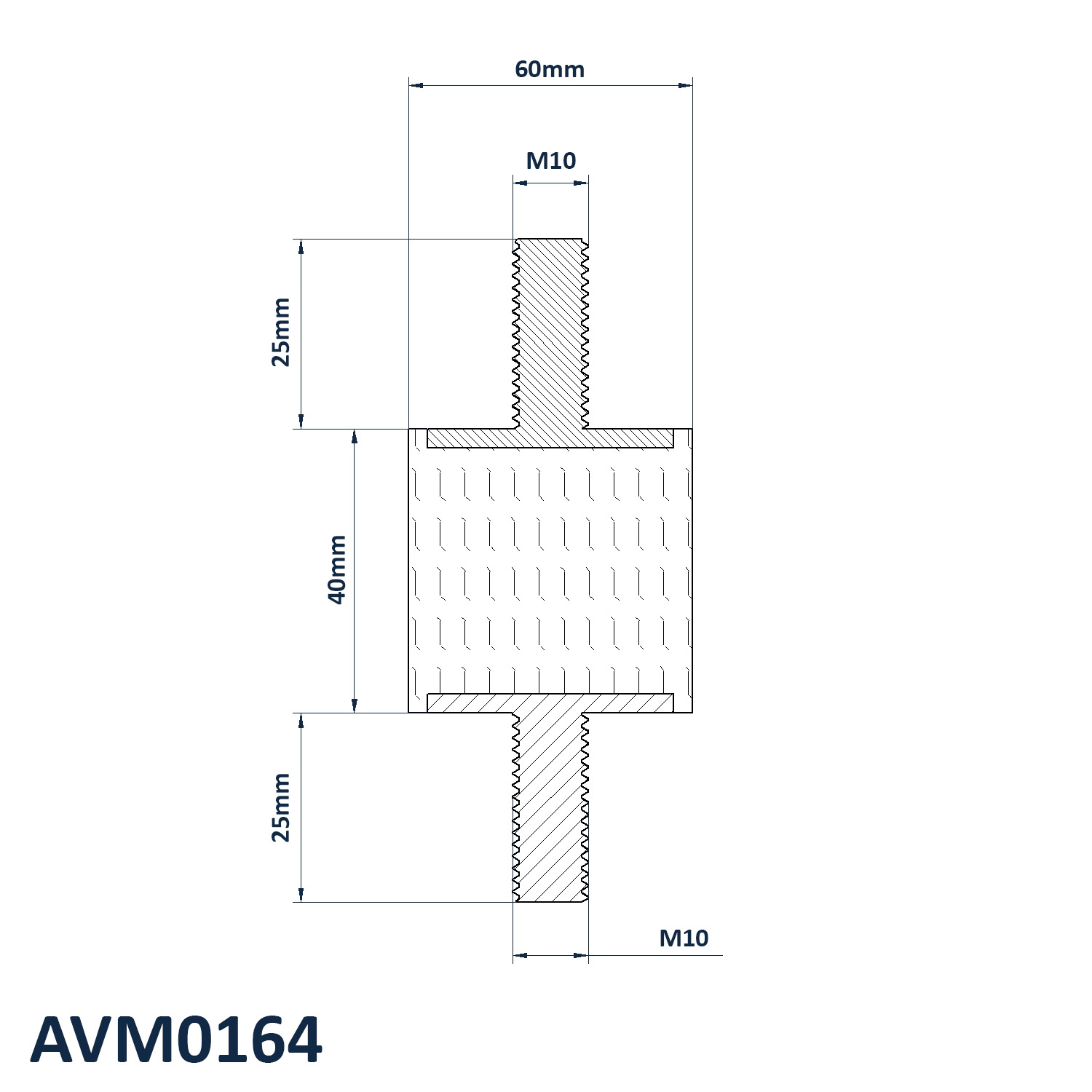

M10 x 25mm Male to Male Anti Vibration Mount Dimensions
- Diameter: 60mm
- Height: 40mm
- Thread Size: M10
- Thread Length: 25mm
- Type: Male to Male
- Shore Hardness: 60 IRHD
- Weight Rating: 183kg
- Deflection: 3.5mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a male to male bobbin when both sides of the installation need an exposed threaded fixing for nuts, tapped plates or matching bracket locations. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
