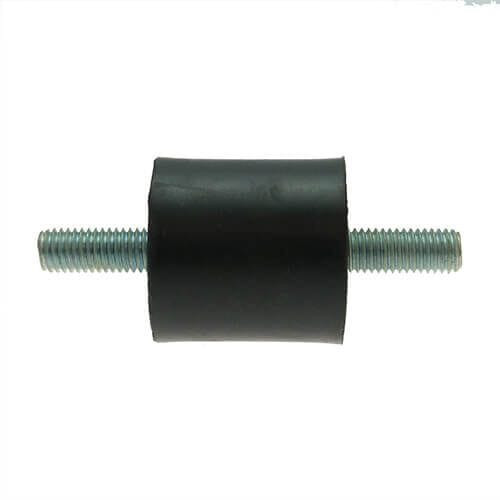

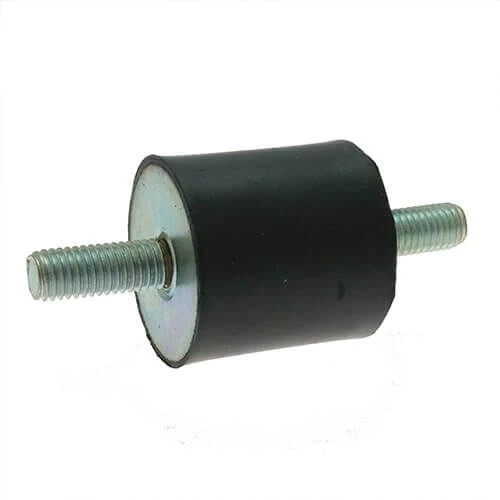

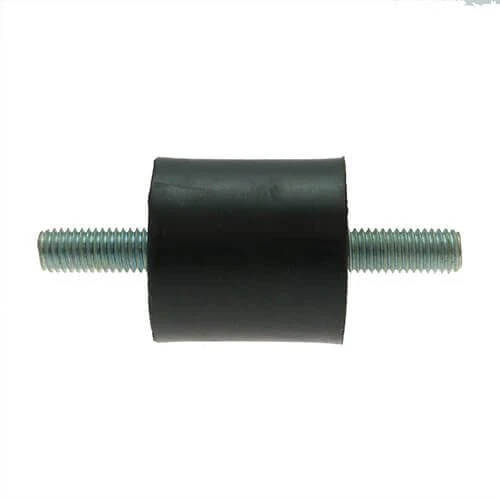

M12 x 37mm Anti-Vibration Mount - Male-Male Bobbin (Weight Rating 89kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £12.03 | £14.43 |
| 2 - 249 | £12.02 | £14.42 |
| 250 - 499 | £11.16 | £13.39 |
| 500 - 999 | £10.30 | £12.36 |
| 1000 - 2499 | £9.44 | £11.33 |
| 2500 + | £8.58 | £10.30 |
£14.43 / each
.png)
Product Specification
| Diameter | 60mm |
| Height | 45mm |
| Thread Size | M12 |
| Thread Length | 37mm |
| Type | Male to Male |
| Shore Hardness | 45 IRHD |
| Weight Rating | 89kg |
| Deflection | 4mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M12 x 37mm Male to Male Anti Vibration Mount | 60mm x 45mm Bobbin | 89kg Weight Rating | Zinc Steel & Natural Rubber
Manufactured for laboratory equipment, this M12 male to male equipment isolator helps separate moving assemblies from surrounding frames without needing a large isolator.
This makes it suitable as a rubber machinery foot, equipment isolator or anti vibration bobbin in compact builds. The male to male bobbin layout has threaded studs on both faces. This is useful when the mount needs to connect two brackets, plates or threaded fixing points while the rubber section sits between them. Its rubber body provides vibration isolation without the need for complex brackets or separate damping pads.
Common Applications
- Supporting automation cell guards
- Supporting display equipment housings
- Securing guarding panels
- Cushioning access panels

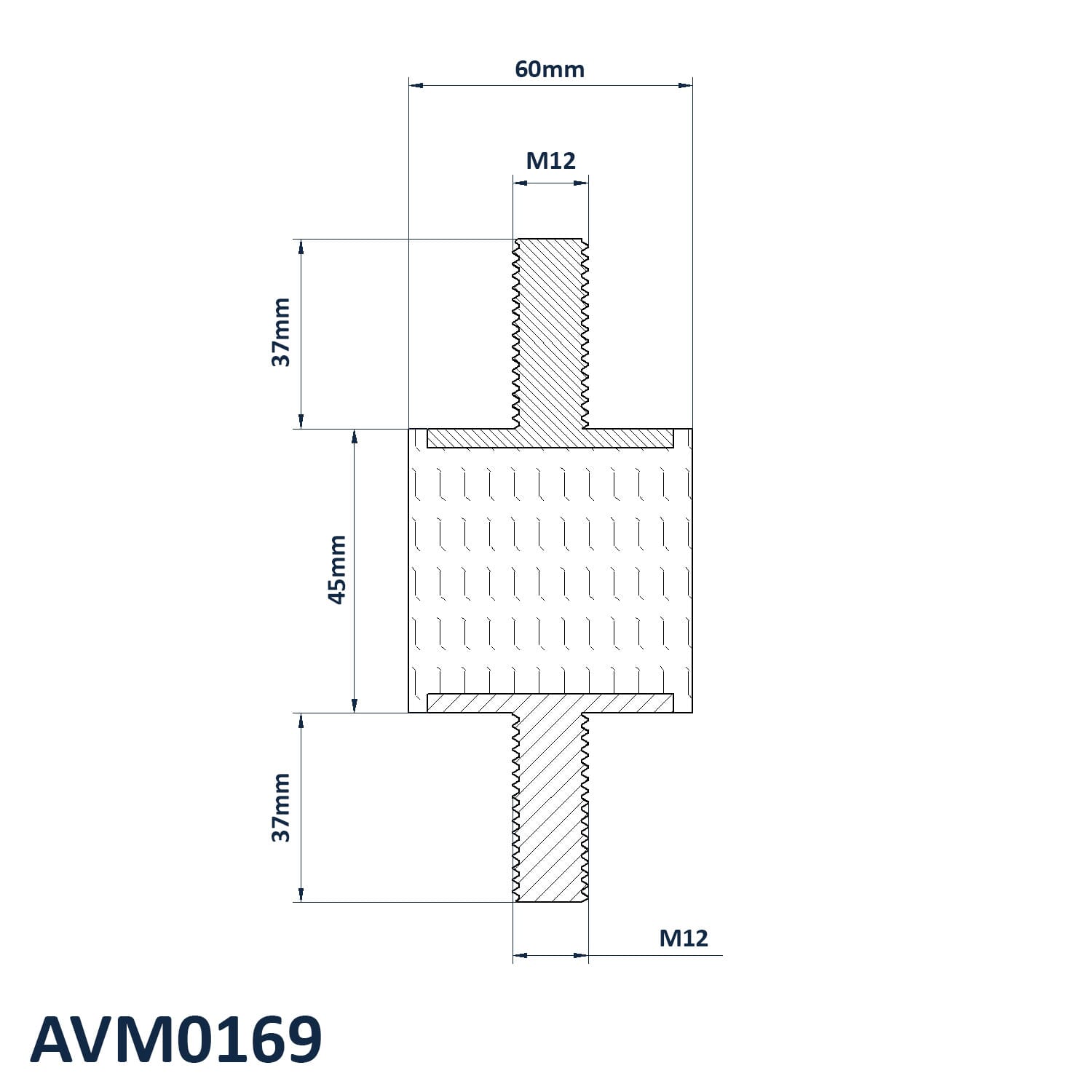

M12 x 37mm Male to Male Anti Vibration Mount Dimensions
- Diameter: 60mm
- Height: 45mm
- Thread Size: M12
- Thread Length: 37mm
- Type: Male to Male
- Shore Hardness: 45 IRHD
- Weight Rating: 89kg
- Deflection: 4mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a male to male bobbin when both sides of the installation need an exposed threaded fixing for nuts, tapped plates or matching bracket locations. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
