M10 x 25mm Anti-Vibration Mount - Male-Male Bobbin (Weight Rating 166kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £12.03 | £14.43 |
| 2 - 249 | £12.02 | £14.42 |
| 250 - 499 | £11.16 | £13.39 |
| 500 - 999 | £10.30 | £12.36 |
| 1000 - 2499 | £9.44 | £11.33 |
| 2500 + | £8.58 | £10.30 |
£14.43 / each
.png)
Product Specification
| Diameter | 60mm |
| Height | 45mm |
| Thread Size | M10 |
| Thread Length | 25mm |
| Type | Male to Male |
| Shore Hardness | 60 IRHD |
| Weight Rating | 166kg |
| Deflection | 4mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M10 x 25mm Male to Male Anti Vibration Mount | 60mm x 45mm Bobbin | 166kg Weight Rating | Zinc Steel & Natural Rubber
Frequently specified for automotive assemblies, this M10 natural rubber vibration mount offers a simple rubber mounting solution for light to heavy duty assemblies.
The design works as a compact machine mount, panel vibration damper or rubber mounting buffer depending on the installation. Because both sides are male threaded, this mount can be secured with nuts or threaded receiving points on each side. That makes it suitable for equipment where a positive external fixing is needed at both ends. A 4mm deflection value helps the mount cushion movement while maintaining a stable fixing point.
Common Applications
- Isolating compressor guards
- Mounting small electric motors
- Supporting agricultural control boxes
- Isolating cooling fan assemblies

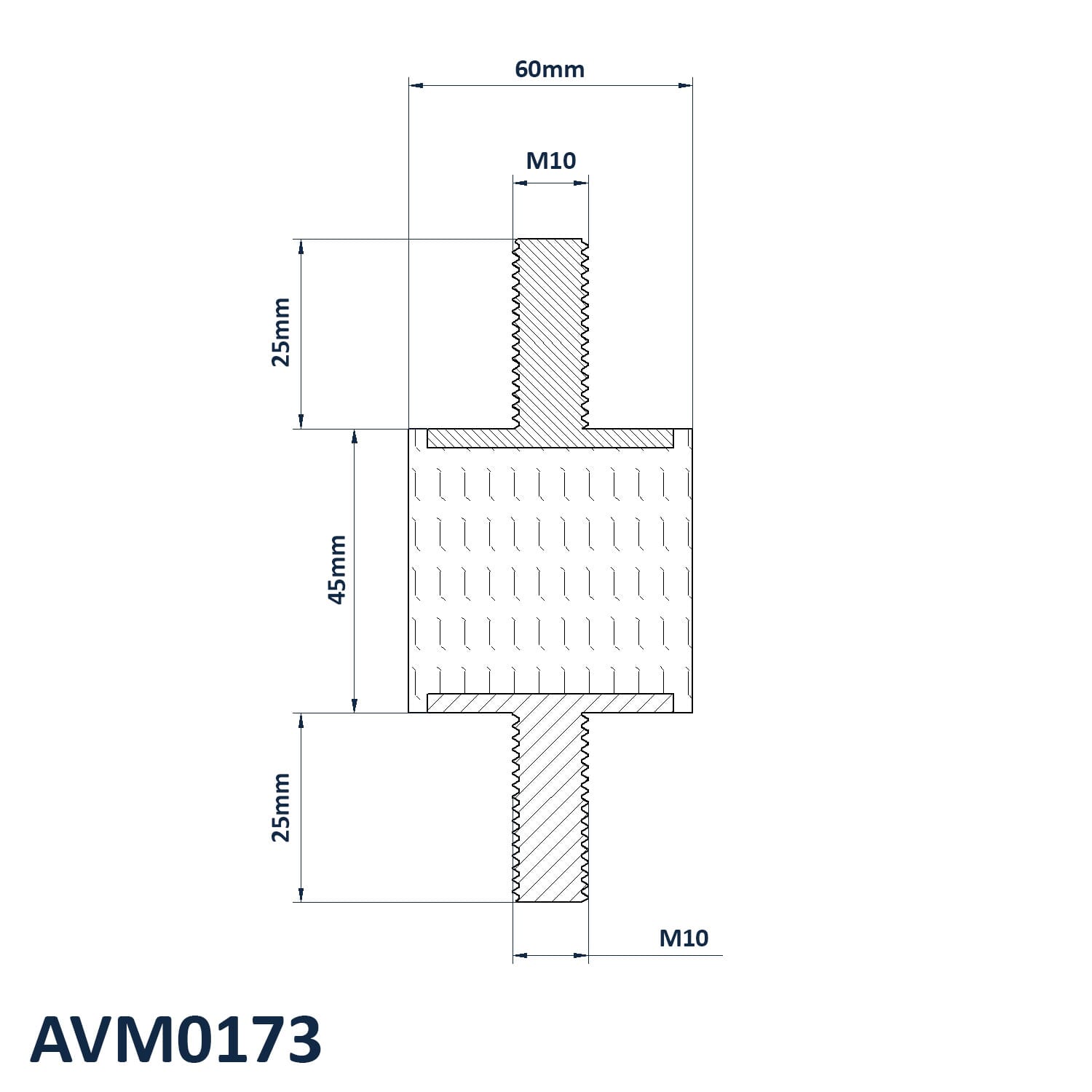

M10 x 25mm Male to Male Anti Vibration Mount Dimensions
- Diameter: 60mm
- Height: 45mm
- Thread Size: M10
- Thread Length: 25mm
- Type: Male to Male
- Shore Hardness: 60 IRHD
- Weight Rating: 166kg
- Deflection: 4mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a male to male bobbin when both sides of the installation need an exposed threaded fixing for nuts, tapped plates or matching bracket locations. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
