M10 x 25mm Anti-Vibration Mount - Male-Male Bobbin (Weight Rating 129kg)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £17.13 | £20.56 |
| 2 - 249 | £17.12 | £20.55 |
| 250 - 499 | £15.90 | £19.08 |
| 500 - 999 | £14.68 | £17.61 |
| 1000 - 2499 | £13.46 | £16.15 |
| 2500 + | £12.23 | £14.68 |
£20.56 / each
Product Specification
| Diameter | 65mm |
| Height | 35mm |
| Thread Size | M10 |
| Thread Length | 25mm |
| Type | Male to Male |
| Shore Hardness | 45 IRHD |
| Weight Rating | 129kg |
| Deflection | 3mm |
| Material | Zinc Steel & Natural Rubber |
Frequently Bought Together
Total Price: £0.00
M10 x 25mm Male to Male Anti Vibration Mount | 65mm x 35mm Bobbin | 129kg Weight Rating | Zinc Steel & Natural Rubber
Developed for automation frames, this 65mm x 35mm machine vibration mount supports reliable mounting where a controlled amount of deflection is required.
The design works as a compact machine mount, panel vibration damper or rubber mounting buffer depending on the installation. The male to male arrangement is chosen when two outward-facing threads are needed, allowing the rubber bobbin to sit centrally between the supported item and the mounting surface. Its compact form helps reduce installation time where access around the mounting point is restricted.
Common Applications
- Cushioning mechanical stop assemblies
- Protecting electrical enclosures
- Isolating conveyor sensors
- Mounting dust extraction units

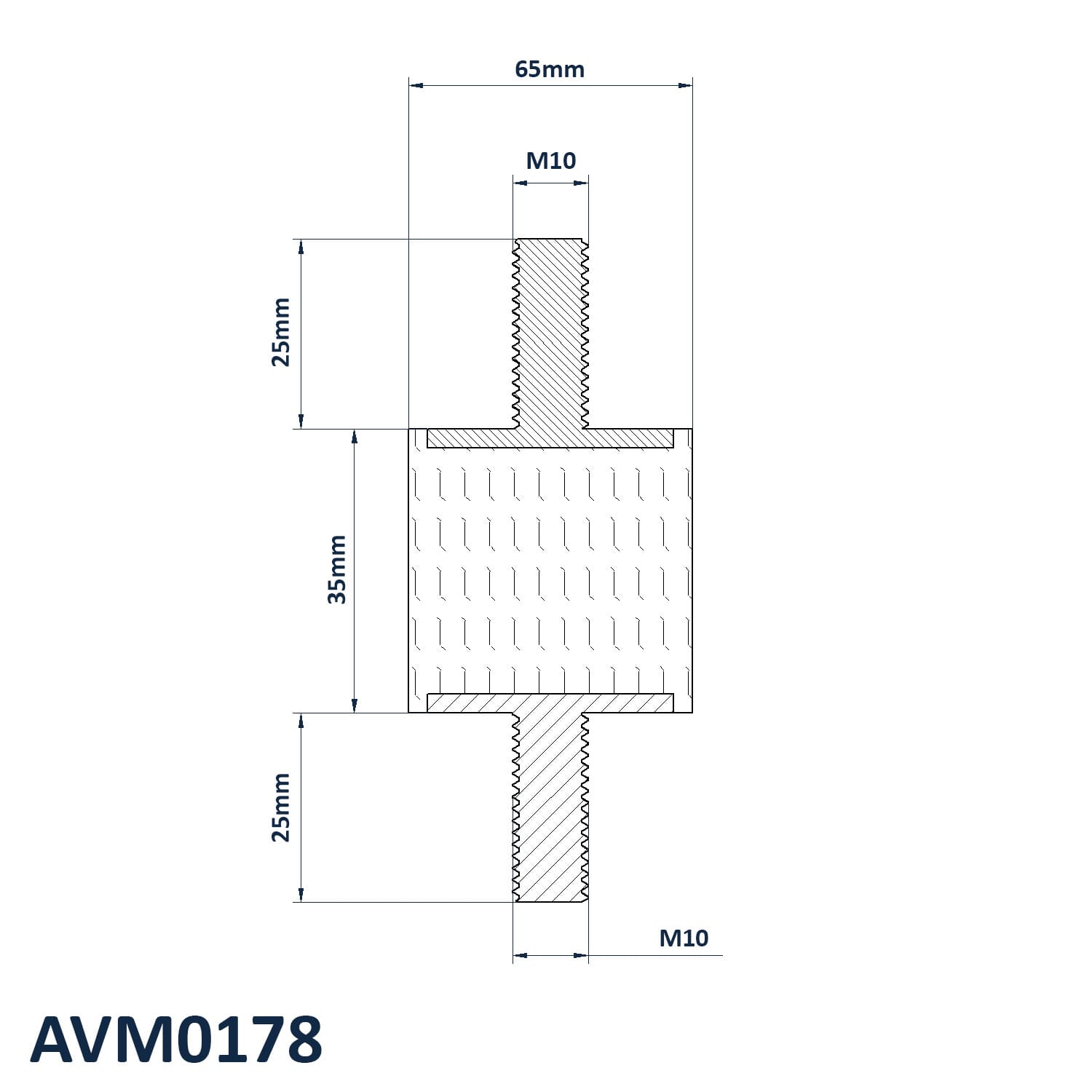

M10 x 25mm Male to Male Anti Vibration Mount Dimensions
- Diameter: 65mm
- Height: 35mm
- Thread Size: M10
- Thread Length: 25mm
- Type: Male to Male
- Shore Hardness: 45 IRHD
- Weight Rating: 129kg
- Deflection: 3mm
- Material: Zinc Steel & Natural Rubber
Fixing Style Guidance
Choose a male to male bobbin when both sides of the installation need an exposed threaded fixing for nuts, tapped plates or matching bracket locations. The Zinc Steel & Natural Rubber construction helps combine secure threaded fixing with rubber isolation for machinery, panels and equipment frames.
View our full Anti Vibration Mounts Range.
Need help or buying in bulk? Call 01233 713581 for support with sizing, load rating and fixing style selection.
