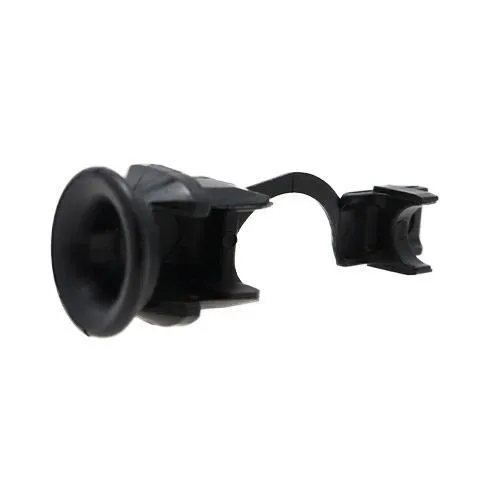

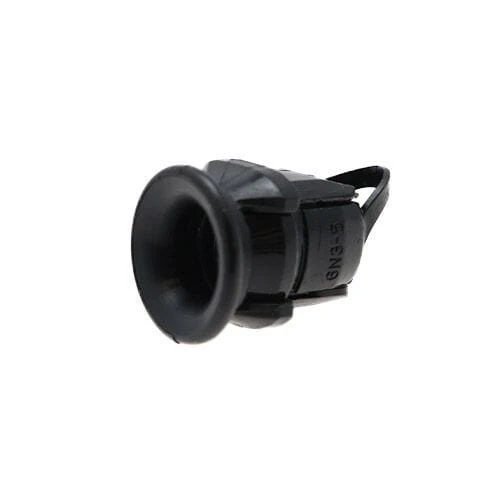

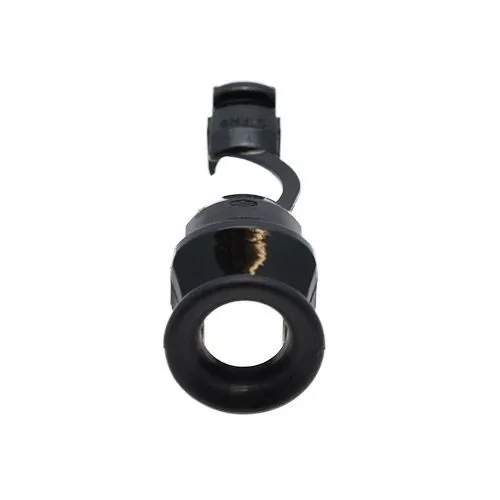

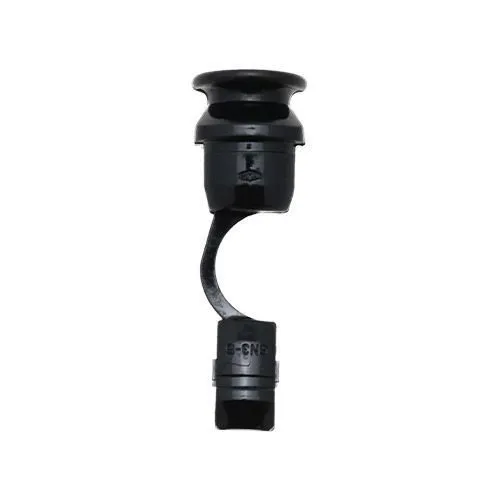

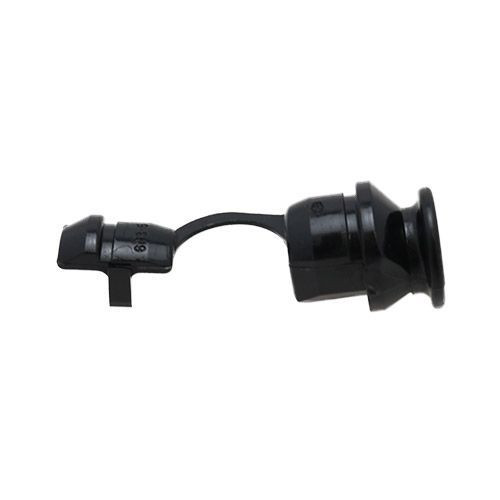

Bell Mouth Strain Relief Bushings - STRB266R

Bell Mouth Strain Relief Bushings – 15.9mm Mounting Hole Diameter , 14mm Panel Thickness , 8.2mm Min to 9.1mm Max Cable Diameter | Vital Parts – STRB266R

Bell Mouth Strain Relief Bushings are part of the original Heyco range and serve as a cost-effective alternative to the Lockit style variants. Designed for use with pliers during installation, these bushings improve cable life by holding wires securely in place and preventing sharp bends or kinks. The flared bell mouth provides a smooth, gentle exit that guides cables into a relaxed bend, reducing stress at the cable entry point.

What are Bell Mouth Strain Relief Bushings?

Bell Mouth Strain Relief Bushings are panel-mounted inserts that grip and support electrical cables as they exit enclosures or equipment. Manufactured from UL94V-2 rated Nylon 6/6, they are suitable for Round cable types. These bushings help absorb vibration and pull forces, protecting cables from wear and prolonging product life. They are ideal for electronics, control panels and machinery where secure, neat cable routing is required.

Key Features:

• Manufactured from UL94V-2 rated Nylon 6/6
• Supports Round cable profiles
• Requires pliers for installation into thicker panels
• Flared bell mouth exit reduces cable strain and wear
• Straight-through cable passage design for direct routing

Key Applications and Industries

• Electrical enclosures and control boxes
• Consumer electronics and appliance wiring
• Panel cable exit points in manufacturing equipment
• Strain relief for round or flat cable harnesses
• Cost-effective alternative to snap-in Lockit bushings

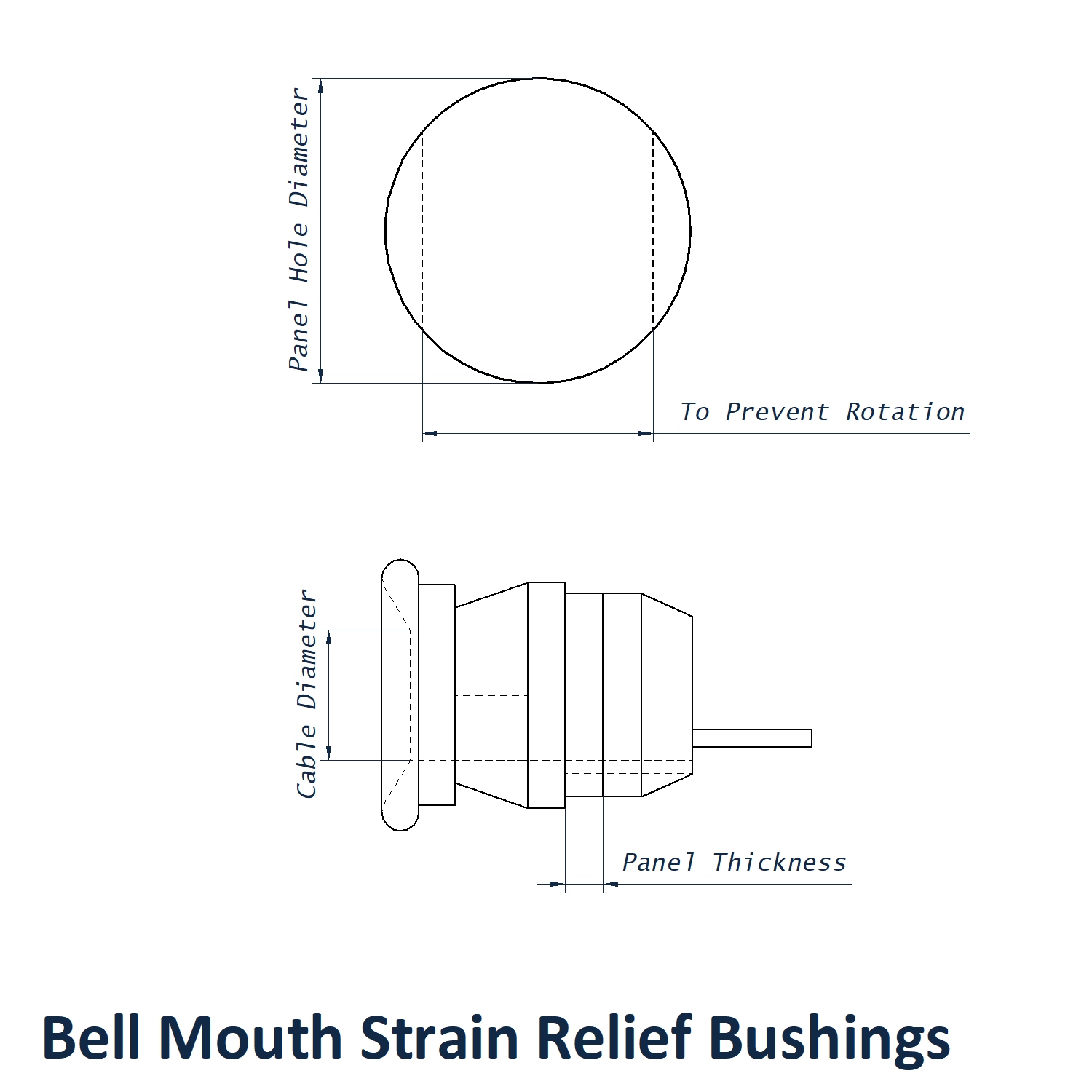

Technical Specifications :

• Mounting Hole Diameter: 15.9mm
• Prevent Rotation: 14mm
• Min Cable Diameter: 8.2mm
• Max Cable Diameter: 9.1mm
• Total Length: 20.7mm
• Material: Nylon 6/6 (UL94V-2 flame rating)
• Operating temperature range: -18°C to +105°C
• Compatible for Round cable types
• Panel thicknesses: 3.2mm
• Multiple hole sizes available for standard fittings

Certifications:

• Recognised under UL Component Program (File E15331)
• Certified by CSA (File 8919)

Installation Notes:

Use with pliers for secure installation into the panel. Select the correct model based on cable type—part numbers ending in “R” indicate round cable fitment, while “F” indicates flat cable fitment. For convenience, compatible assembly pliers are available in our tools section.
