M25 Nylon Cable Gland Locknut | Plain
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £0.35 | £0.42 |
| 10 - 49 | £0.28 | £0.33 |
| 50 - 99 | £0.20 | £0.24 |
| 100 + | £0.13 | £0.16 |
£0.42 / each
Product Specification
| Thread | M25 x 1.5mm |
| Across Flats | 32mm |
| Height | 6.0mm |
| Style | Plain |
| Material | Nylon |
| Colour/Finish | Light Grey |
Frequently Bought Together
Total Price: £0.00
M25 x 1.5mm Cable Gland Lock Nut | Light Grey Nylon
This M25 x 1.5mm Plain Cable Gland Lock Nut is intended for compatible gland entries used in control, power and equipment panels. The Nylon body uses a Light Grey finish with 32mm across flats and a 6.0mm profile.
What Are Nylon Cable Gland Lock Nuts?
Nylon Cable Gland Lock Nuts are threaded fastening rings used to secure compatible cable glands through panels, enclosures and junction boxes. They are normally fitted from inside the enclosure so the gland body can be tightened securely against the panel.
Common Applications
- Machinery: Keeps compatible cable glands mechanically retained on equipment housings and machine panels.
- Lighting Equipment: Provides a secure threaded fastening for cable entries used on suitable lighting housings and panels.
- Maintenance: Replaces worn or missing lock nuts on compatible metric cable gland installations.
- Industrial Control Panels: Provides a threaded fixing for gland entries carrying power, control or instrumentation cables.

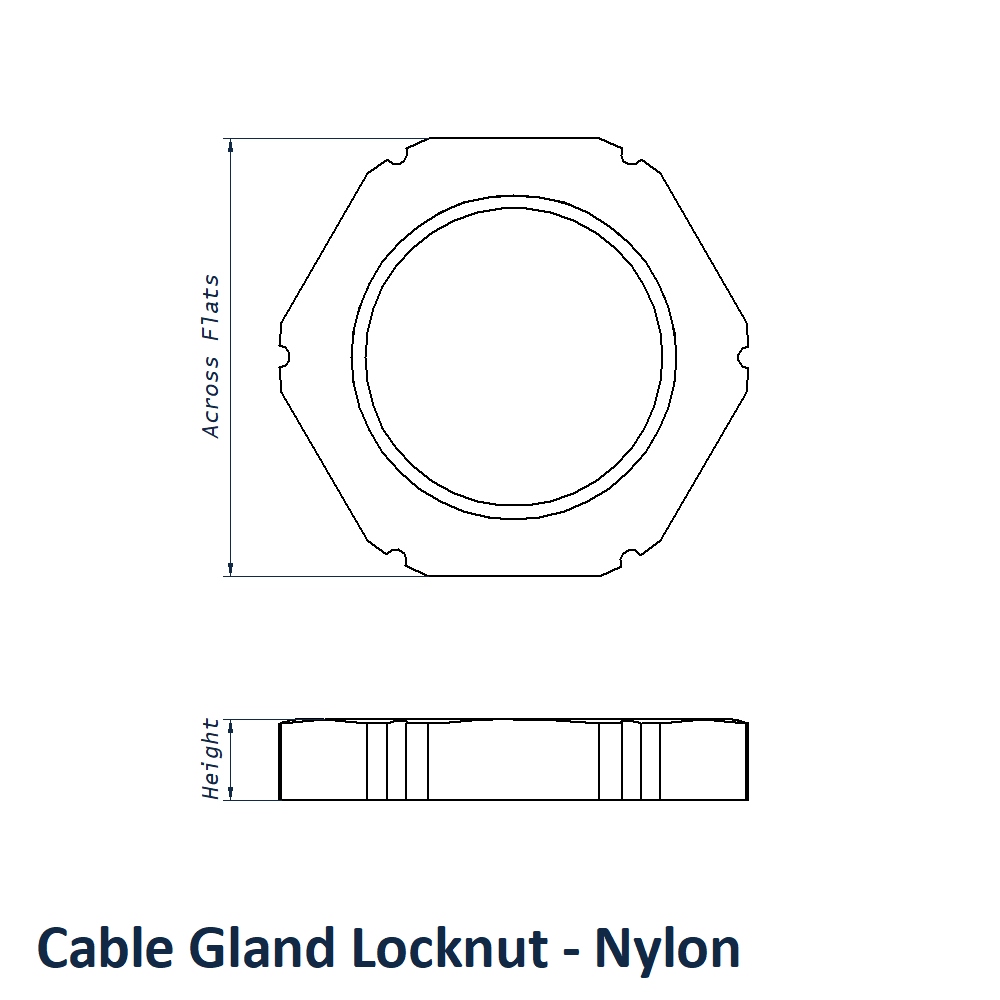

M25 x 1.5mm Plain Cable Gland Lock Nut Dimensions
- Thread: M25 x 1.5mm
- Across Flats: 32mm
- Material: Nylon
- Height: 6.0mm
- Style: Plain
- Colour/Finish: Light Grey
Key Benefits
- 32mm across-flats dimension provides a clear hexagonal tool size reference.
- Light Grey finish is retained exactly from the uploaded product data.
- Suitable for control panels, junction boxes and general electrical enclosure assembly.
- M25 x 1.5mm thread provides the main compatibility reference for the cable gland.
Further options are available through the Vital Parts Cable Gland Lock Nuts category. Our range includes A2 stainless steel, brass and nylon lock nuts plus dedicated EMC options. For help matching the thread to your cable gland, speak with our team on 01233 713581.
