M32 Nylon Cable Gland Locknut | Plain
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £0.55 | £0.66 |
| 10 - 24 | £0.43 | £0.52 |
| 25 - 49 | £0.32 | £0.38 |
| 50 + | £0.20 | £0.24 |
£0.66 / each
Product Specification
| Thread | M32 x 1.5mm |
| Across Flats | 40mm |
| Height | 6.0mm |
| Style | Plain |
| Material | Nylon |
| Colour/Finish | Light Grey |
Frequently Bought Together
Total Price: £0.00
M32 x 1.5mm Cable Gland Lock Nut | Light Grey Nylon

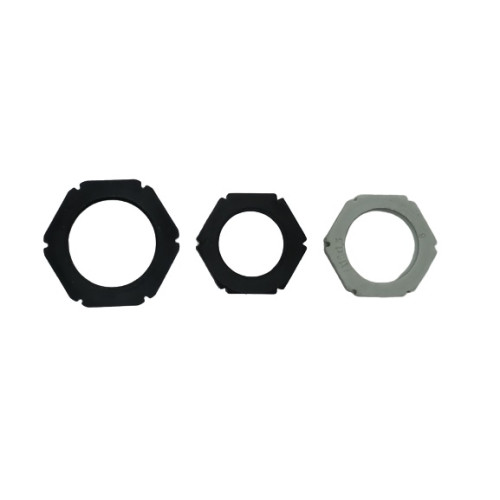

Designed to secure compatible cable glands through panels and enclosure walls, this M32 x 1.5mm Light Grey Nylon Cable Gland Lock Nut uses a 6.0mm high Plain profile with 40mm across flats. The threaded ring tightens against the inside of the panel to hold the gland securely in position.
What Are Nylon Cable Gland Lock Nuts?
A Nylon cable gland lock nut screws onto the gland thread after the gland has passed through a panel or enclosure wall. The lock nut holds the gland in position without adding a metal fastening component which makes it useful across electrical and general enclosure assembly.
Common Applications
- Lighting Equipment: Provides a secure threaded fastening for cable entries used on suitable lighting housings and panels.
- Panel Building: Provides a repeatable gland-to-panel fixing during electrical panel assembly.
- Industrial Control Panels: Provides a threaded fixing for gland entries carrying power, control or instrumentation cables.
- Automation Equipment: Supports gland installation on control boxes, sensor enclosures and automated machinery.

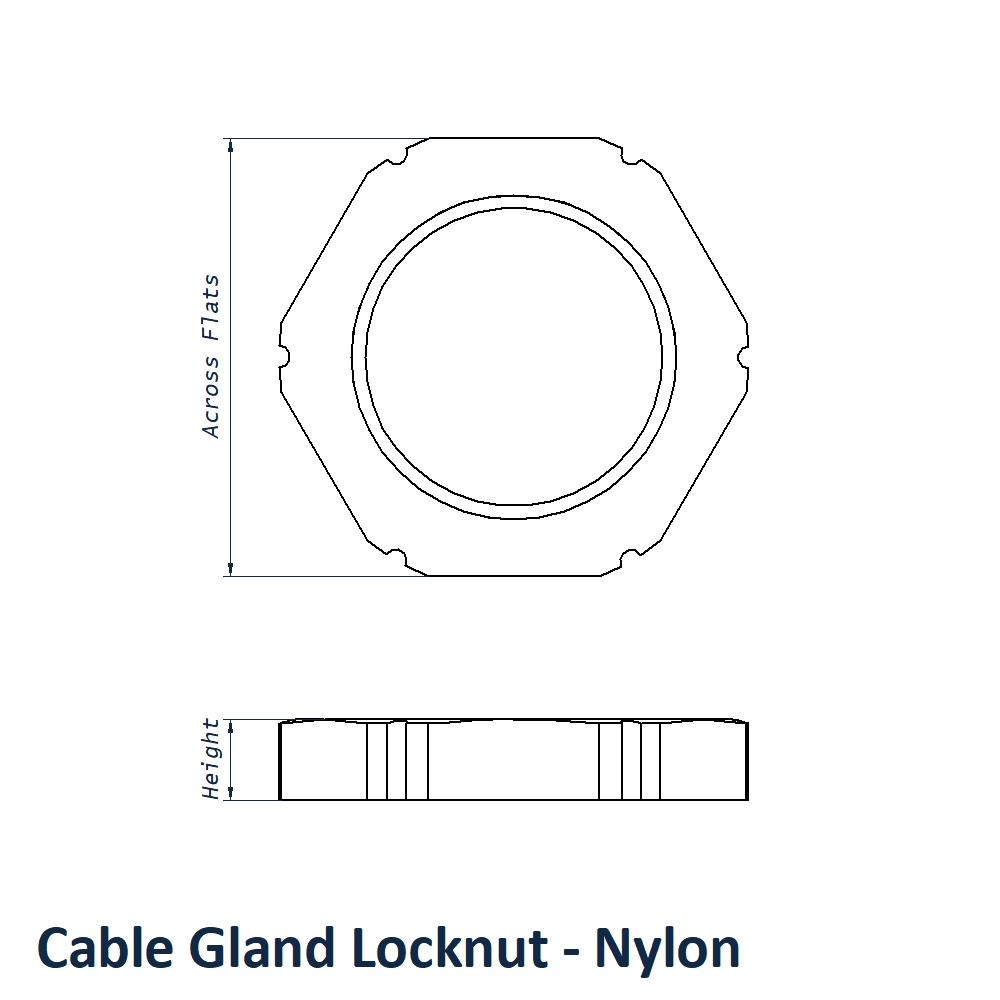

M32 x 1.5mm Plain Cable Gland Lock Nut Dimensions
- Thread: M32 x 1.5mm
- Across Flats: 40mm
- Material: Nylon
- Height: 6.0mm
- Style: Plain
- Colour/Finish: Light Grey
Key Benefits
- 6.0mm height matches the uploaded lock nut profile.
- Nylon construction provides a lightweight non-metallic fastening option.
- Available within a wider Cable Gland Lock Nuts range that also includes brass and A2 stainless steel options.
- 40mm across-flats dimension provides a clear hexagonal tool size reference.
Compare this product with other Cable Gland Lock Nuts across metric and PG thread formats. Alternative material choices include A2 stainless steel, brass and nylon with EMC styles also available. If you need help selecting the correct size, telephone Vital Parts on 01233 713581.
