| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 0 - 24 | £13.26 | £15.91 |
| 25 - 49 | £12.73 | £15.28 |
| 50 - 99 | £12.22 | £14.66 |
| 100 - 499 | £11.73 | £14.08 |
| 500 + | £10.81 | £12.97 |
Product Stock

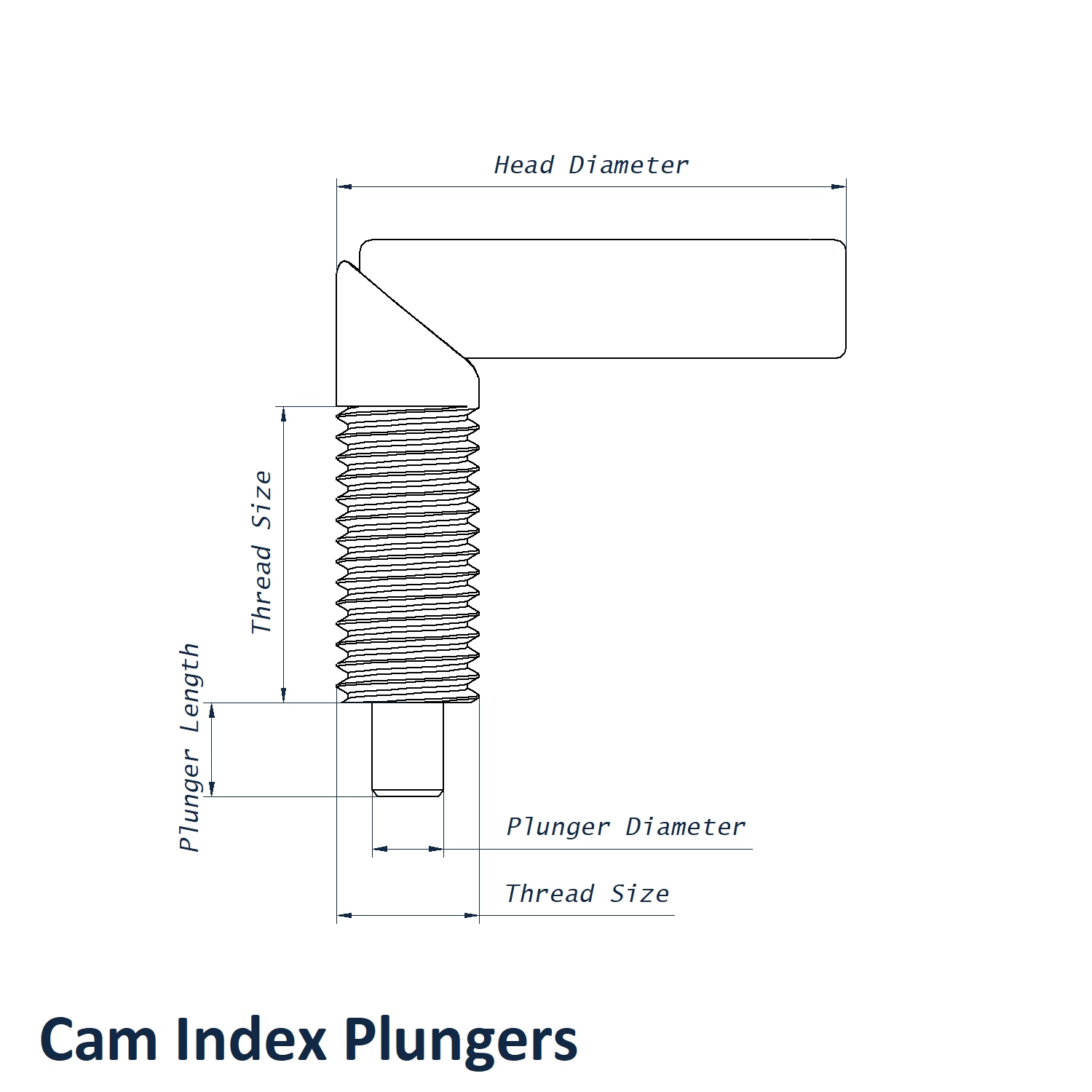

| Product Specifications | IND026 |
|---|---|
| Head Diameter | 69mm |
| Thread Size | M20 x 1.5mm |
| Plunger Diameter | 12mm |
| Length | N/A |
| Material | Blackened Steel |
| With Cap? | Yes |
| Colour | Black |
| Force For Full Retraction | 35N |
| Initiating Force | 9N |
Same Day Dispatch Available
Order by 4pm (UK) for same day dispatch (Monday – Thursday, 2pm Friday). Next Day or Standard Delivery available via DHL or Royal Mail.
Frequently Bought Together
- Material Duroplast
- Colour Black
- Width N/A
- Total Height 46mm
- Outside Diameter 140mm
- Thread / Bore SIze M6
- Bolt To Bolt 113mm
- Material Nylon
- Colour Black
- Height 48mm
- Hole Size 7mm
- Open Width 48mm
- Hole Centre Height 30mm
- Hole Centre Width 30mm
- Open Thickness 16mm
- Plate Thickness 11mm
- Thread Size M3
- Material Burnished Steel
- Colour Black
- Length 8mm
- Ball Diameter 1.5mm
- Initiating Force 3N
- Full Retraction Force 5N
Total Price: £0.00
Product Description

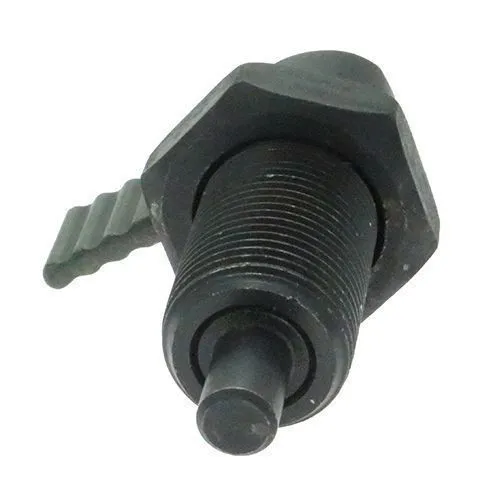

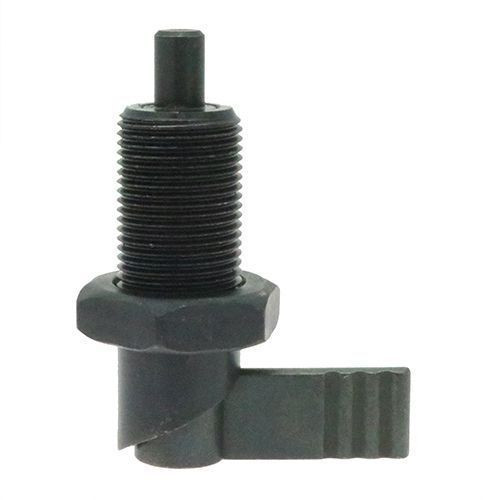

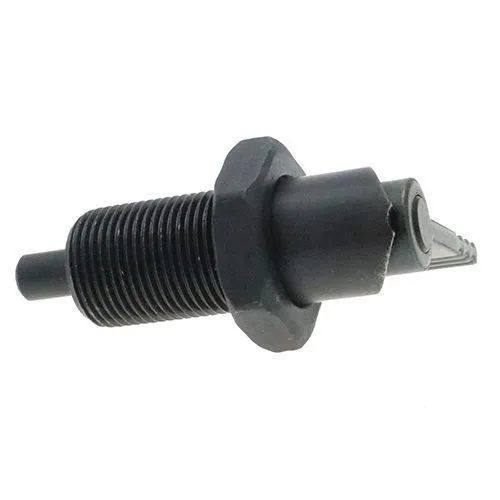

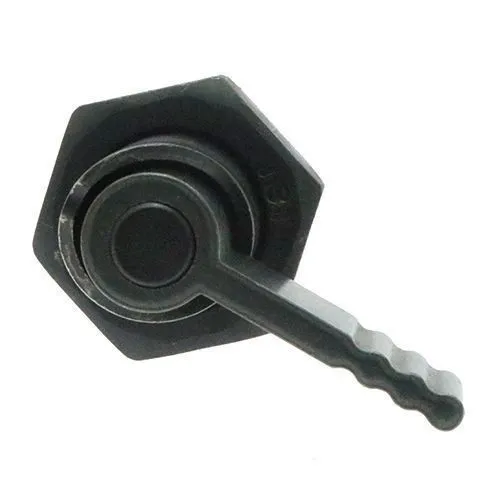

This locking cam index plunger has a head diameter of 69mm and a thread size of M20 x 1.5mm. It has a plunger diameter of 12mm and is available in Burnished Steel. Is a cap included? Yes.
Cam Action Index Plungers are spring-loaded index plungers with a cam handle for quick and easy release, and a locking notch for securing them into position. Made from burnished steel or stainless steel, these plungers are suitable for a variety of positional or catching applications in machinery and appliances.
They are available with or without a handle cap, depending on the material chosen. We offer a range of pin diameters and thread sizes (M12-M20), these plungers are commonly used as locking mechanisms to position or operate an object's basic function. Free samples may be available upon request for our Business Account customers via your Account manager.
Related Products
| Code | Thread Size | Material | Colour | Head Diameter | Length | Plunger Diameter | With Cap? | Initiating Force | Force For Full Retraction | Stock | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| IND023 | M12 x 1.5mm | Blackened Steel | Black | 47mm | N/A | 8mm | Yes | 4N | 13N |
Checking...
|
|
| IND024 | M20 x 1.5mm | Blackened Steel | Black | 69mm | N/A | 8mm | Yes | 9N | 35N |
Checking...
|
|
| IND025 | M20 x 1.5mm | Blackened Steel | Black | 69mm | N/A | 10mm | Yes | 9N | 35N |
Checking...
|
|
| IND027 | M20 x 1.5mm | A2 Stainless Steel | Self-colour & Black | 69mm | N/A | 8mm | No | 8N | 35N |
Checking...
|
|
| IND028 | M20 x 1.5mm | A2 Stainless Steel | Self-colour & Black | 69mm | N/A | 10mm | No | 5N | 35N |
Checking...
|
|
| IND029 | M20 x 1.5mm | A2 Stainless Steel | Self-colour & Black | 69mm | N/A | 12mm | No | 7N | 35N |
Checking...
|
|
