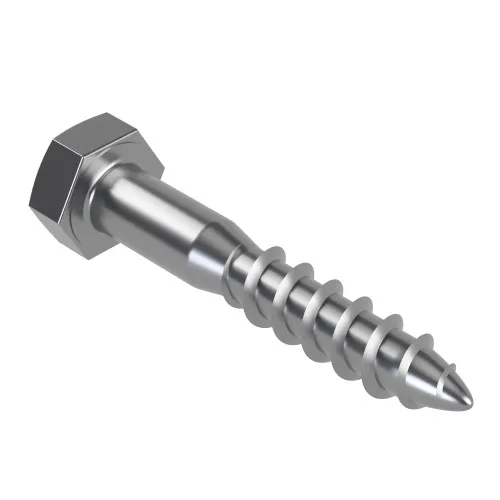

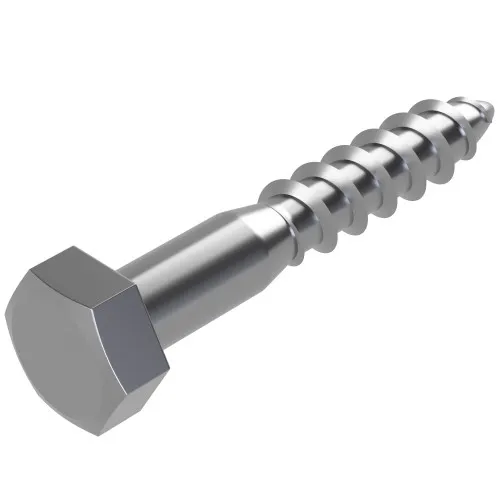

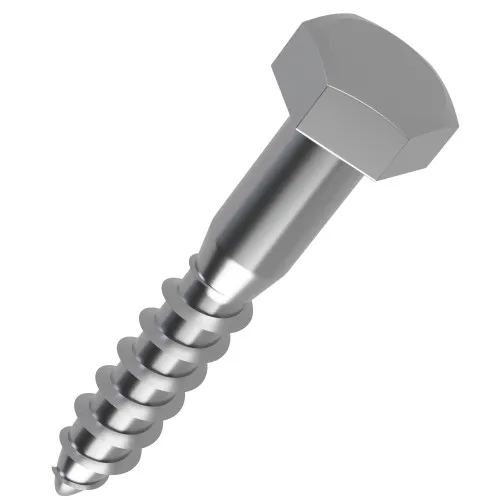

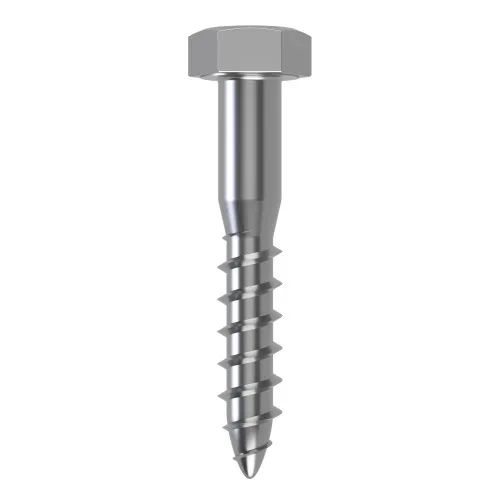

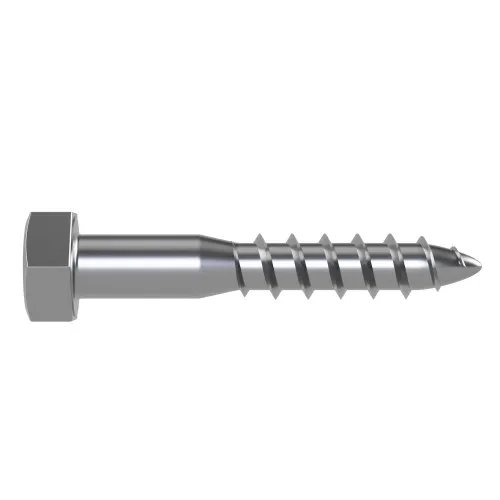

10mm x 110mm Coach Screw (DIN 571) | Marine Grade A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £2.04 | £2.45 |
| 50 - 99 | £1.84 | £2.21 |
| 100 - 499 | £1.66 | £1.99 |
| 500 - 999 | £1.53 | £1.84 |
| 1000 + | £1.41 | £1.69 |
£2.45 / each
.png)
Product Specification
| Size | 10mm |
| Length | 110mm |
| Head Height | 7mm |
| Thread Length | 66mm |
| Material | A4 Stainless Steel |
| Across Flats | 17mm |
| Shank Diameter | 10mm |
| Standard | DIN 571 |
Frequently Bought Together
Total Price: £0.00
M10 x 110mm Coach Screw DIN 571 | A4 Stainless Steel
This 10mm coach screw is sized at 10mm x 110mm and manufactured to DIN 571, giving installers a clear specification for structural timber assemblies, brackets and support plates. It is particularly useful for coastal timberwork, marine-adjacent joinery and exposed outdoor structures where a 10mm coach screw needs a clear measurable specification.
Marine grade A4 stainless steel is well suited to wet, coastal and high exposure locations where stronger corrosion resistance is needed around timber frameworks. The pointed end helps the fixing start cleanly while the hex head allows greater torque than a traditional countersunk wood screw. The 10mm diameter gives a balanced option for everyday joinery, fencing and support frame installation.
Common Applications
- Indoor joinery and commercial fit-out projects
- Timber rails, battens and backing blocks
- Marine-adjacent decking, posts and timber rails
- Utility rooms, plant rooms and service areas

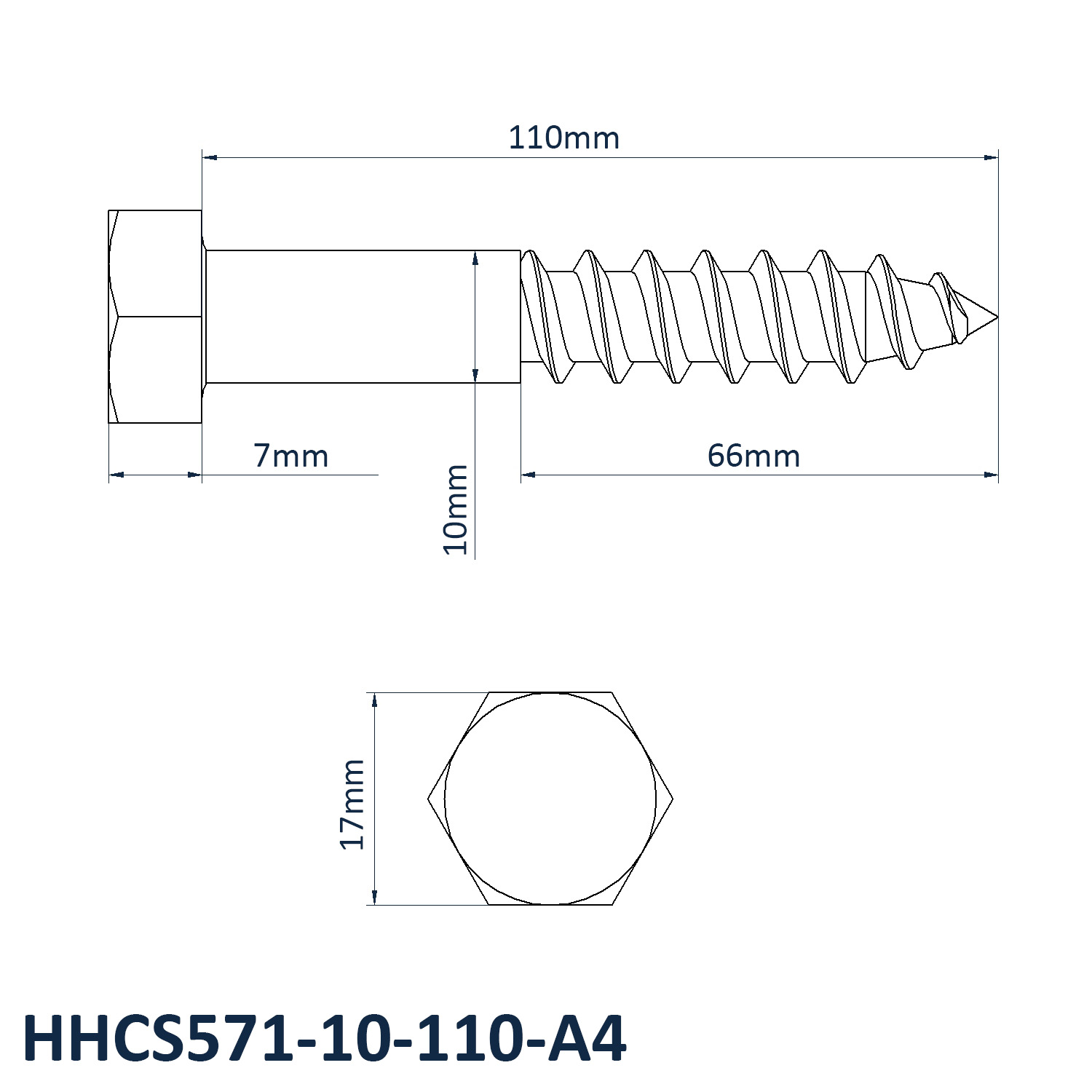

M10 x 110mm Coach Screw Dimensions
- Size: 10mm
- Length: 110mm
- Across Flats: 17mm
- Head Height: 7mm
- Thread Length: 66mm
- Shank Diameter: 10mm
- Material: A4 Stainless Steel
- Standard: DIN 571
Coach Screw Buying Guide
Check the screw size, material grade and installation environment before ordering. The coach screw guide gives extra help for selecting the correct length and finish. Click here to read our coach screws guide.
Explore the full DIN 571 Coach Screws range and use our coach screw guide when comparing sizes, pilot holes and applications.
