10mm x 130mm Coach Screw (DIN 571) | Marine Grade A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £2.44 | £2.93 |
| 50 - 99 | £2.20 | £2.64 |
| 100 - 499 | £1.98 | £2.38 |
| 500 - 999 | £1.83 | £2.20 |
| 1000 + | £1.68 | £2.02 |
Product Specification
| Size | 10mm |
| Length | 130mm |
| Head Height | 7mm |
| Thread Length | 78mm |
| Material | A4 Stainless Steel |
| Across Flats | 17mm |
| Shank Diameter | 10mm |
| Standard | DIN 571 |
Frequently Bought Together
Total Price: £0.00
M10 x 130mm Coach Screw DIN 571 | A4 Stainless Steel
For heavier timber fixing work, this M10 x 130mm coach screw offers A4 Stainless Steel construction, a 78mm thread and a 10mm shank diameter to support a firm mechanical hold in prepared timber. The A4 stainless steel finish gives this M10 x 130mm coach screw a focused role in heavy duty garden buildings.
Marine grade A4 stainless steel is well suited to wet, coastal and high exposure locations where stronger corrosion resistance is needed around timber frameworks. When fitted into a correctly sized pilot hole, the screw can deliver a secure fixing with reduced risk of timber splitting. The 10mm diameter gives a balanced option for everyday joinery, fencing and support frame installation.
Common Applications
- Marine-adjacent timber assemblies where the right grade is selected
- Boardwalks, pontoons and external timber fixtures
- Marine-adjacent decking, posts and timber rails
- Replacement of corroded coach bolts or wood screws

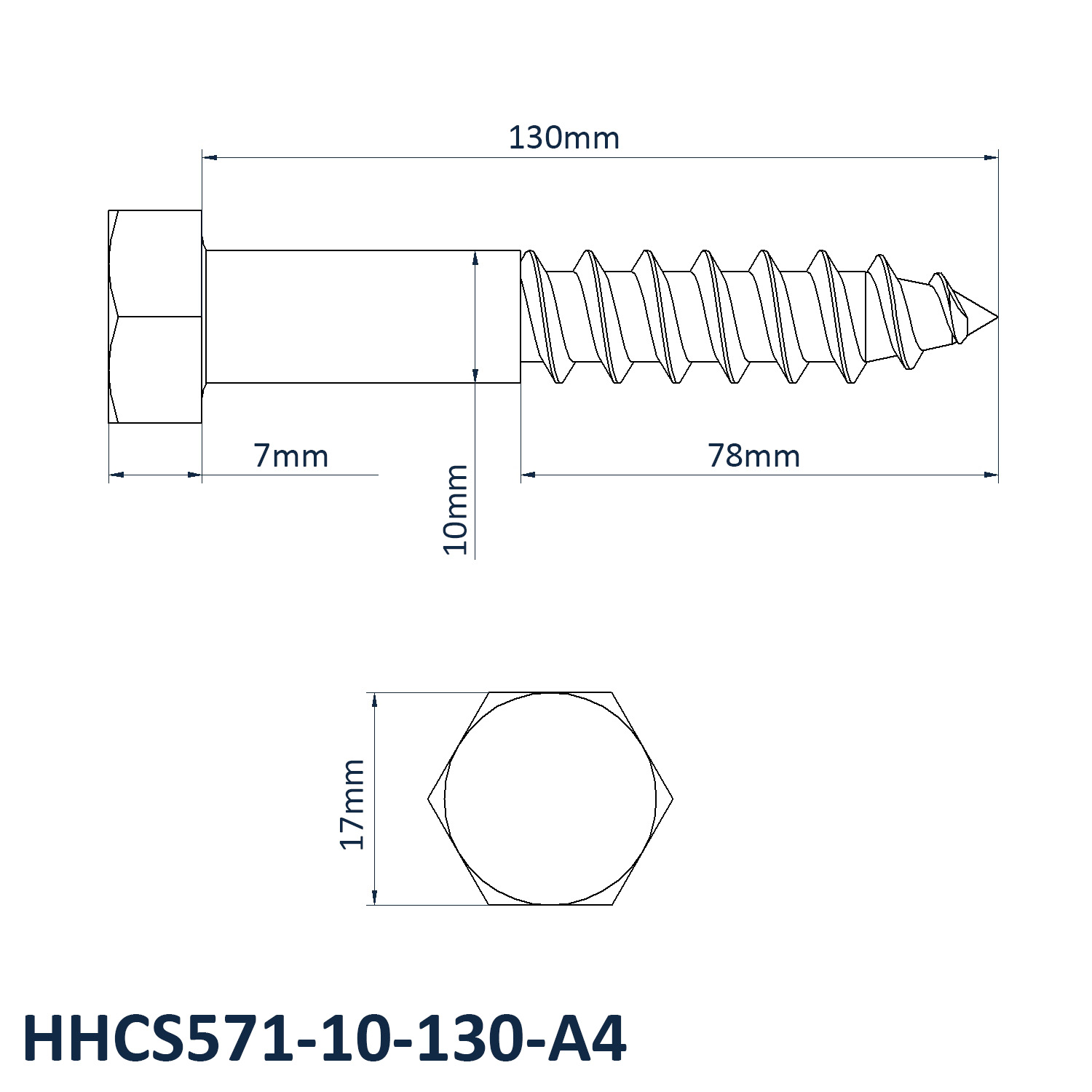

M10 x 130mm Coach Screw Dimensions
- Size: 10mm
- Length: 130mm
- Across Flats: 17mm
- Head Height: 7mm
- Thread Length: 78mm
- Shank Diameter: 10mm
- Material: A4 Stainless Steel
- Standard: DIN 571
Coach Screw Buying Guide
Use washers where the timber surface needs extra load spread or a cleaner finished appearance. The correct washer can help reduce marking beneath the hex head. Click here to read our coach screws guide.
Browse the complete Coach Screws DIN 571 range and visit our coach screws blog guide for installation guidance.
